Compatible for Honda Civic 1989-2000 Height Adjustable Coilover Suspension Kit Lowering Kit

This MaXpeedingRods part is suitable for Honda applications where specified. Always check part number, year, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Ma Xpeeding Rods-B2 series(also called Ma Xpeeding Rods-SNA) coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles),which offers you a lowered stance, improved performancefor your daily use vehicle.

Application Compatible For Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)Compatible For Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only(ED8\ED9\EE6\EE8\EF6\EF7\EF8)Compatible For Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)Compatible For Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only Compatible For Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)Compatible For Acura Integra 1990 -1993 DA DB Rear fork type bracket model only Compatible For Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only Please note: for some vehicles, you will need sleeves and washers that are already included in our package.Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

Specifications Front and Rear top mount: rubber

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 5 kg/mm (280 lbs/in)

Spring length Front: 180mm

Spring length Rear: 180mm

Adjustable height: lowering 1-3inch

Coilover overall length Front: 365mm-410mm

Coilover overall length Rear: 435mm-480m

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: red body with black spring

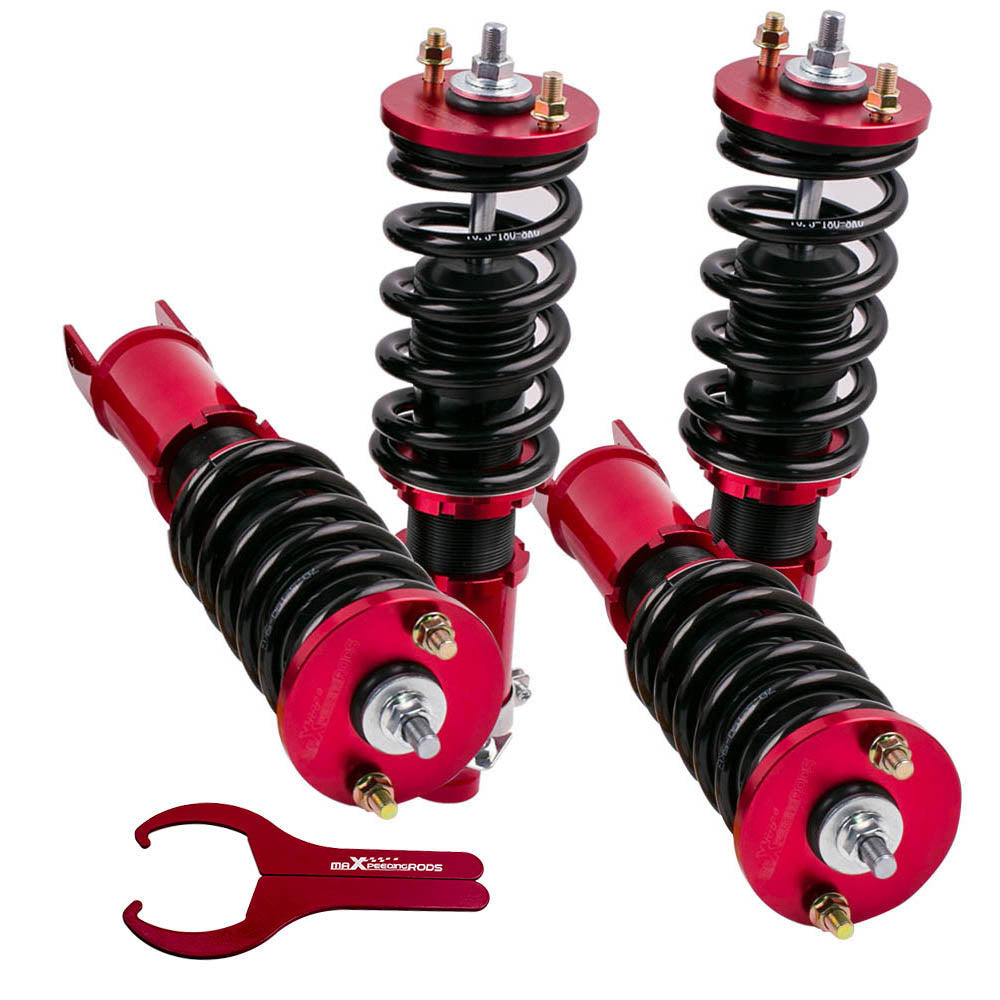

Package included Complete coilovers assembly 2 front and 2 rear

A pair wrench for height adjustment

Dimension Package dimension : 71*51*21

Weight: 22260g

Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

3. Twin-Tube structure allows sufficient stroke within the shock absorber.

4. Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation.

5. Separate height adjustment does not affect damper stroke.

6. Height can be adjusted with coilovers installed on the vehicle.

7. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

8. Height Adjustment tools included.

9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

10. Steel shock bodies with special surface treatment to improve the durability.

11. Full rebuildable.

Please note For some vehicles, you will need sleeves and

washers that already included in our package.Warranty: one year warranty for any manufacturing defect
