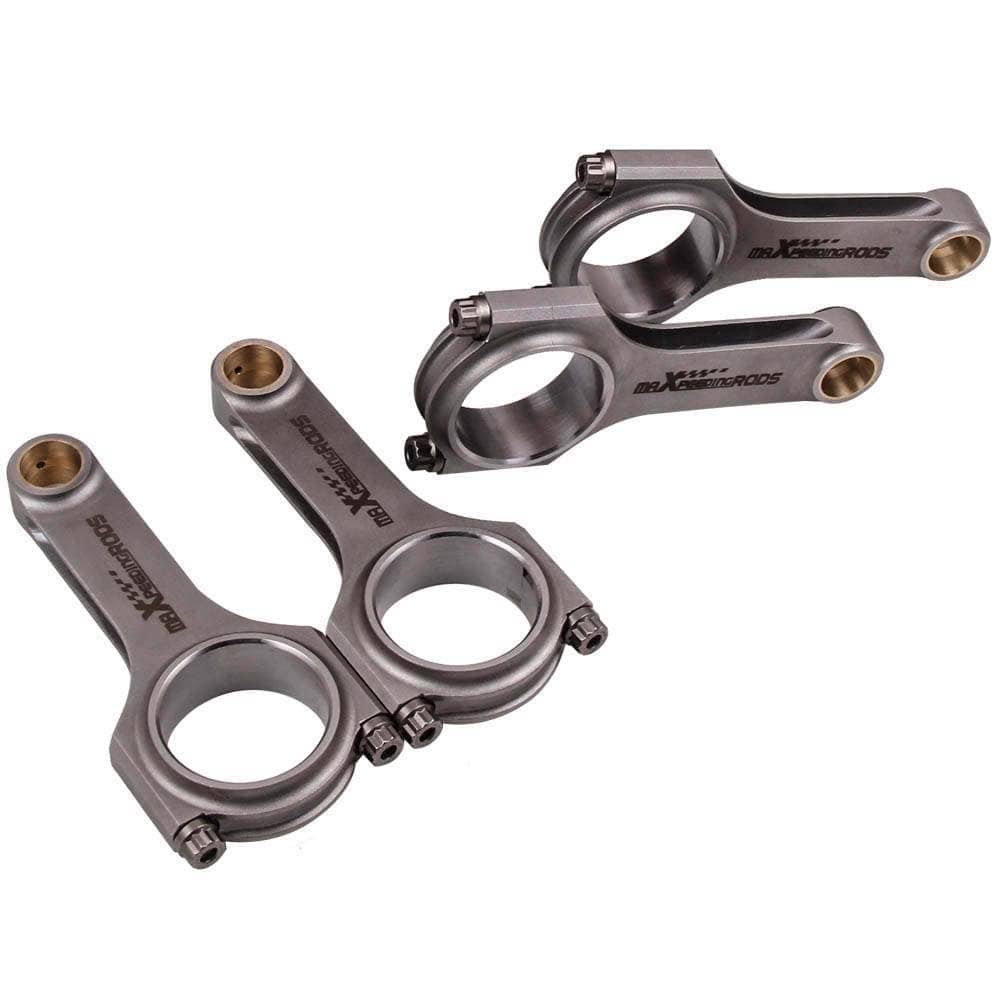

Compatible for Honda S2000 F20C H Beam Connecting Rod 4340 Steel Conrod Con Rods ARP Bolts

This MaXpeedingRods part is suitable for Honda applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Honda S2000 F20CSpecificationsTÜV Certification Con Rods Type: Forged 4340 aircraft chrome moly quality steel for racingH-beam Conrods Quantity: 4 Pieces a set Bolts: Including Genuine ARP 2000 bolts Please note: Extra cost for upgrading to ARP L19 bolts Bolts Size: 3/8"Tolerance: Balanced to +/- 1 gram in set Piston Bolt Hole: +-4/1000mm Power: 600~800HPStrength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM Top acceleration: 7000-9000rpm warranty: one year warranty for any manufacture defect Dimensions Center to center length: 153mm Big end diameter: 51mm Small end diameter: 23mm Big end width: 23.8mm Small end width: 23.8mm Features- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

100% X-rayed, sonic tested and magnafluxed

Multi-stage heat treated

Shot peened to relieve stress

Come with the bronzed bushing suitable for the floating piston pin Please note- Professional installation is highly recommended (No Instruction Included)

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
