Compatible for Isuzu Truck 4he1 8972089663 700716-5009s Turbocharger Turbo

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Chevrolet W3500 TiltmasterW3S0424.8L 1999-2003

suitable for Chevrolet W4500 TiltmasterW4S0424.8L 1999-2003

suitable for GMC W3500 Forward W3S0424.8L 1999-2003

suitable for GMC W4500 Forward W4S0424.8L 1999-2003

suitable for GMC W5500 Forward W5R0424.8L 2000-2003

suitable for GMC W5500 Forward W5S0424.8L 2003-2003

suitable for Isuzu NPR Base4.8L 1997-2004

suitable for Isuzu NQR Base 4.8L 1997-2004OE-/part number700716-1,700716-0001,700716-5001S,

700716-2,700716-0002,700716-5002S,

700716-3,700716-0003,700716-5003S,

700716-4,700716-0004,700716-5004S,

700716-5,700716-0005,700716-5005S,

700716-6,700716-0006,700716-5006S,

700716-7,700716-0007,700716-5007S,

700716-9,700716-0009,700716-5009S,

8972089660, 8-97208-966-0,

8972089661, 8-97208-966-1,

8972089662, 8-97208-966-2,

8972089663, 8-97208-966-3,

8971894520, 8-97189-452-0,Specifications Turbo Model: For GT2560S,GT2560LS,TB28

Engine Code: 4HE1XS

Cooling Type: Water Cooling

Bearing Type: Journal Bearing

Thrust Bearing: 270 degree

Horse Power: Up to 170 hp

Turbo Type: Individual

Universal Fitment:No

Finish:Matte

Condition: 100% Brand New

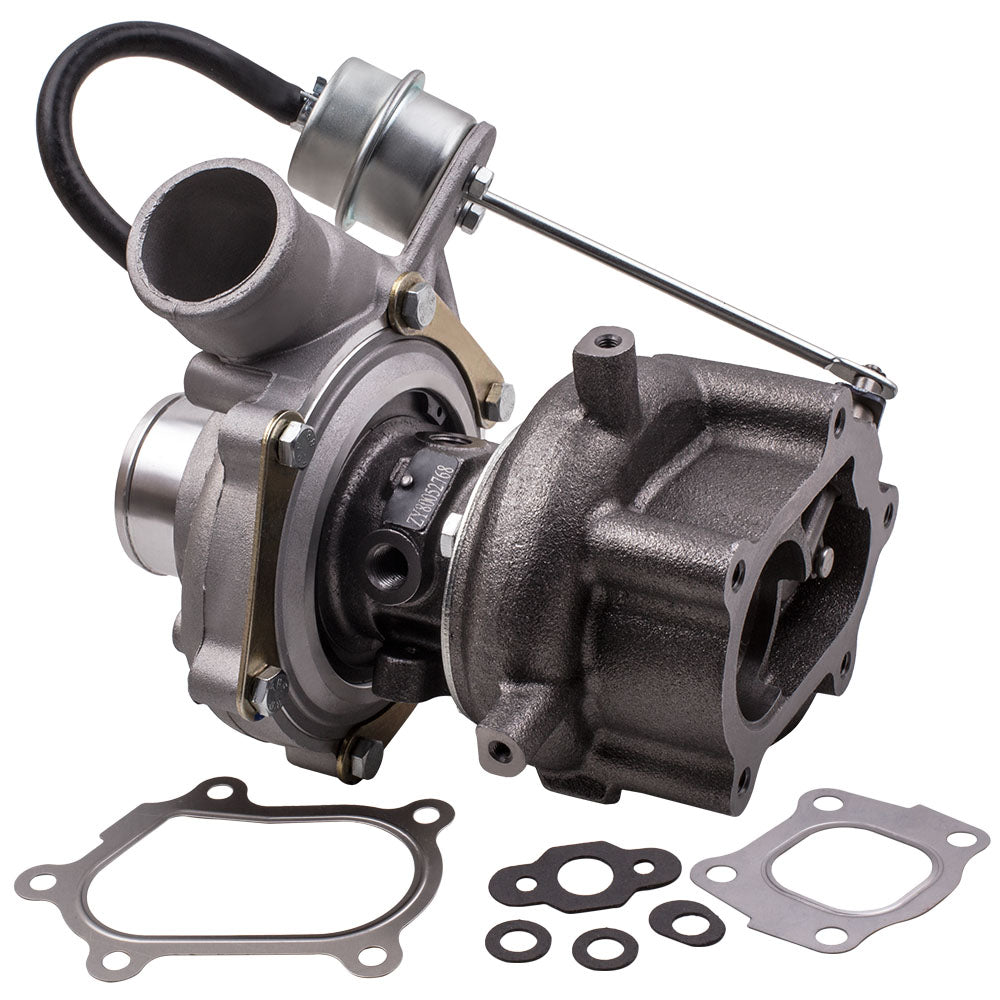

Accessories: You will get what you can see in the pictures exactly

Package Size:31x 28 x 24 cm

Package Weight: 7940g Package included1x Turbocharger

2x Flange gaskets

4x Oil/Water port gaskets Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
