Compatible for Nissan Skyline R32/R33/R34 2.0-2.5L RB20/25DET Engine Turbocharger RB20 RB25 Turbo

This MaXpeedingRods part is suitable for Nissan applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Directly bolt on for Nissan Skyline R32 R33 R34 2.0L-2.5L RB20DET RB25DET engine

*For some R33 models few modifications may be required(A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!

Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power. )Specifications Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: 6-Bolt Flange

Turbine Side:

Turbine Inducer Diameter: 64.4mm

Turbine Exducer Diameter: 47.9mm

Turbine Trim: 55.3

Turbine A/R: 0.63

Compressor Side:

Compressor Inducer Diameter: 52.7 mm

Compressor Exducer Diameter: 76mm

Compressor Trim: 48.1

Compressor A/R: 0.50

Oil Inlet: M12*1.25 2*M8*1.25 Oil Outlet: 2*M8*1.25 Water: M18*1.5 Internal Wastegate: Yes

Bearing: Wet Float

Thrust Bearing:270 degree

Cooling Type: Water + Oil cooling

Turbo Type: Individual

Oil Inlet: M12*1.25

Side hole: M8*1.25

Oil Return: 18

Side hole:M8*1.25

Center-center: 50.8

Water Hole: M18*1.5

Horse Power: Boost Horse Power up to 500BHP

Condition:New

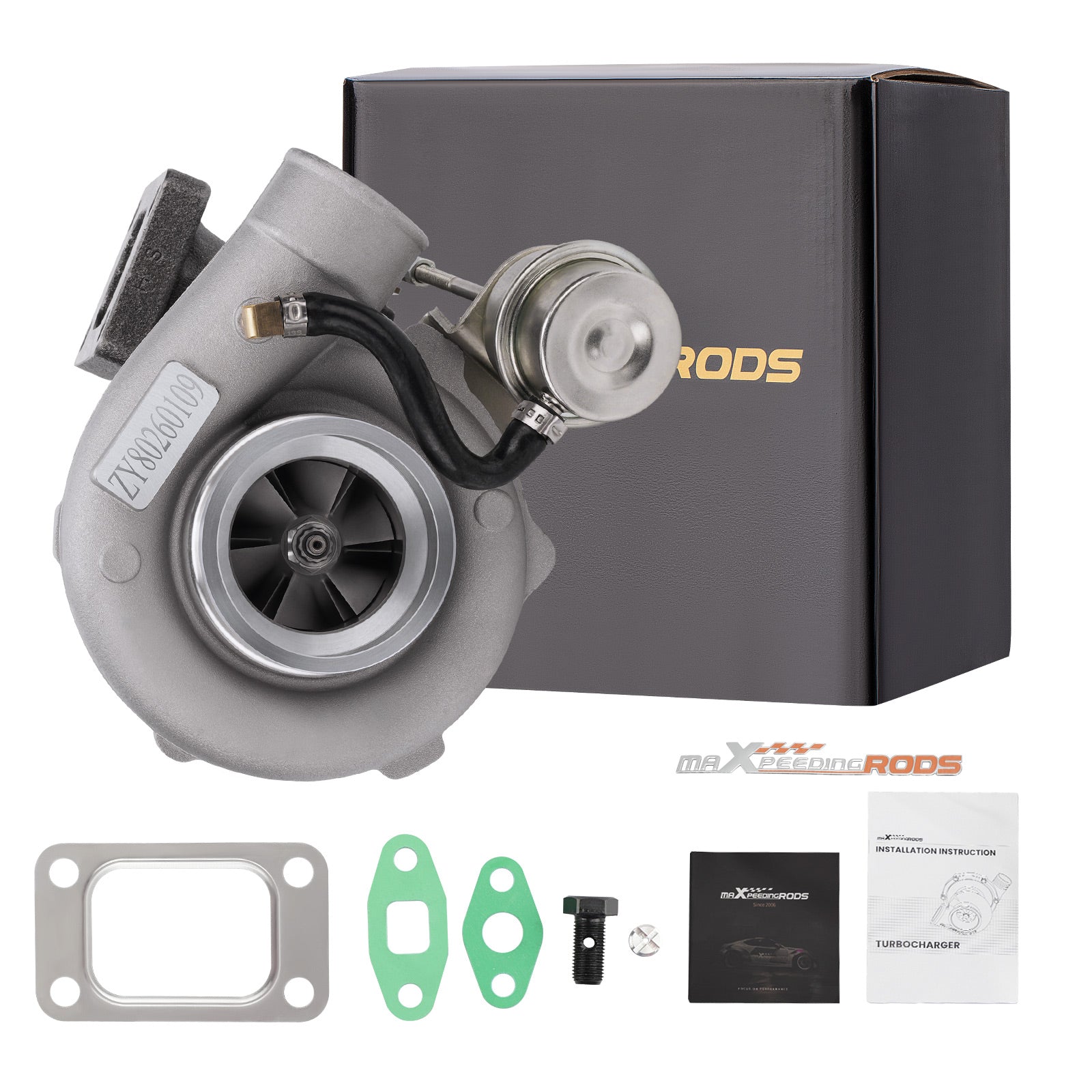

Accessories: You will get exactly as picture shown

Package Size:26x25x23 cm

Package Weight: 7920g Package included1x Turbocharger

1x Flange gaskets

2x Oil/Water port gaskets

1x Bolt

1x Manual

1x Brochure

1x Sticker Features*Product Material

1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!Warranty: one year warranty for any manufacturing defect
