Compatible for Seat Leon compatible for Cupra R compatible for Audi S3 1.8 L APX K04-020 225HP 5304-970-0020 Turbocharger

This MaXpeedingRods part is suitable for Audi, Seat applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications, and Compatibility

Application Suitable for Audi S3 1.8L P APY / AMK Engine 154KW/210HP 1999 - 2003

suitable for Audi TT 1.8L P APX Engine 165KW/225HP 2002

Suitable for Seat Leon suitable for Cupra R AMK Engine 154KW/210HP 2002 -2005

suitable for Audi TT QUATTRO 1.8L P APX Engine 165KW/225HP 1999

Please note:

Don't suitable for suitable for Audi A3 with BAM engine

Don't suitable for suitable for Audi TT with AJQ, APP, AUM, AUQ, ARY engine.

This turbo does not have temp sensor hole.OE-/Part number53049880022，53049700022，

53049880020，53049700020，

06A145704P，06A145704PX，06A145704PV，

06A145704M，06A145704MX，06A145704MV，

06A145702，Specifications Turbo Model：K04-022

Engine Code：AMK, AMK APX

Cooling Type: Water+Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower:210HP/225HP

Actuator Type: Vacuum Actuator

Turbo Type: Individual

Universal Fitment: No

Finish: Matte

Package Size:26x 25 x 23 cm

Package Weight: 6300g

Condition: Brand New

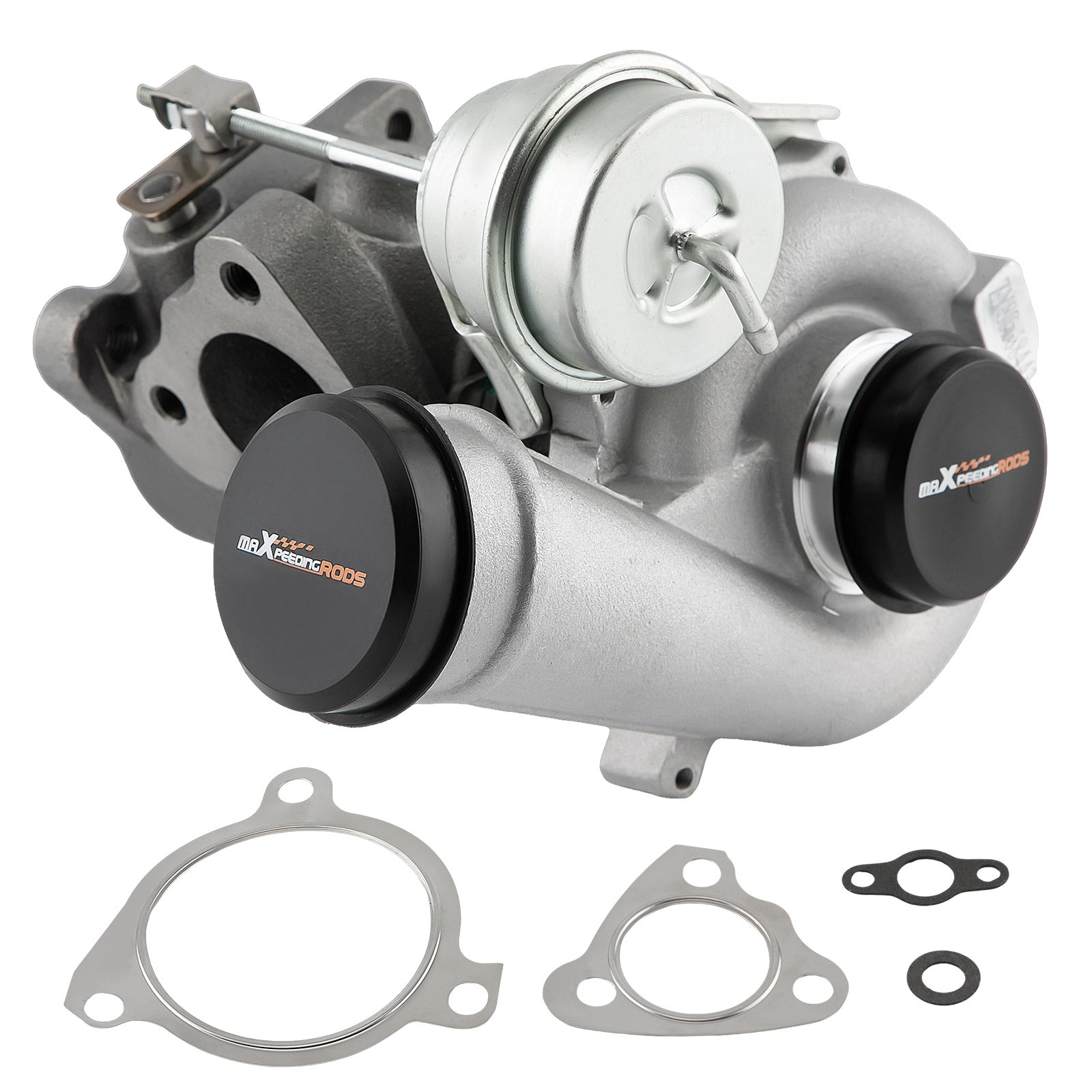

Accessories: You will receive the parts exactly as shown in the picture above Package included1x Turbocharger

2x Flange Gaskets

2x Oil/Water Port Gaskets

1x Manual

1x Brochure

1x Sticker Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
