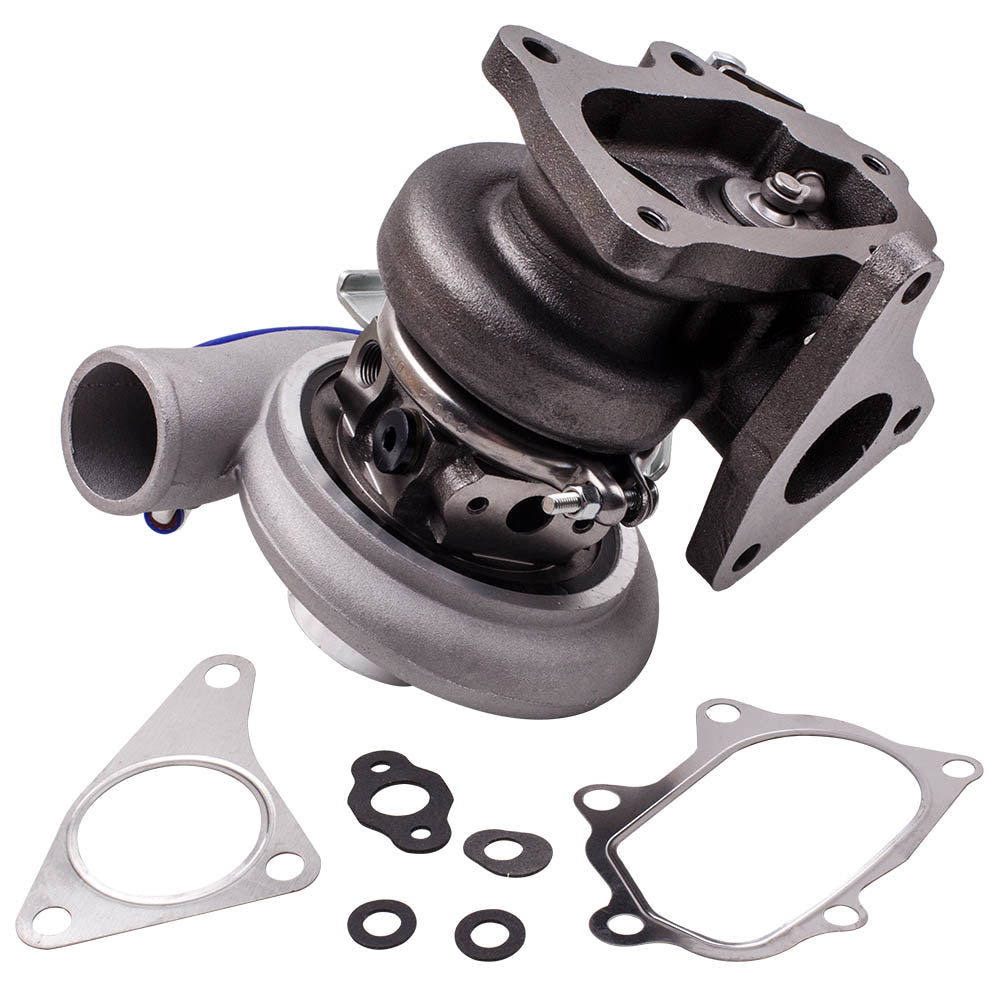

Compatible for Subaru Impreza STI EJ20 EJ25380HP TD05 Turbo 2002 - 2006 7cm^2 Upgraded Turbocharger

This MaXpeedingRods part is suitable for Subaru applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction It's an upgraded Turbo for advanced drivers. Our TD05 20G Turbo customizes a unique specification that replaces the TD04 for a TD05H turbine wheel. Furthermore, MXR also enlarges the turbine housing area to 7 square cm to improve the exhaust efficiency. so expect to gain more power than stock turbo.Application TD05 20G Upgraded Turbo suitable for Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006

*Notice: All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts,fixed screws etc.) is required.Specifications Exhaust Outlet Flange:5-Bolt Flange

Exhaust Intlet Flange:3-Bolts Flange

Turbine Side:

Turbine Trim: 76.4

Turbine Housing: 7cm²

Turbine Inducer Diameter:56mm

Turbine Exducer Diameter: 48.96mm

Compressor Side:

Compressor Trim: 59.8

Compressor Inducer Diameter: 52.6mm

Compressor Exducer Diameter:67.9mm

Compressor Housing Inlet OD: 57.8mm

Oil Feed: M10*1.5

Oil Drain: 2*M6*1.0

Water In/Out: M14*1.5

Turbine housing: 7cm²

Compressor housing inlet OD: 57.8mm,ID:53.62mm

Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing Type: Wet Float/Journal Bearing

Cooling Type: Water + Oil cooled

Wastegate：With Wastegate

Turbo Model: TD05 20G

Thrust Bearing: 270 degree

Hosepower: Up to 420 HP

Actuator: 0.94-2.3 Bar

Turbo Type:Individual

Universal Fitment: No

Finish: Matte

Condition: 100% Brand New

Package Size:30x 28x 24 cm

Package Weight: 7650g Package included1x Turbocharger

2x Flange gaskets

4x Oil/Water port gaskets Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.Advanced Actuator Tester/Programmer Note* Please confirm your original fitment before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
