Compatible for Toyota Corolla 1988-1999 E90 E100 E110 AE92-AE111 TCB 24 Ways Damper Coilover Lowering Kit

This MaXpeedingRods part is suitable for Toyota applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.Application Suitable for Toyota Corolla E901987–1992

suitable for Toyota Corolla E100 1991–1998

suitable for Toyota Corolla E1101995-2002

suitable for Toyota Corolla AE921987-1991

suitable for Toyota Corolla AE101 1992-1998

suitable for Toyota Corolla AE111 1988-2002 Specifications Top mount: Front camber plate; rear pillow ball

Damping: 24 levels rebound damping adjustable

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Adjustable height: lowering 1-3 inch

Shock type: Twin tube

Spring Preload: 7-10 mm

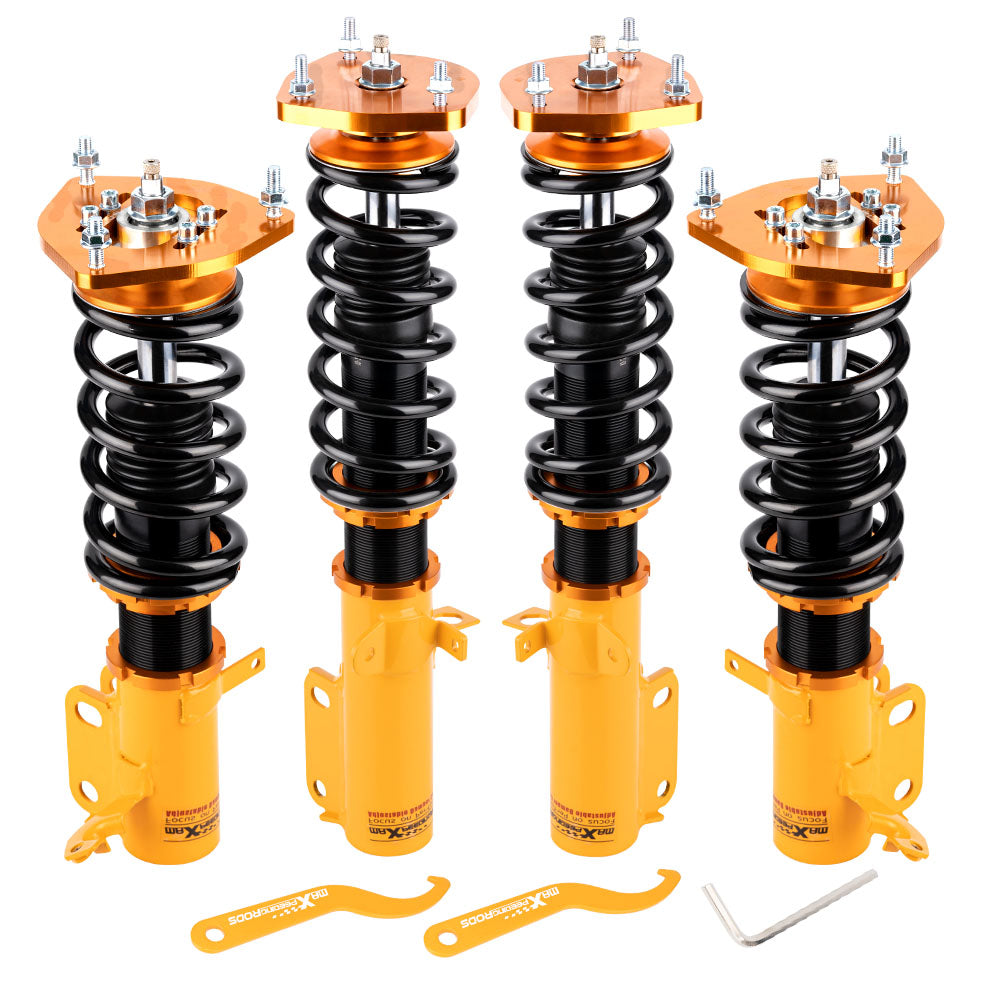

Color: gold body with black spring Package included Complete coilover assembly kit for front and rear

A pair wrench for height adjustment Dimension Package dimension : 63*51*21

Weight: 26460g Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3.Camber plate top mounts help to eliminate the need for a separate camber kit.

4.Twin-Tube structure allows sufficient stroke within the shock absorber.

5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.

7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

9.Steel shock bodies with special surface treatment to improve the durability.

10. full rebuildable Notice Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
