Billet Turbo Charger Cartridge Core compatible for Ford Transit 2.2 TDCi 114KW 2011- 787556

This MaXpeedingRods part is suitable for Ford applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application:

Suitable for Mazda BT50 2.2L 2011-2021

Suitable for Ford Ranger (TKE) 2.2TDCI 4x4 110KW ENQJ, GBVAJQJ 2011-2025

Suitable for Ford Ranger (TKE) 2.2TDCI 110KW ENQJ, GBVAJQJ 2011-2025

Suitable for Ford Ranger (TKE) 2.2TDCI 118KW GBVAJQJ, T22DD0P 2015-2025

Suitable for Ford Ranger (TKE) 2.2TDCI 4x4 118KW GBVAJQJ, T22DD0P 2015-2025

Suitable for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014

Suitable for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 92KW CYRA 2011-2014

Suitable for Ford Transit Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.2TDCI RWD 100KW USRA, USRB 2011-2014

Suitable for Ford Transit Box (FA_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014

Suitable for Ford Transit Box (FA_ _) 2.2TDCI RWD 92KW CYRA 2011-2014

Suitable for Ford Transit Box (FA_ _) 2.2TDCI 4x4 92KW CYRB, CYRC 2011-2014

Suitable for Ford Transit Box (FA_ _) 2.2TDCI RWD 100KW USRA, USRB 2011-2014

Suitable for Ford Transit Box (FA_ _) 2.2TDCI RWD 114KW CVRA, CVRB, CVRC 2011-2014

Suitable for Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 74KW DRRA, DRRB, DRRC 2011-2014

Suitable for Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 92KW CYRA 2011-2014

Suitable for Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2TDCI 4x4 92KW CYRB, CYRC 2011-2014

Suitable for Ford Transit Platform/Chassis (FM_ _, FN_ _, FF_ _) 2.2TDCI RWD 114KW CVRA, CVRB, CVRC 2011-2014

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 74KW DRR5 2013-2018

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 99KW UHR5 2013-2018

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018

Suitable for Ford Transit V363 Bus (FAD, FBD) 2.2TDCI AWD 114KW CV24, CVR5 2015-2018

Suitable for Ford Transit V363 Box (FCD, FDD) 2.2TDCI RWD 74KW DRR5 2013-2018

Suitable for Ford Transit V363 Box (FCD, FDD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018

Suitable for Ford Transit V363 Box (FCD, FDD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018

Suitable for Ford Transit V363 Box (FCD, FDD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018

Suitable for Ford Transit V363 Box (FCD, FDD) 2.2TDCI 4x4 114KW CV24, CVR5 2015-2018

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2TDCI RWD 74KW DRR5 2013-2018

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2TDCI RWD 92KW CYR5, USR6 2013-2018

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2TDCI 4x4 92KW CY24, CYR5 2013-2018

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2TDCI RWD 114KW CV24, CVR5, UYR6 2013-2018

Suitable for Ford Transit V363 Platform/Chassis (FED, FFD) 2.2TDCI 4x4 114KW CV24, CVR5 2013-2018

OEM/ PART NUMBER:

854800-0001, 854800-1, 854800, 787556-5017S, 787556-17,

787556-0017, 7875560017,787556-9017S, 787556-5016S, 787556-16,

787556-0016, 7875560016,787556-9016S, 787556-5022S, 787556-22,

787556-0022, 7875560022, BK3Q6K682PC, BK3Q-6K682-PC, BK3Q6K682PB,

BK3Q-6K682-PB, BK3Q6K682CB, BK3Q-6K682-CB, BK3Q6K682CC, BK3Q-6K682-CC

BK3Q6K682HA, BK3Q-6K682-HA, 1717628, 1719695, 1760759

Specifications:

Turbo Model: GTB1749VK

Cooling Type: Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Compressor Wheel: Billet Compressor Wheel

Horse Power: 114KW / 153HP

Balance: Twice balanced

Accessories: You will get exactly as shown in the picture above

Features:

Condition: 100% Brand New

Warranty: one year

Designed for comfortable use and best quality

For high security, longevity and original quality

Easy installation, bring maximum ride comfort

Replacement of the original item (safety, accuracy, service life and quality)

High-quality material for high durability and long service life

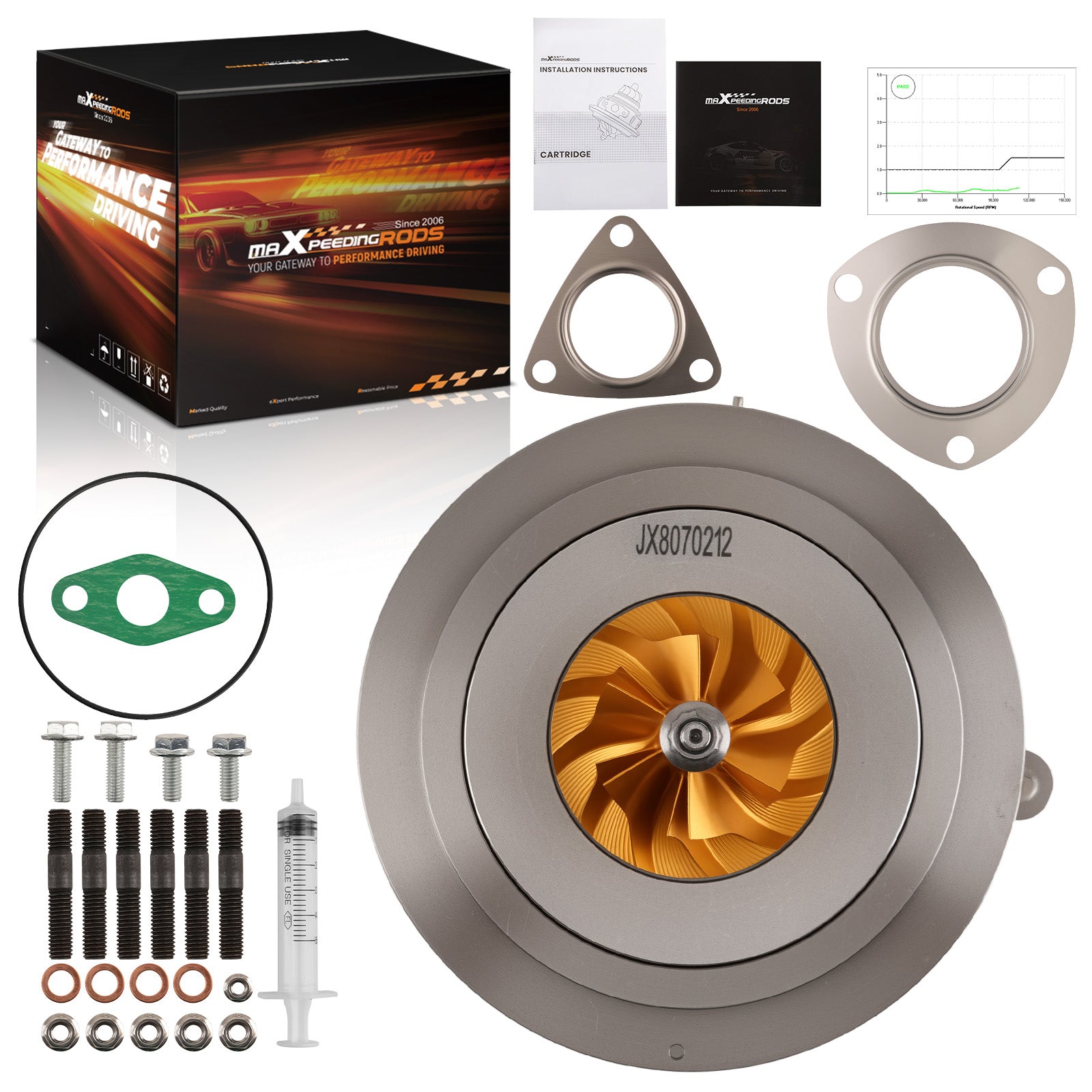

Package Included:

1x Turbo cartridge

1x Injector

2x Oil Gaskets

2x Flange Gaskets

1xO-Ring

6x Stud Bolts&Nuts

2x Oil / Water Port Gaskets

1x Brochure

1x Sticker

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasline , and the gasline air tightness.
