Application

Compatible for Nissan Patrol compatible for Datsun 280Z 280ZX Turbo L28

Specification

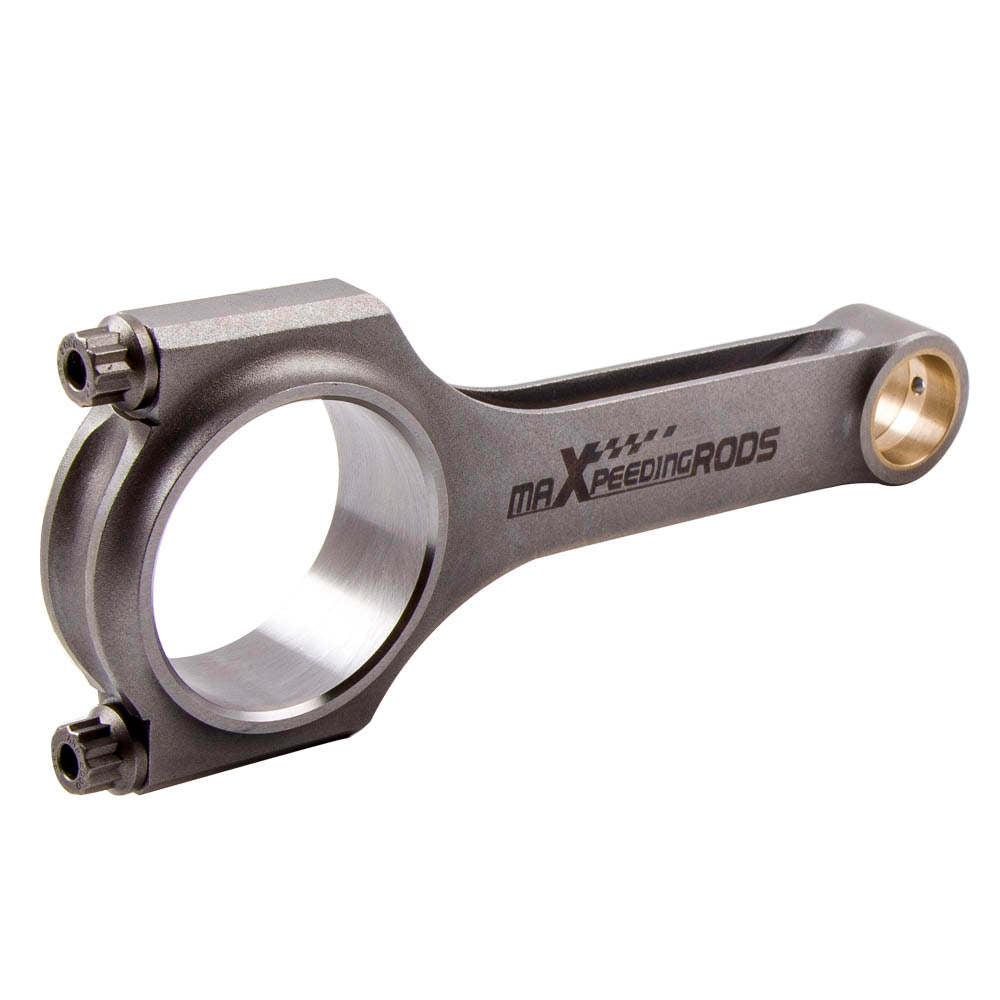

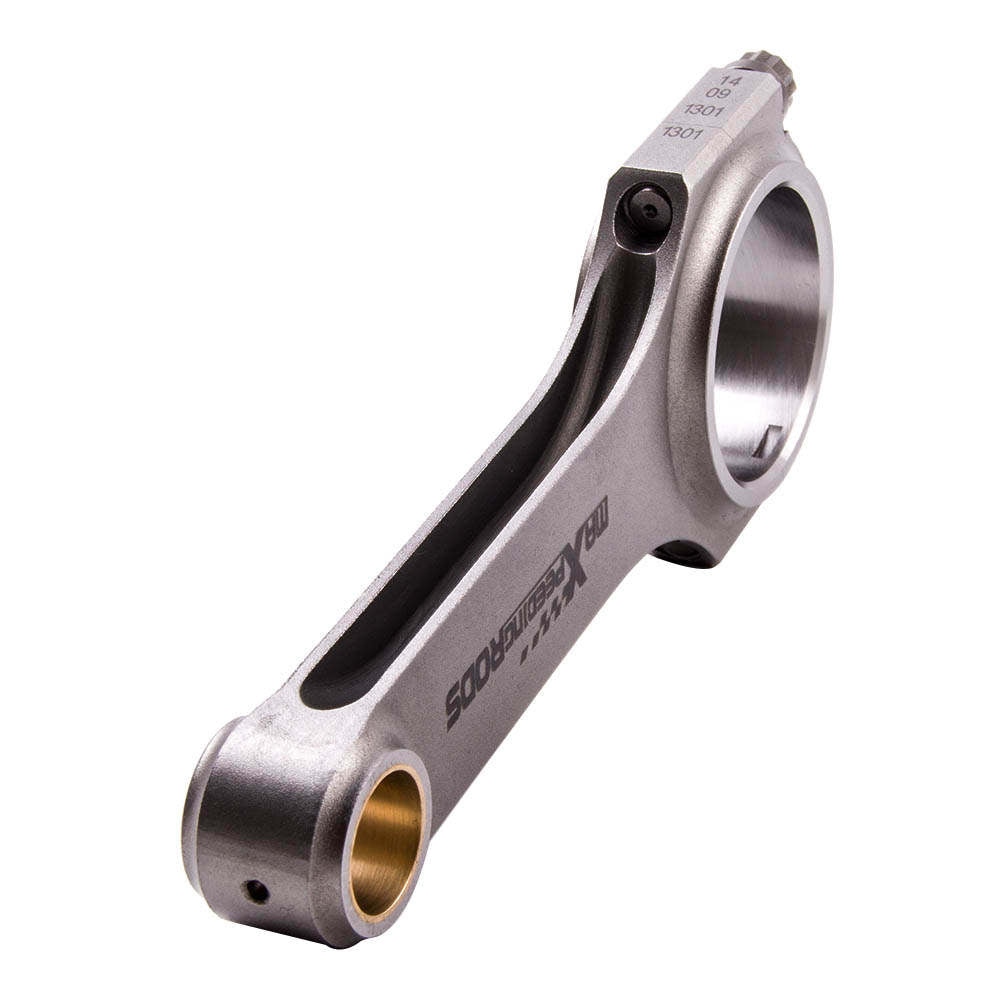

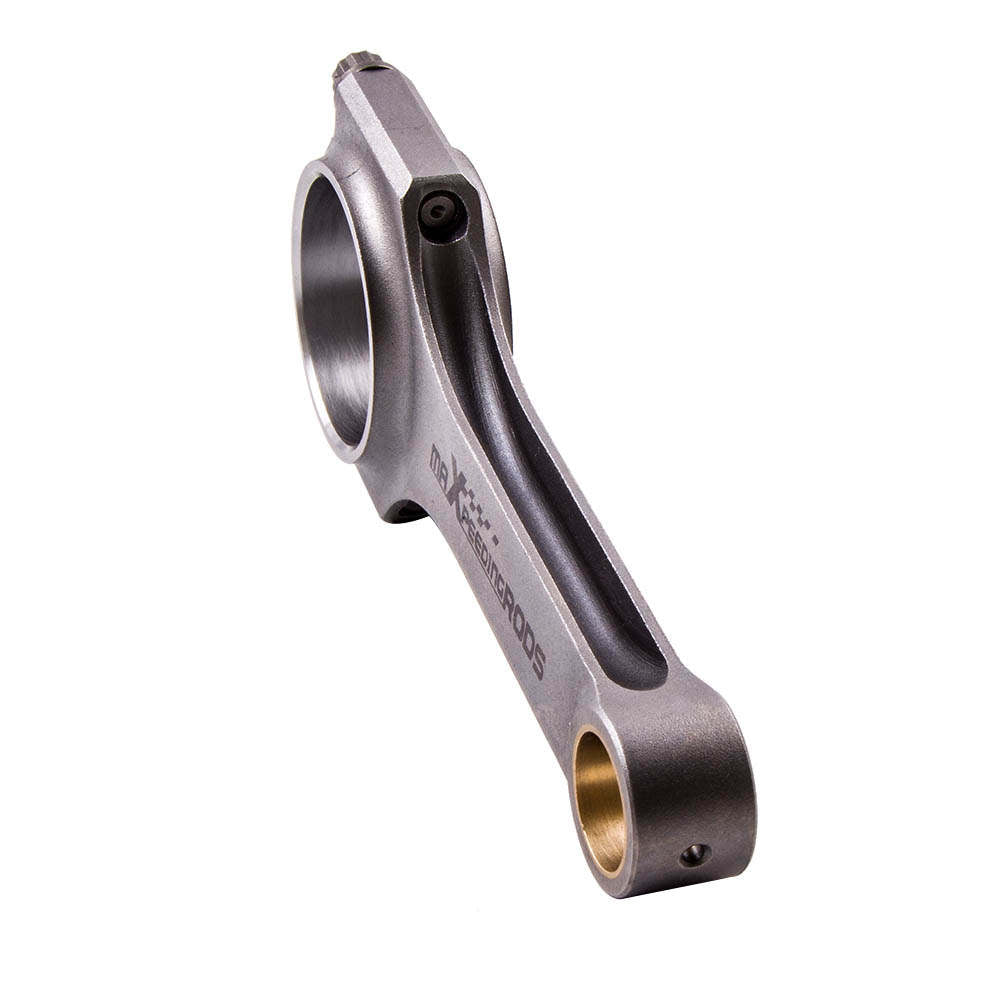

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600~800HP
Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000 rpm
warranty: two years warranty for any manufacturing defect

Dimensions

Center to center length: 130.2mm
Big end diameter: 53mm
Small end diameter: 21mm
Big end width: 26.8mm
Small end width: 23.85mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE
