Application

"Compatible for Nissan L24 Engine:
Compatible for Datsun 240Z 1970–1973
compatible for Nissan Cedric/Gloria 130 1970–1971
compatible for Nissan Cedric/Gloria 230 1971–1972
compatible for Datsun 240K (C110) 1972–1977
compatible for Datsun 240K-GT (C210) 1978–1981
compatible for Nissan Laurel C230 1979–1980
compatible for Nissan Laurel C31 (export) 1980–1984
Pin Type: Floating Pin Piston"

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
ClearancedFor Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

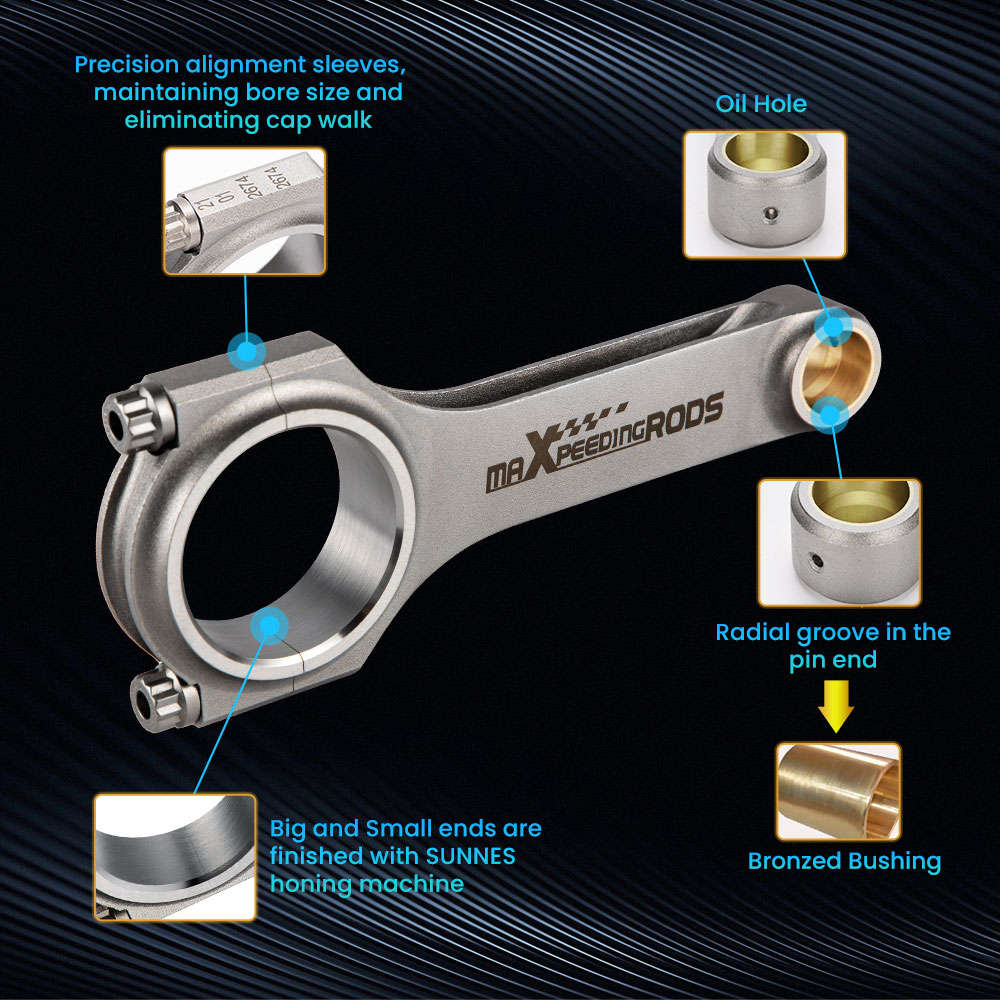

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

Package included

Quantity: Sold as a set of 6
Package Size: 28CM*20CM*14CM

Dimension

Connecting Rod Length Center to Center: 133.00mm/5.236"
Approximate Connecting Rod Weight:530g
Big End Bore Diameter: 53.00mm/2.087"
Pin End Bore Diameter: 21.00mm/0.827"
Big End Width: 26.80mm/1.055"
Small End Width: 23.90mm/0.941"

Feature

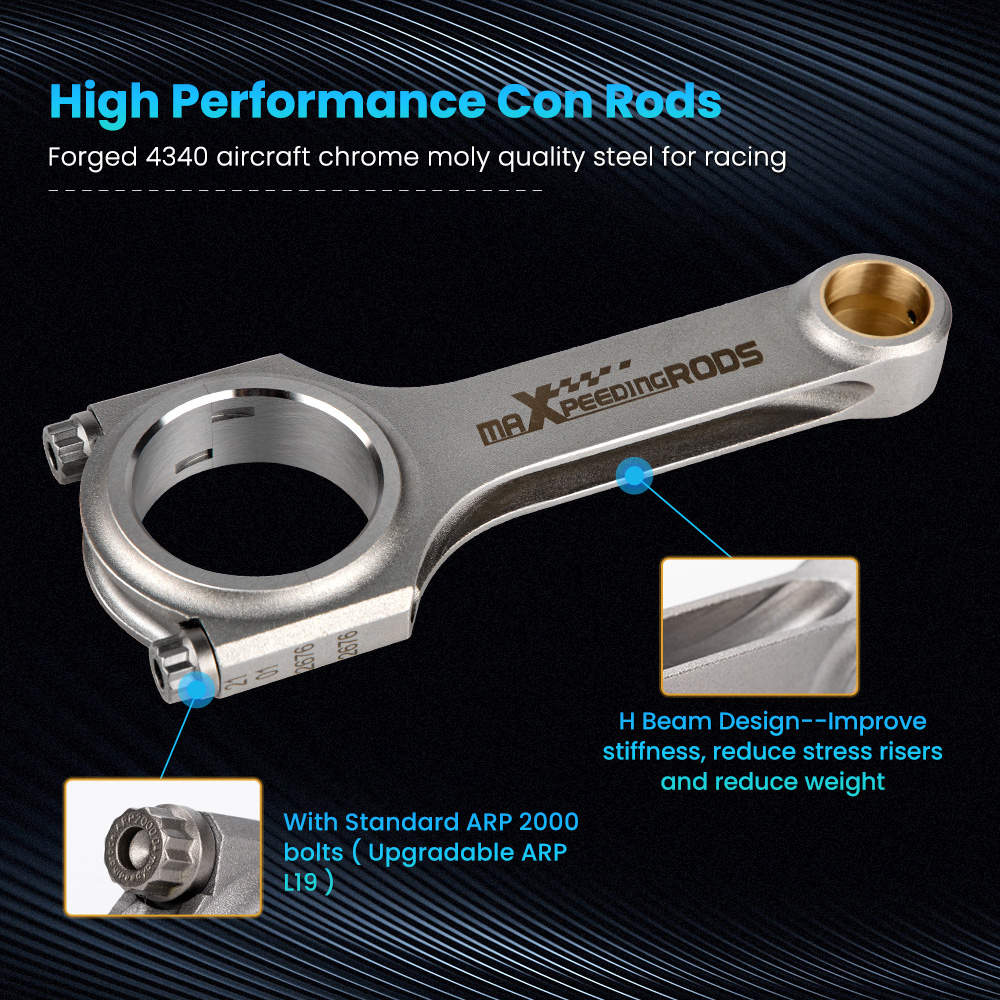

1.Premium 4340 Forged Steel & H-Beam Design (Built for High-Horsepower)
Engineered from aircraft-quality 4340 chromoly steel with a classic H-beam profile. Fully shot-peened and heat-treated to ensure maximum tensile and compressive strength. Perfect for high-load street and strip (1/4-mile drag) racing applications.
2.Genuine ARP 2000 Bolts Included (Optional ARP L19 Upgrade Available)
100% packed with authentic ARP 2000 12-point bolts boasting a 220,000 psi yield strength. Also offers an optional upgrade to 260,000 psi ARP L19 fasteners, completely eliminating rod-cap separation at extreme high-RPM loads.

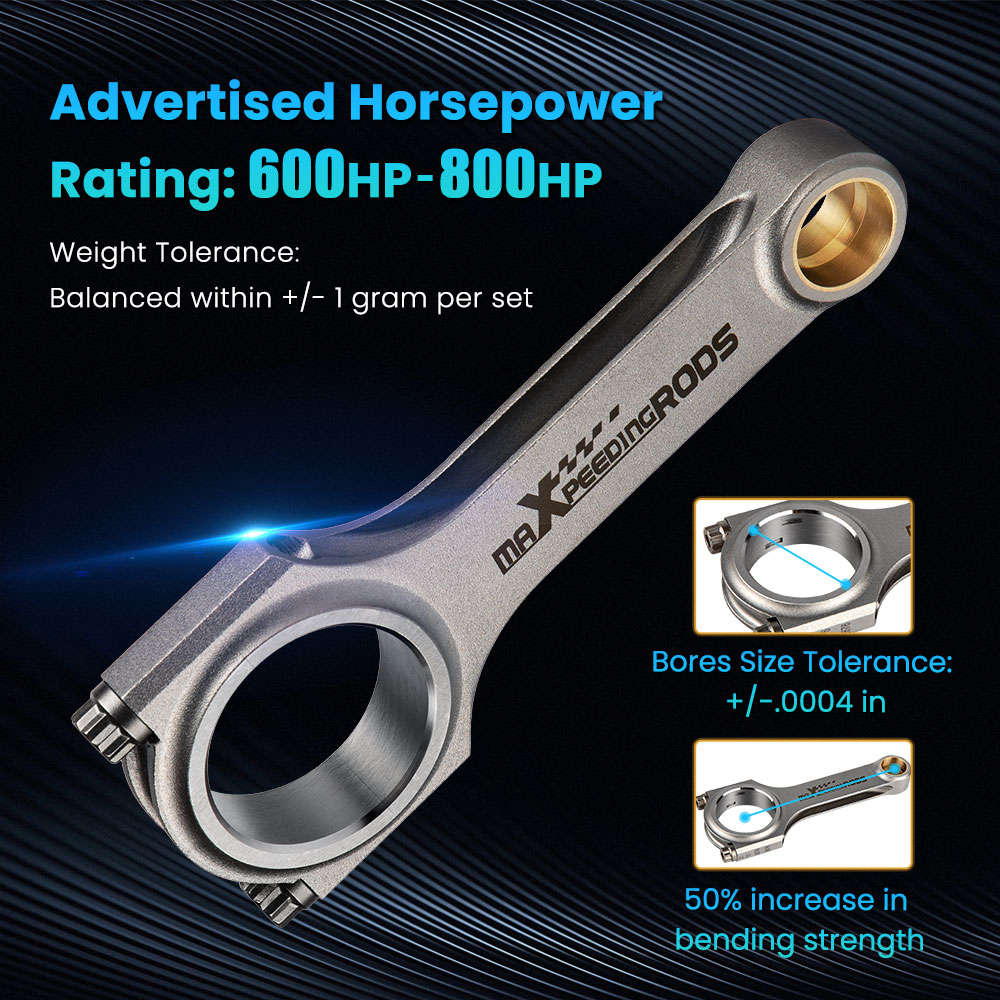

3.Factory-Balanced within ±1.0 Grams (Engineered for High-RPM Stability)
Every single set undergoes dynamic balancing at the factory to maintain a strict weight variance of less than 1.0 grams per set. This precise QC standard ensures smooth power delivery and minimizes harmful harmonic vibrations at high RPMs.

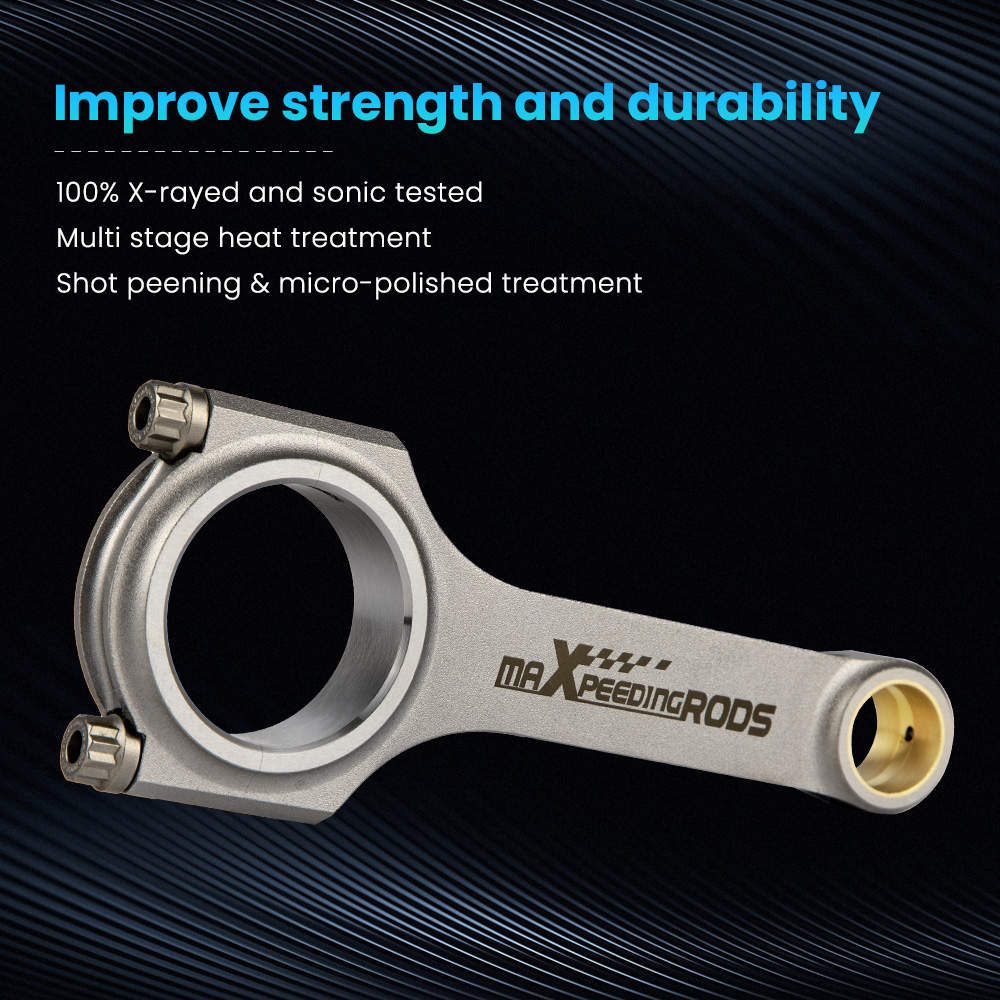

4.Triple Non-Destructive Testing & Floating Pin Style (Race Ready)
100% magnafluxed, X-rayed, and ultrasonically tested to guarantee compatible for zero internal flaws or cracks. Features a high-lubrication bronze bushing for floating-style wrist pins, making it fully compatible with premium aftermarket forged pistons.
5.TS16949 / IATF 16949 Certified Facility (Standardized Production Control)
This product is precision-manufactured in a facility certified to the TS16949 standard (Quality Management System for the automotive industry). This certification confirms that our components fully adhere to established automotive manufacturing standards regarding production, testing, and process workflows.

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
