Application

Compatible for Audi A3 1.8 20vT AGU/ARZ/ARX/AUM/AQA Engine:
Compatible for Audi A3 1996–2003

compatible for Audi S3 1.8 20vT APY AMK Engine:
Compatible for Audi S3 1999–2001

compatible for Audi S3 1.8 20vT BAM AEB Engine:
Compatible for Audi S3 2001–2003

compatible for Seat Ibiza 1.8T (AYP AQX) Engine:
Compatible for Seat Ibiza 1999–2002

compatible for Audi A4/A6 1.8 20vT (AEB ANB APU ARK) Engine:
Compatible for Audi A4 1995–2001
compatible for Audi A6 1997–2001

compatible for Audi TT Quattro 1.8T BAM AEB Engine:
Compatible for Audi TT Quattro 1998–2006

compatible for VW Golf 1.8T (GTi AGU ARZ) Engine:
Compatible for VW Golf GTi 1997–2003

compatible for VW Jetta, compatible for VW New Beetle Engine:
Compatible for VW Jetta 2001–present
compatible for VW New Beetle 2001–present

compatible for VW Passat 1.8T (AEB ANB ATW) Engine:
Compatible for VW Passat 1996–2000

compatible for VW Beetle 1.8T (AVC) Engine:
Compatible for VW Beetle 1999–2001

compatible for VW Bora 1.8T (AGU) Engine:
Compatible for VW Bora 1998–2005
Pin Type: Floating Pin Piston

Specification

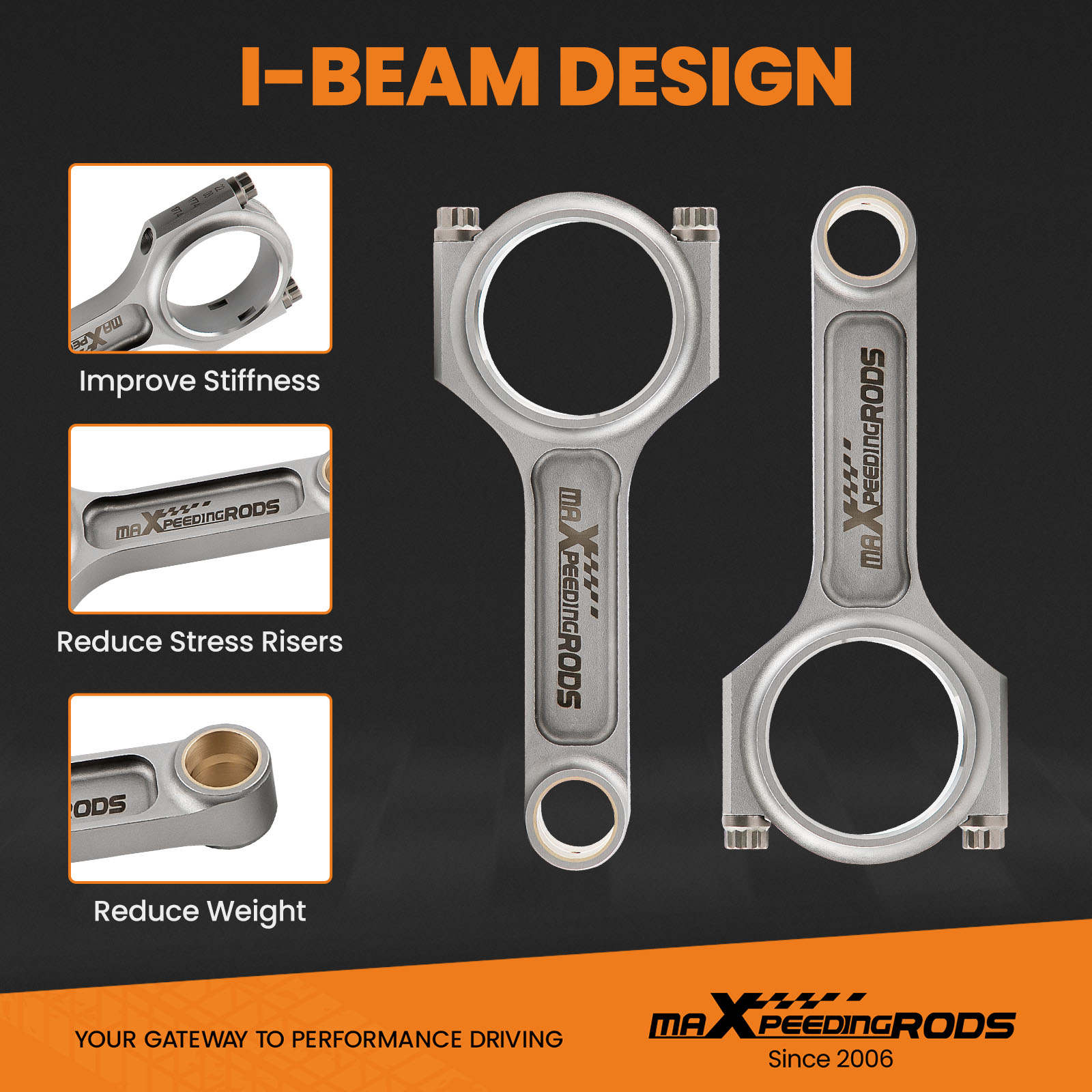

Beam Style: I-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
ClearancedFor Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

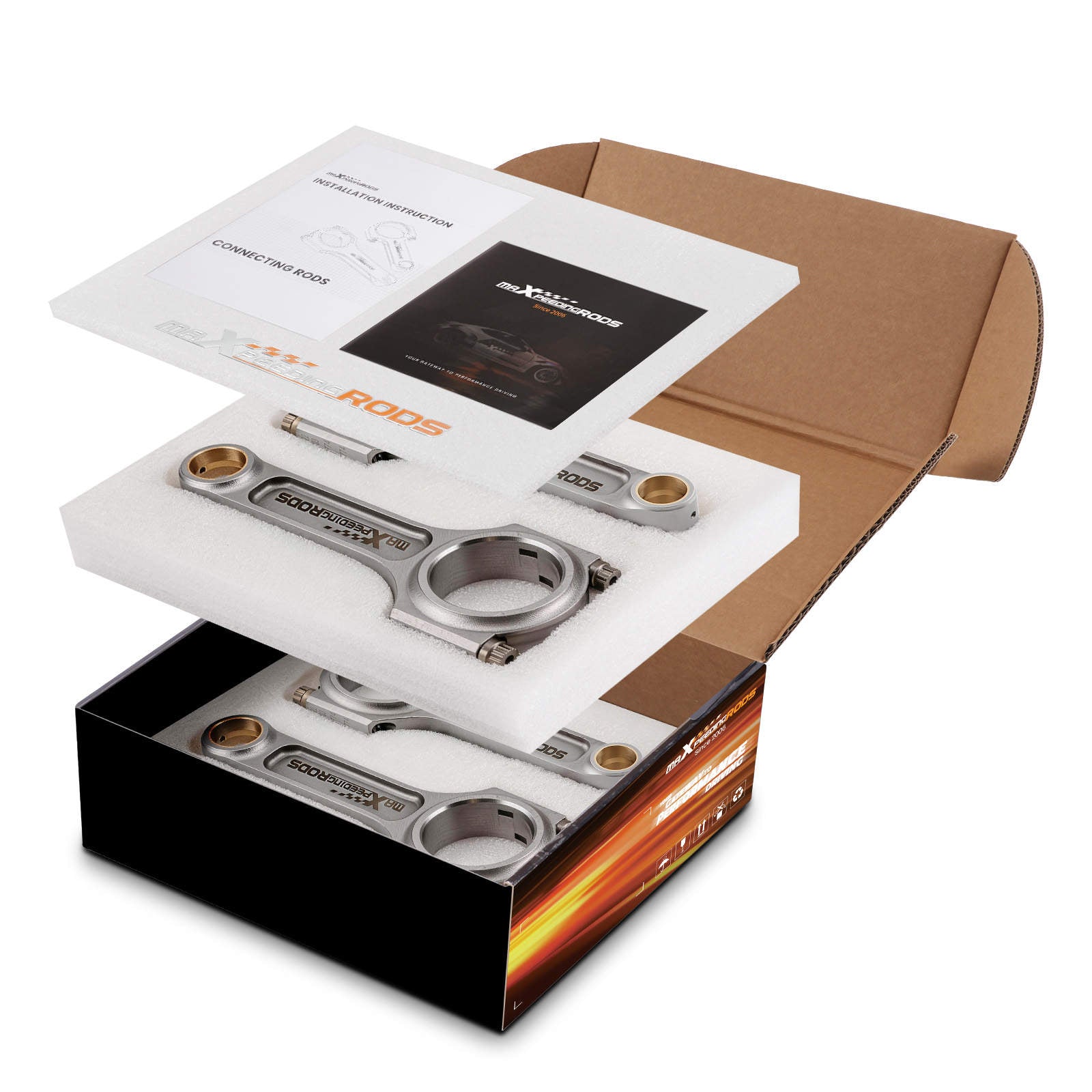

Package included

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM

Dimension

Connecting Rod Length Center to Center: 144.00mm/5.669"
Approximate Connecting Rod Weight:553g
Big End Bore Diameter: 50.60mm/1.992"
Pin End Bore Diameter: 20.00mm/0.787"
Big End Width: 24.90mm/0.980"
Small End Width: 24.90mm/0.980"

Feature

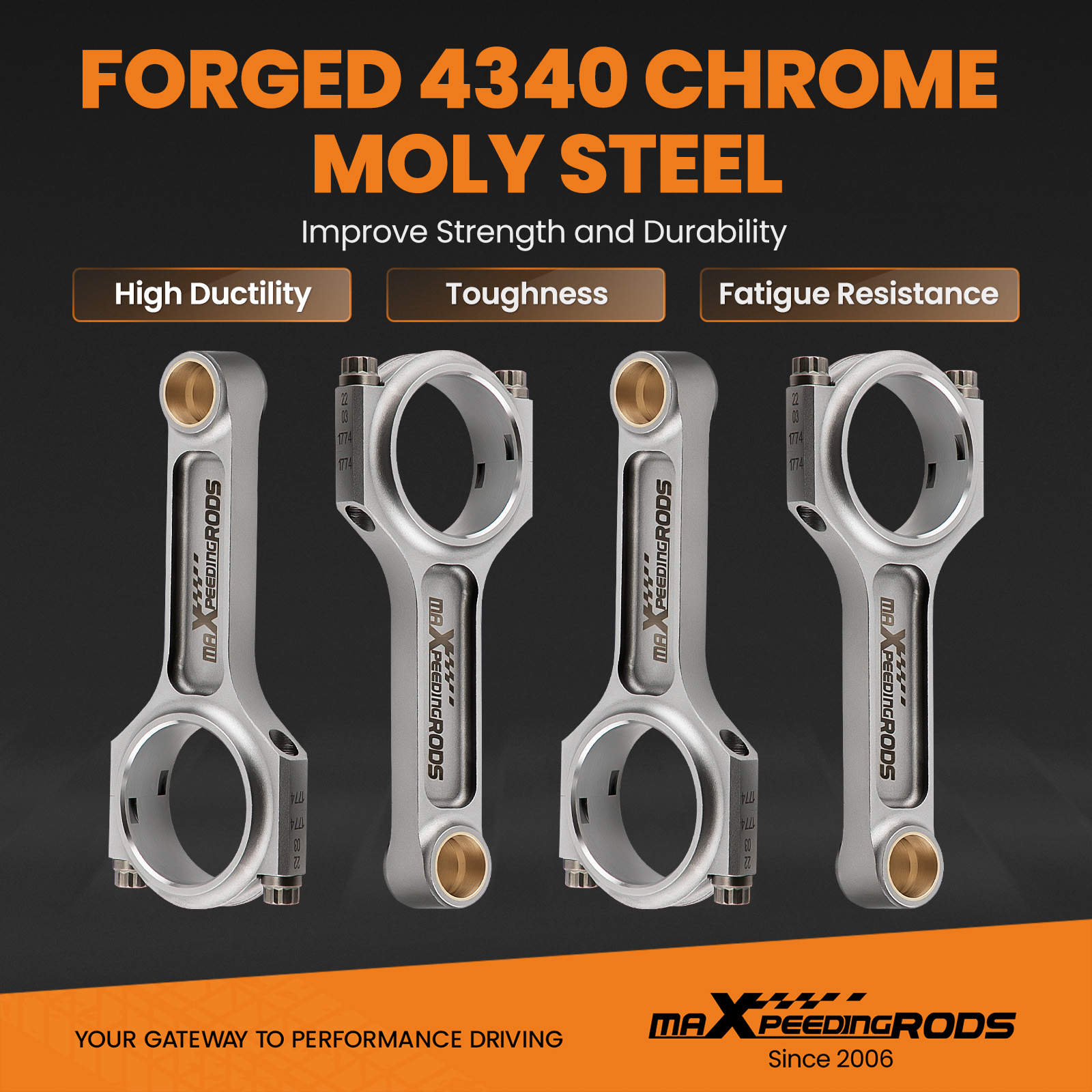

1.Premium 4340 Forged Steel & H-Beam Design (Built for High-Horsepower)
Engineered from aircraft-quality 4340 chromoly steel with a classic H-beam profile. Fully shot-peened and heat-treated to ensure maximum tensile and compressive strength. Perfect for high-load street and strip (1/4-mile drag) racing applications.

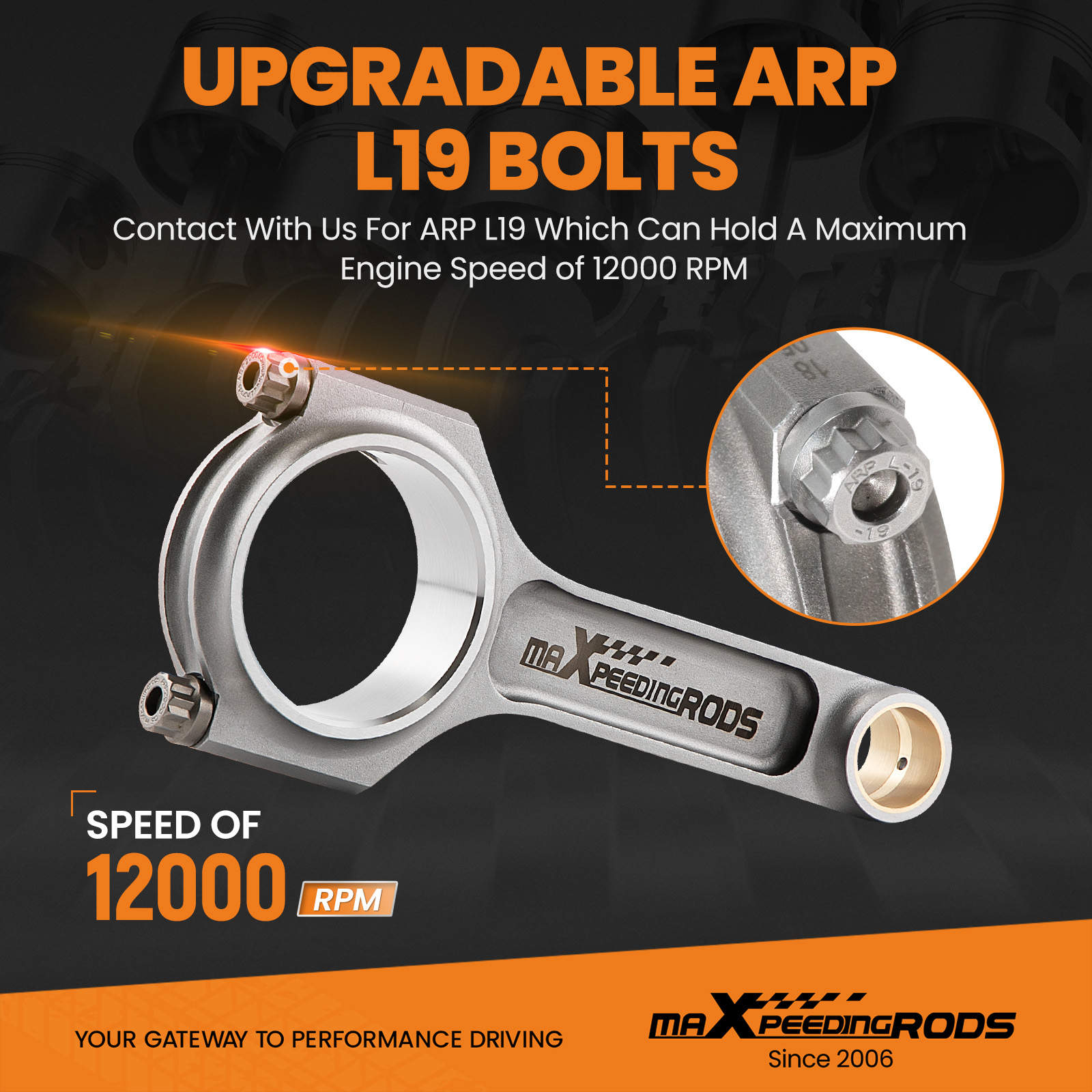

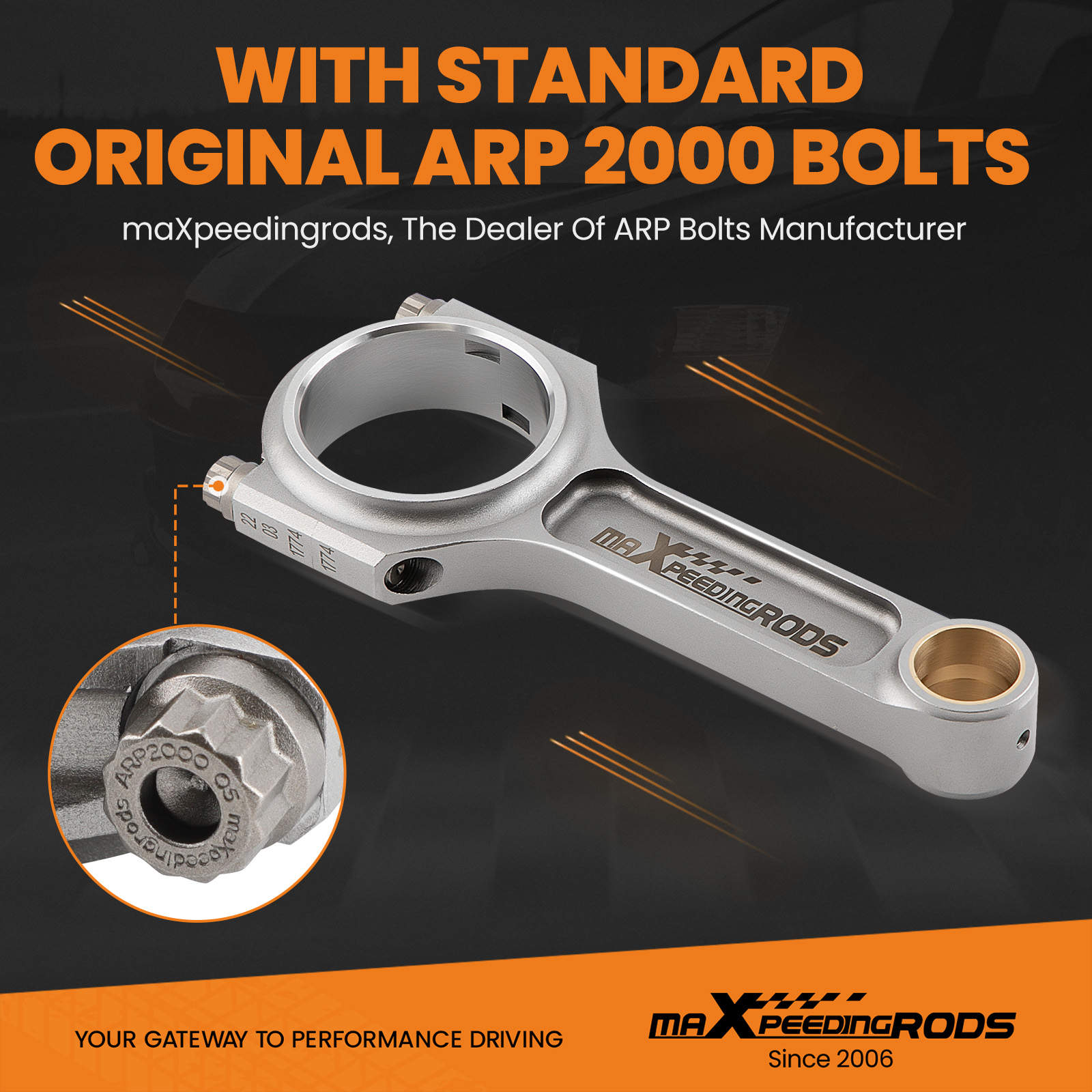

2.Genuine ARP 2000 Bolts Included (Optional ARP L19 Upgrade Available)
100% packed with authentic ARP 2000 12-point bolts boasting a 220,000 psi yield strength. Also offers an optional upgrade to 260,000 psi ARP L19 fasteners, completely eliminating rod-cap separation at extreme high-RPM loads.
3.Factory-Balanced within ±1.0 Grams (Engineered for High-RPM Stability)
Every single set undergoes dynamic balancing at the factory to maintain a strict weight variance of less than 1.0 grams per set. This precise QC standard ensures smooth power delivery and minimizes harmful harmonic vibrations at high RPMs.
4.Triple Non-Destructive Testing & Floating Pin Style (Race Ready)
100% magnafluxed, X-rayed, and ultrasonically tested to guarantee compatible for zero internal flaws or cracks. Features a high-lubrication bronze bushing for floating-style wrist pins, making it fully compatible with premium aftermarket forged pistons.
5.TS16949 / IATF 16949 Certified Facility (Standardized Production Control)
This product is precision-manufactured in a facility certified to the TS16949 standard (Quality Management System for the automotive industry). This certification confirms that our components fully adhere to established automotive manufacturing standards regarding production, testing, and process workflows.

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
