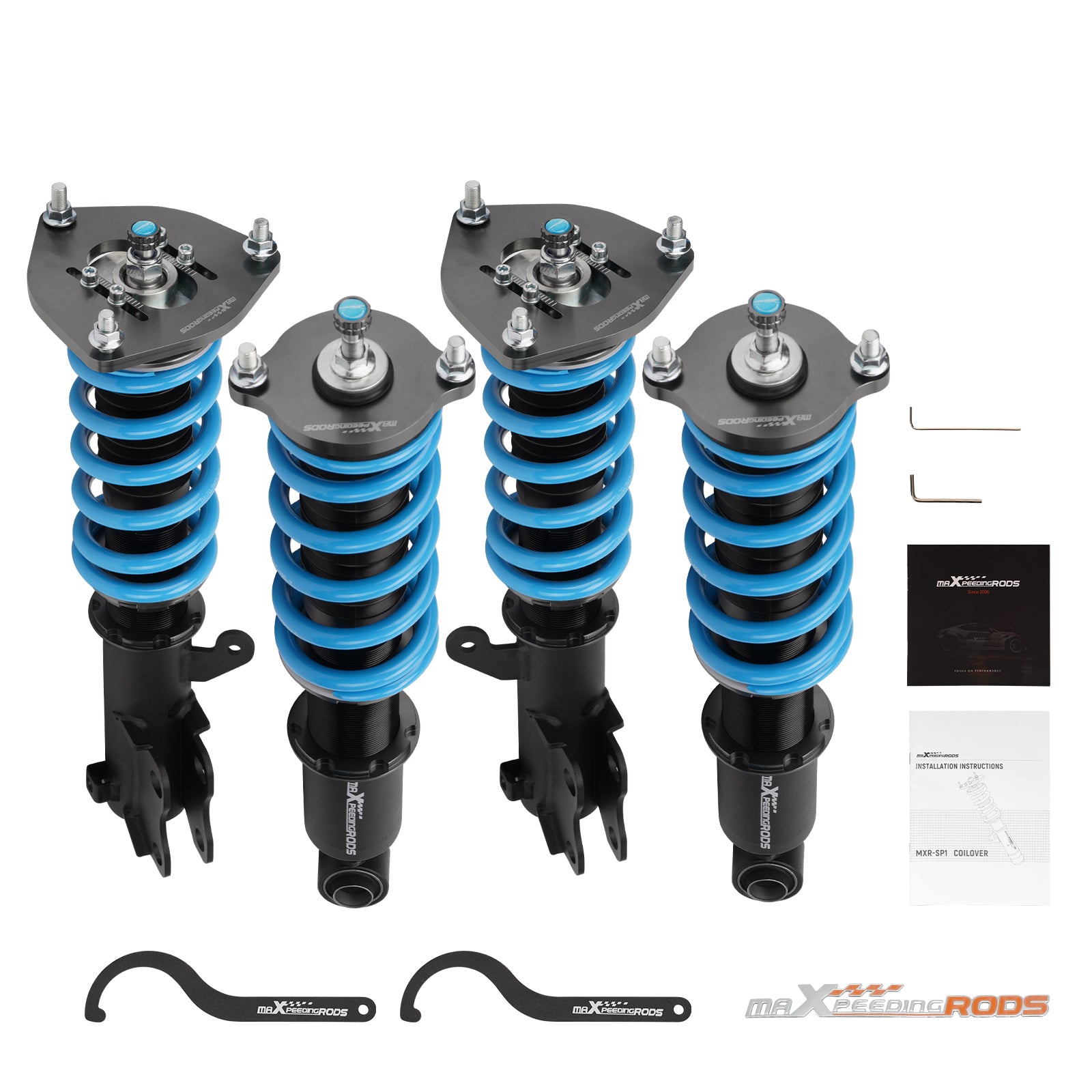

MaXpeedingrods 24-WAY Coilover Lowering Kits Compatible For Mitsubishi Eclipse 2000-2005

This MaXpeedingRods part is suitable for Mitsubishi applications where listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application

Compatible For MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBOCompatible For MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBOCompatible For MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBOCompatible For MITSUBISHI ECLIPSE 1995-1999USA D31A 4CYL/NON TURBO4

Specifications Top mount: Front camber plate Damping: 24 levels rebound damping adjustable Spring rate Front: 8 kg/mm (448 lbs/in)Spring rate Rear: 7 kg/mm (392 lbs/in)Spring length Front: 230mm Spring length Rear: 180mm Adjustable height: lowering 1-3 inch Coilover overall length Front: 485mm-575mm Coilover overall length Rear: 550mm-600mm Shock type: Twin tube Spring Preload: 7-10 mm Color: black body with gold spring Package includedfront complete coilover assemblyrear springs and spring adjusters and shocksA pair wrench for height adjustment Dimension

Package dimension : 71*51*21 Weight: 25000g

Features 1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.3. Pillow ball top mounts improve the steering feel and response.4. Full length dust boot keeps shaft and oil seal from damage.5. Upgraded damper adjust knob makes damping setting easier.6. Upgraded valving for more smooth ride.7. Twin-Tube structure allows sufficient stroke within the shock absorber.8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.10. Decent appearance benefits from CNC machined parts and special surface treatment.11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.12. Complete Suspension Kit of 4 Shock Absorbers 4 Springs for an easy installation.13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.15. Camber plate top mounts help to eliminate the need for a separate camber kit.

Notice

* Instruction Included. (If not, we could offer you the E-book version. ); Professional installation alignment suggested.

* Please check our store for other auto parts you may be interested in.

* Please feel free to contact us for whatever we can help.

Warranty: one year warranty for any manufacturing defect
