maXpeedingrods T7 Advanced Series Coilover compatible for Honda Civic EK1 EK2 EK3 EK4 EK5 EK8 EK9 EM1 96-00 Lowering Kit

This MaXpeedingRods part is suitable for Honda applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introductionma Xpeedingrods SP2 coilovers are designed for daily street use and occasional track use. It features withracing damping oil, upgraded racing spring, full length height adjustable and adjustable camber plate (applicable for some vehicles), which offers you a lowered stance and enhanced handling.Application Suitable for Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)

Suitable for Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only

(ED8\ED9\EE6\EE8\EF6\EF7\EF8)

Suitable for Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)

Suitable for Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only

suitable for Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)

Suitable for Acura Integra 1990 -1993 DA DB Rear fork type bracket model only

suitable for Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only

Please note: for some vehicles, you will need sleeves and washers that are already included in our package.Specifications Front top mount: pillow ball

Rear top mount: rubber

Damping: 24 levels rebound damping adjustable

Spring rate Front: 11 kg/mm (616 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180mm

Spring length Rear: 180mm

Spring inner diameter Front: 70.5mm

Spring inner diameter Rear: 70.5mm

Coilover overall length Front: 310-355mm

Coilover overall length Rear:435-480mm

Adjustable height: lowering 1-3inch

Shock type: Twin tube

Spring Preload: 7-10 mm

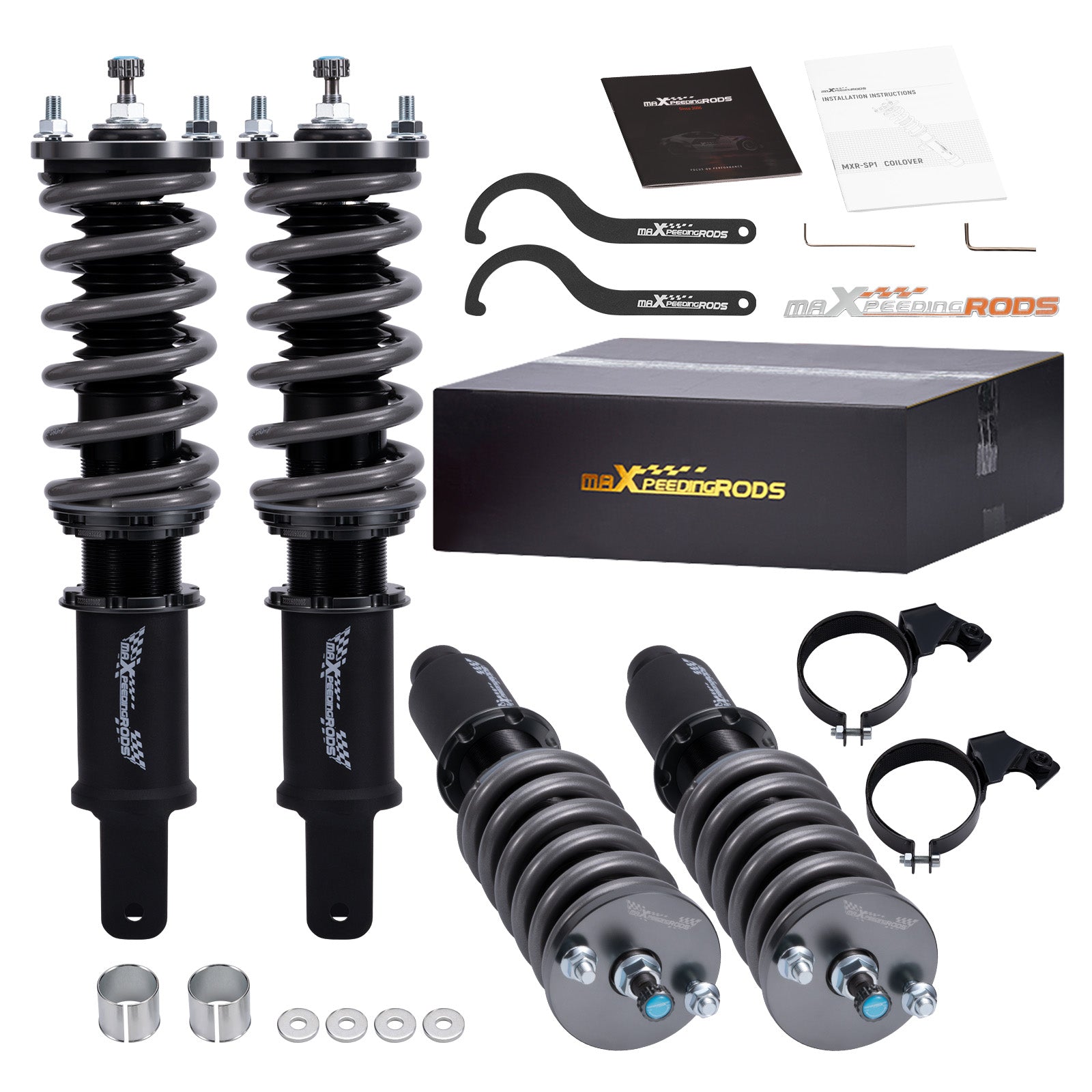

Color: black body with grey spring Package included Complete coilovers assembly 2 front and 2 rear

A pair wrench for height adjustment Dimension Package dimension : 62*50*19cm

Weight: 22120g Features1)Racing damping oil and spring rates set for occassional track use and daily street use;

2)With better damping setting,you will get better performance and enhanced handling;

3) Lowered height adjustment from 1" - 3" (depends on vehicle models)which allow lower center of gravity and also add a more aggressive stance;

4) Adjustable pre-load spring tension to reduce the shaking motion to a certain extent;

5) 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system.;

6) CNC machined Aluminumtop mounts and lockers-- - excellent strength, and save weight;

7)Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable;

8) All inserts come with fitted long rubber boots--- To protect the damper more well and be durable;

9)Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10) Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts, matt finished surface

11) Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.

12) Clean room assembled---maintain higher level of accuracy and reliability.Please note For some vehicles, you will need sleeves and washers that already included in our package.Notice Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
