Motorcycle Turbo For Snowmobiles Quads Rhino ATV 100hp 190cc Turbo RHB31 VZ21 compatible for Mini Turbo

This MaXpeedingRods part is suitable for Mini applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm100HP,

Suitable for Suzuki ALTO Works with YA1 F6AT Engine,

Suitable for Suzuki ALTO Works with 21R707-0011-G1 Engine OE-/part number VZ21,13900-62D51, 1390062D51,

1390062D50, 13900-62D50, VE110069 Specifications Turbo Model: RHB31

Engine: YA1, F6AT, suitable for Isuzu 4TNA, 21R707-0011-G1 Engine

Cooled Type: water and oil cooled

Bearing Type: Journal Bearing

Thrust Bearings: 360 Degrees

Fit for: 500 cc to about 1000cc

Internal-wastegate: 15psi

Horse Power: 23-100HP

Compressor Exducer: 37.1mm

Compressor Inducer: 24.2 mm

Compressor Trim: 42.5

Compressor A/R: 0.7

Turbine Inducer: 35mm

Turbine Exducerr:26.7mm

Turbine Trim: 58.2

Turbo Type: Individual

Universal Fitment: Yes

Finish: no

Condition: Brand New

Package Size:26x 25 x 23 cm

Package Weight: 3400g

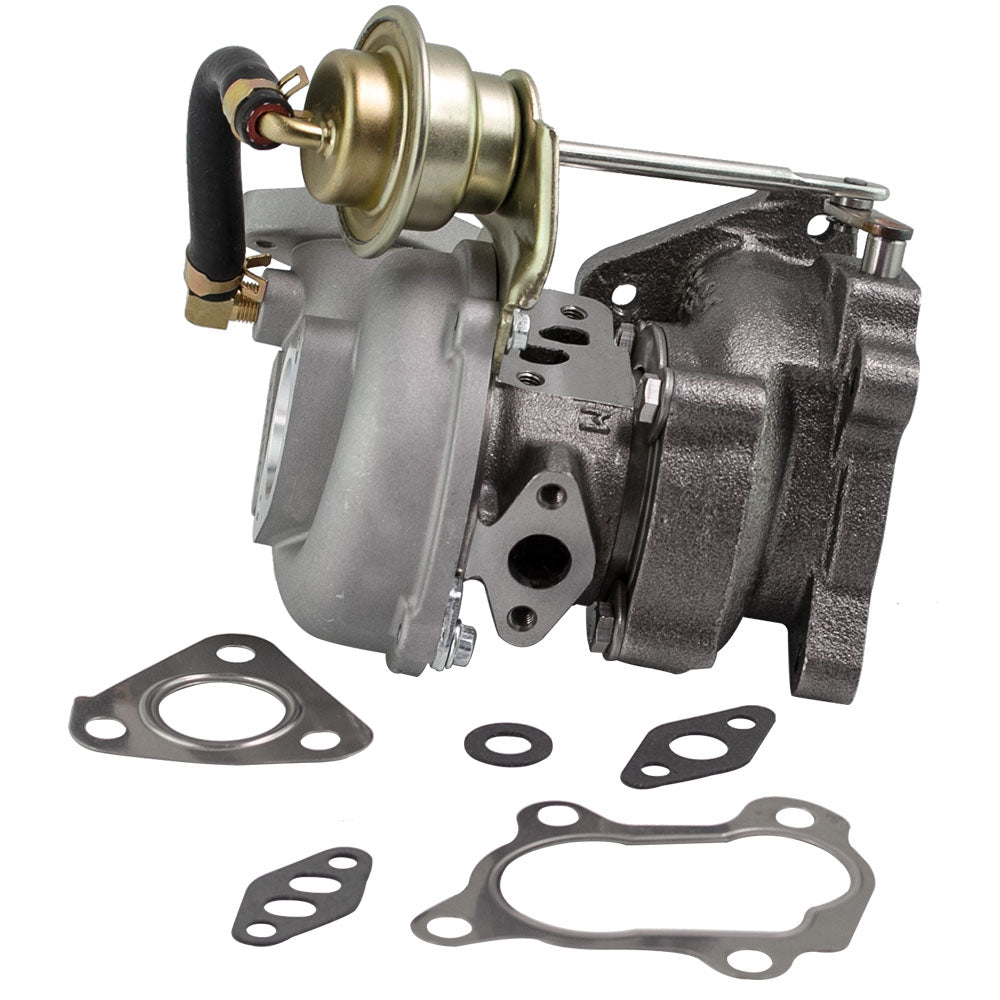

Accessories: You will receive the parts exactly as shown in the picture above Package included1 x Turbocharger

2 x Flange gaskets

3 x Oil feed/drain gaskets Features*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance

1. Cost-effective turbo increase 20-40% power for your car

2. Rich self-production experience with own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
