Application

Compatible for Audi A4 8E2, B6 1.6L Hinten Links Rechts 2000/11-2004/12
compatible for Audi A4 8E2, B6 1.8L Hinten Links Rechts 2000/11-2004/12
compatible for Audi A4 8E2, B6 1.9L Hinten Links Rechts 2000/11-2004/12
compatible for Audi A4 8E2, B6 2.0L Hinten Links Rechts 2000/11-2004/12
compatible for Audi A4 8E2, B6 2.4L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 8E2, B6 2.5L Hinten Links Rechts 2000/11-2004/12
compatible for Audi A4 8EC, B7 1.6L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 8EC, B7 1.8L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 8EC, B7 1.9L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 8EC, B7 2.0L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 Avant 8E5, B6 1.6L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8E5, B6 1.8L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8E5, B6 1.9L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8E5, B6 2.0L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8E5, B6 2.4L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8E5, B6 2.5L Hinten Links Rechts 2001/09-2004/12
compatible for Audi A4 Avant 8ED, B7 1.6L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 Avant 8ED, B7 1.8L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 Avant 8ED, B7 1.9L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 Avant 8ED, B7 2.0L Hinten Links Rechts 2004/11-2008/06
compatible for Audi A4 Cabriolet 8H7 1.8L Hinten Links Rechts 2002/07-2005/12
compatible for Audi A4 Cabriolet 8H7, 8HE, B6, B7 2.0L Hinten Links Rechts 2004/09-2005/12
compatible for Audi A4 Cabriolet 8HE 2.0L Hinten Links Rechts 2006/01-2008/11
compatible for Seat Exeo 3R2 1.6L Hinten Links Rechts 2009/04-2010/09
compatible for Seat Exeo 3R2 1.8L Hinten Links Rechts 2009/04-2013/05
compatible for Seat Exeo 3R2 2.0L Hinten Links Rechts 2009/04-2013/05
compatible for Seat Exeo ST 3R5 1.6L Hinten Links Rechts 2009/06-2010/09
compatible for Seat Exeo ST 3R5 1.8L Hinten Links Rechts 2009/06-2013/05
compatible for Seat Exeo ST 3R5 2.0L Hinten Links Rechts 2009/05-2013/05

OE/Part number

2x Bremsscheiben Vorderachse:
8E0615601B,895615601A,8E0615601P

4x Bremsbeläge Vorderachse:
1E0698451,1E0698451B,1E0698451C,1E0698451D,1E0698451E,1E0698451G,1H0615415,1H0615415A,1H0615415D,1H0698451,1H0698451A,1H0698451D,1J0698451,1J0698451B,1J0698451C,1J0698451D,1J0698451E,1J0698451F,1J0698451G,1J0698451H,1J0698451J,1J0698451K,1J0698451L,1J0698451M

Specification

Item One
Conditiion:New
Installation position:Rear Passenger Side
Material:Iron Alloy
Solid Or Vented Type Rotor:Solid
Rust Resistant Coating:Black Painting
Brake Surface:Non-Directional
ABS Tone Ring Included:No
Bearings Included:No
Mounting Bolt Hole Quantity:10
Mounting Bolt Hole Circle Diameter(mm):112
Outside Diameter(mm):244.7
Overall Height(mm):39.8
Nominal Thickness(mm):10
Packaging Type:Box
Fitment:Direct Replacement
Item Two
Conditiion:New
Installation position:Rear Passenger Side
Backing Material:Steel
Pad Material:Low-metallic
Pad Shims Included:Yes
Mounting Hardware Included:Yes
Mounting bolt:Yes
Lubricant Included:Yes
Pad Wear Sensor Included:No
Pad Wear Sensor Type:/
Inner Pad Width(mm):87.12
Inner Pad Height(mm):52.8
Inner Pad Thickness(mm):16.5
Outer Pad Width(mm):87.12
Outer Pad Height(mm):52.8
Outer Pad Thickness(mm):16.5
Packaging Type:Box
Fitment:Direct Replacement

Package included

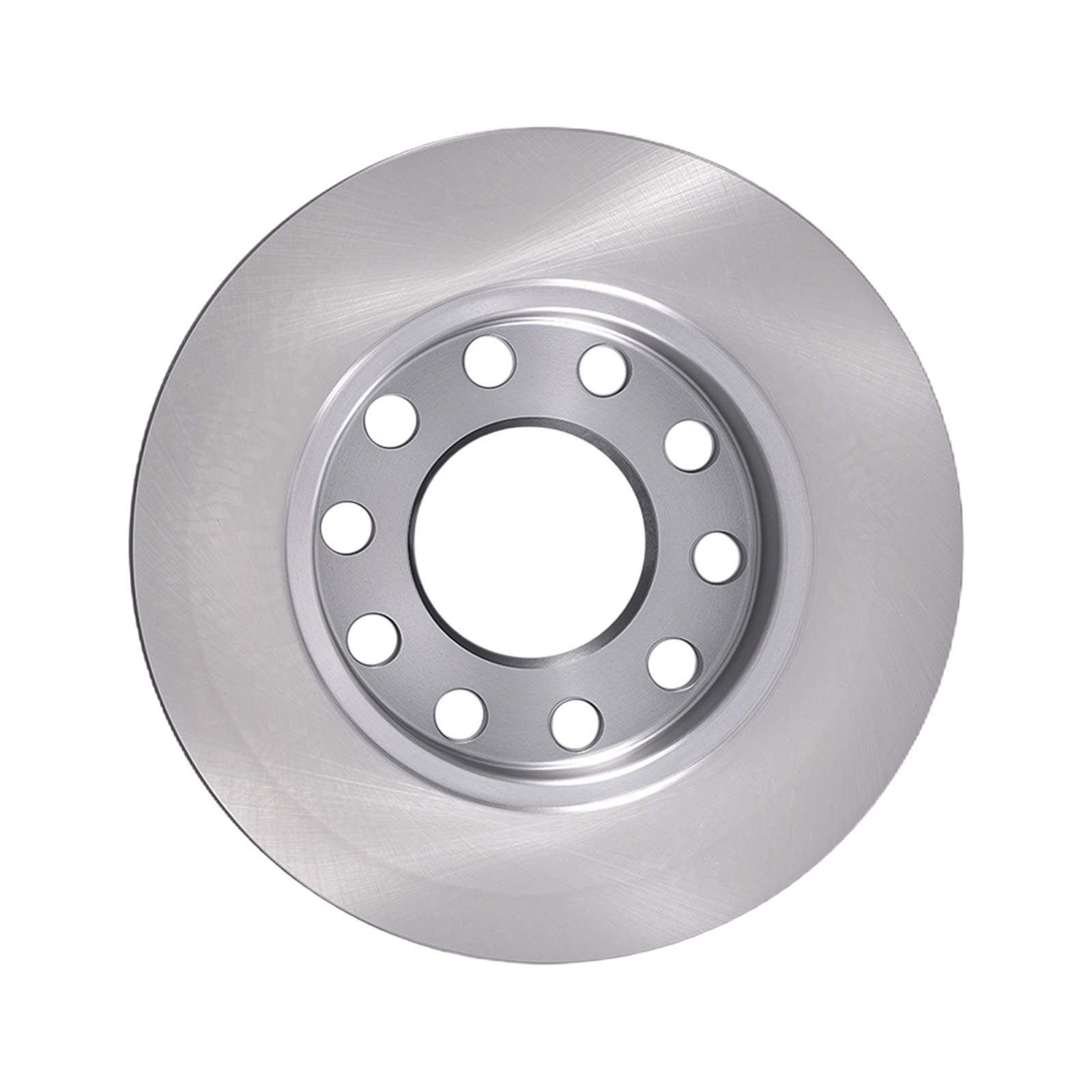

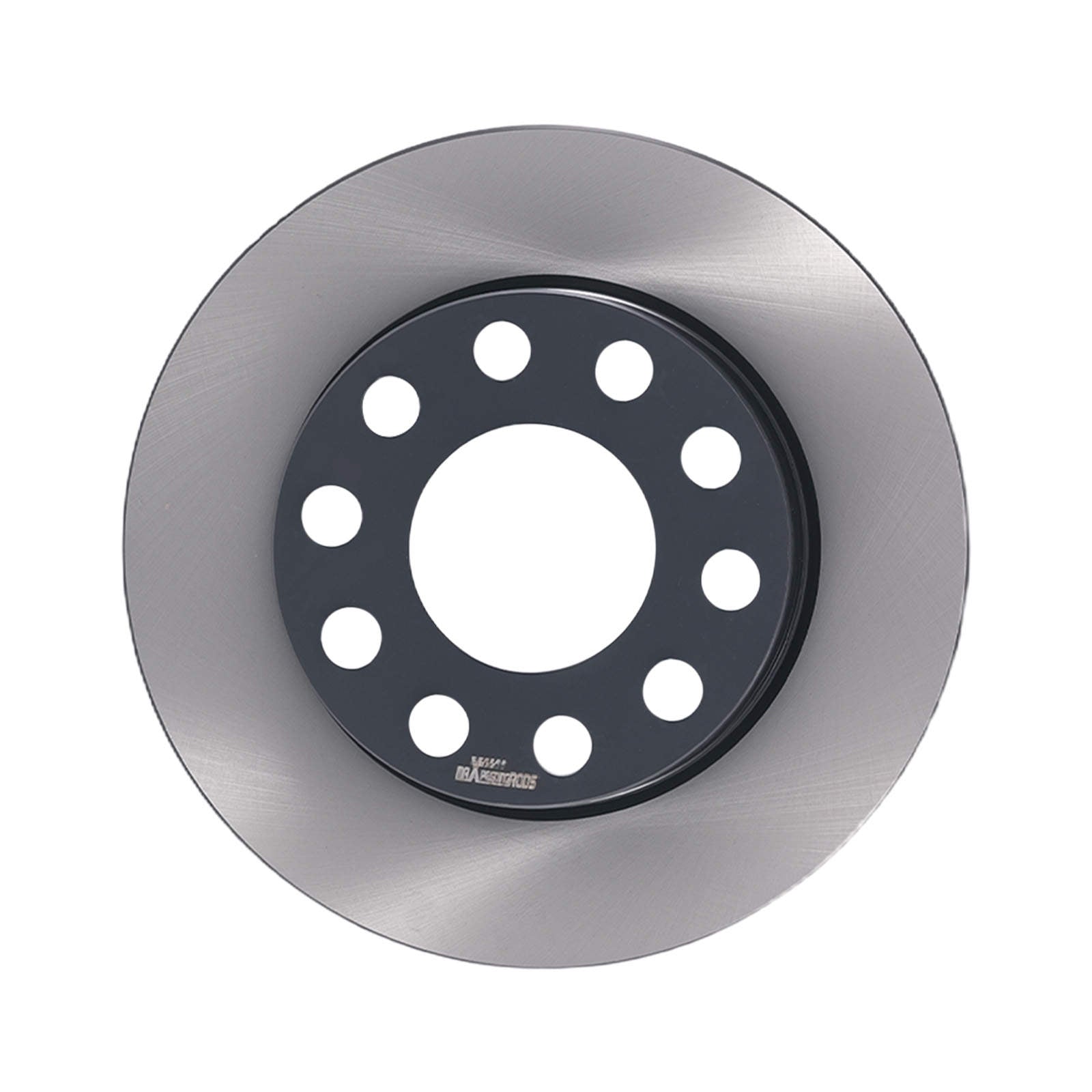

2x Brake Discs

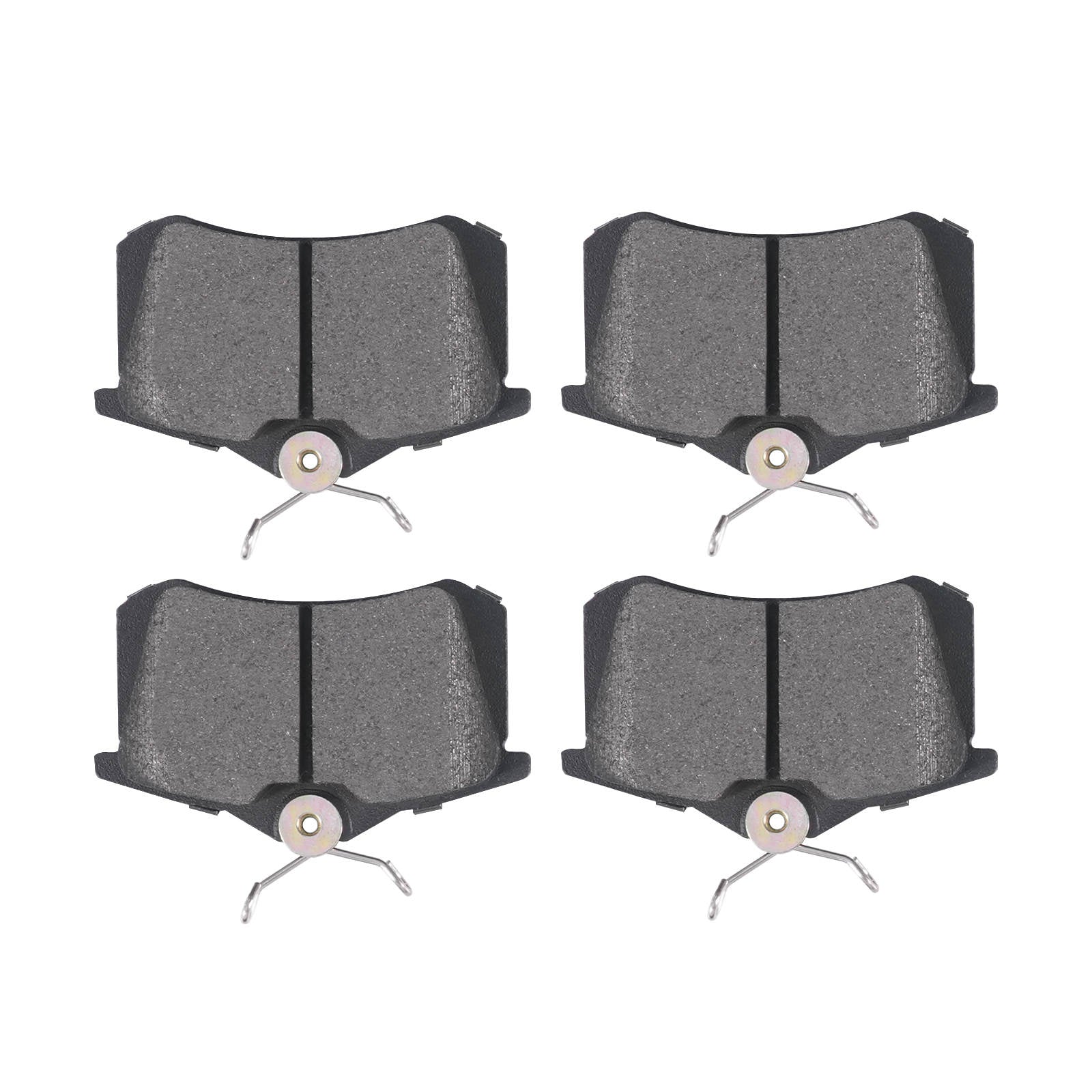

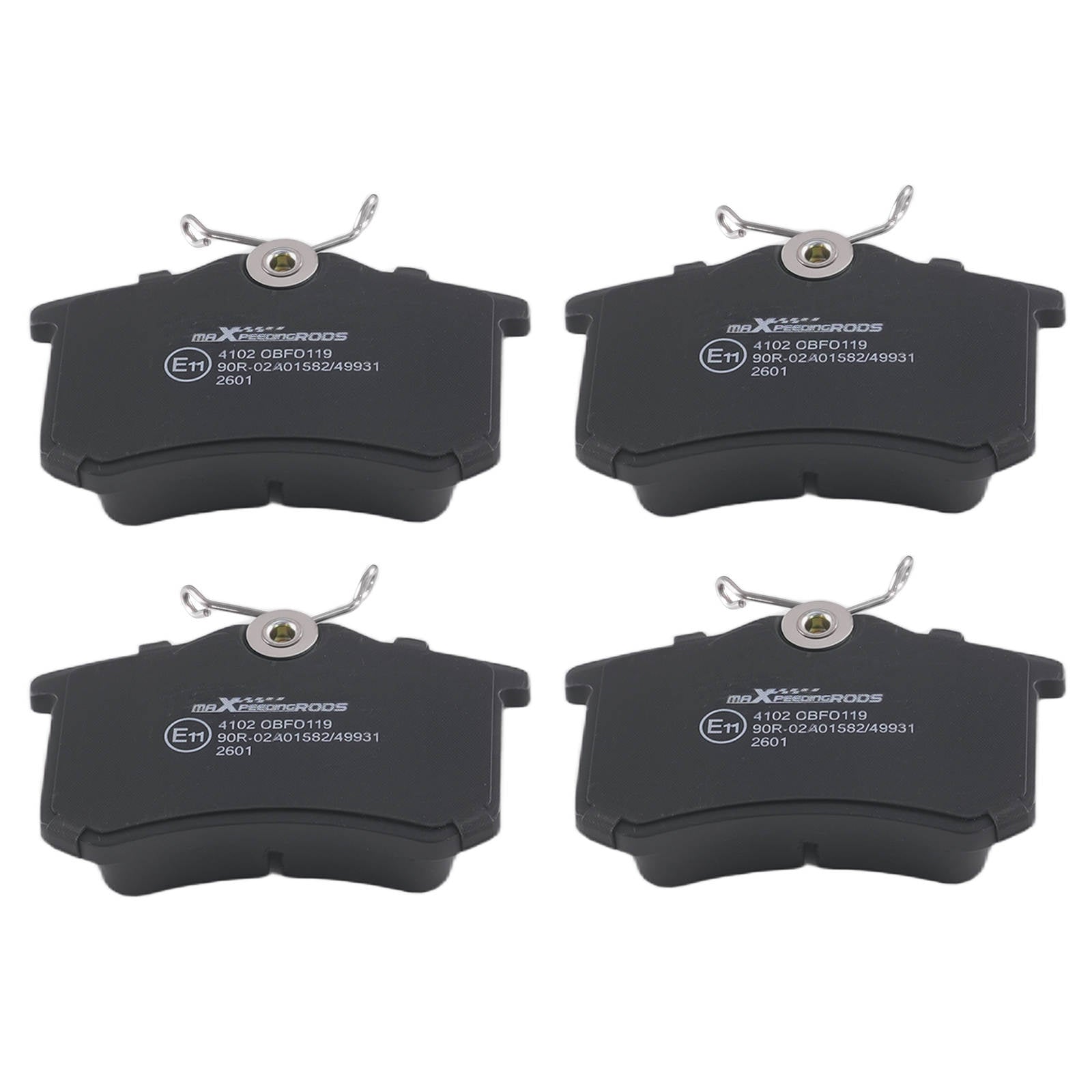

4x Brake Pads

Note

●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
