Voltage Regulator suitable for Aprilia Leonardo 250 Type ZD4PD0 1999-2001 AP8112941
Voltage Regulator suitable for Aprilia Leonardo 250 Type ZD4PD0 1999-2001 AP8112941
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product Description
Voltage regulator/rectifier, suitable for various Aprilia and BMW motorcycles.
Suitable for:
- Aprilia Leonardo 250 type ZD4PD0 (1999-2001), 14.0 kW / 19.0 hp
- Aprilia Leonardo 250 ST-SP (4T) (2001-2003)
- Aprilia Leonardo 300 (4T) (2002-2006), 15.0 kW / 20.4 hp, type ZD4SV
- Aprilia Pegaso 650 (1992-2004), type GA / MX / ML / RW, 20.0-36.0 kW / 27.2-49.0 hp
- Aprilia Pegaso 650 i.e. (2001-2004), type RW, 25.0-35.0 kW / 34.0-47.6 hp
- BMW F 650 (1993-2000), type 169, 25.0-35.0 kW / 34.0-47.6 hp
- BMW F 650GS / PD (2000-2003), type R13, 25.0-37.0 kW / 34.0-50.3 hp
- BMW F 650ST (1997-1998), type 169, 25.0-35.0 kW / 34.0-47.6 hp
Specifications
- OEM / Part Number: AP8112941, 61 31 2 346 432
- Control Unit Dimensions (L x W x H): 81 x 78 x 30 mm
- Connection Cable Length: approx. 210 mm (incl. connector)
- Connector 1 (3-pin): 3 yellow cables (alternator)
- Connector 2 (2-pin, flat): 1 green cable (ignition switch), 1 red cable (battery terminal)
- Connection: M6 ring terminal, brown cable (ground)
Scope of delivery

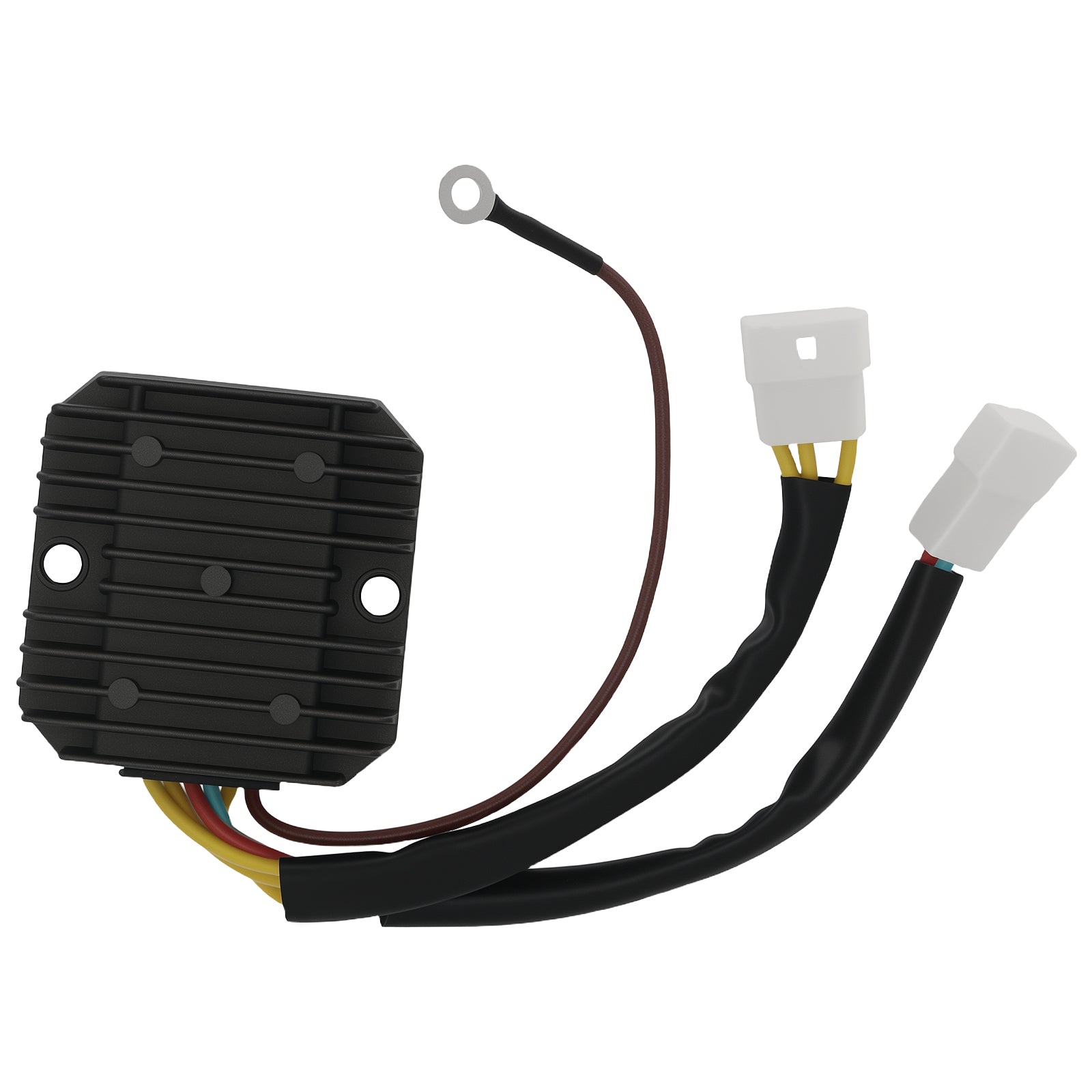

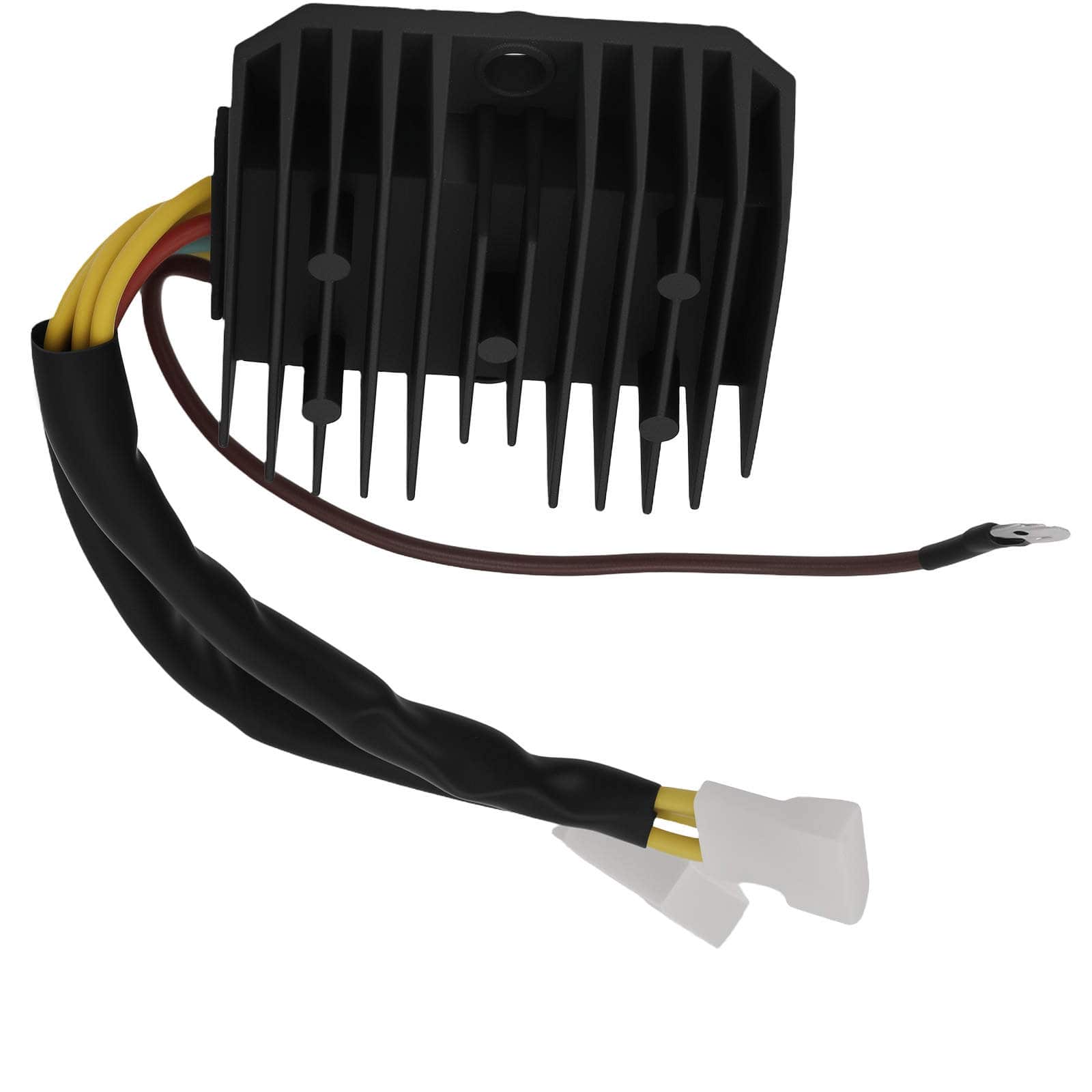

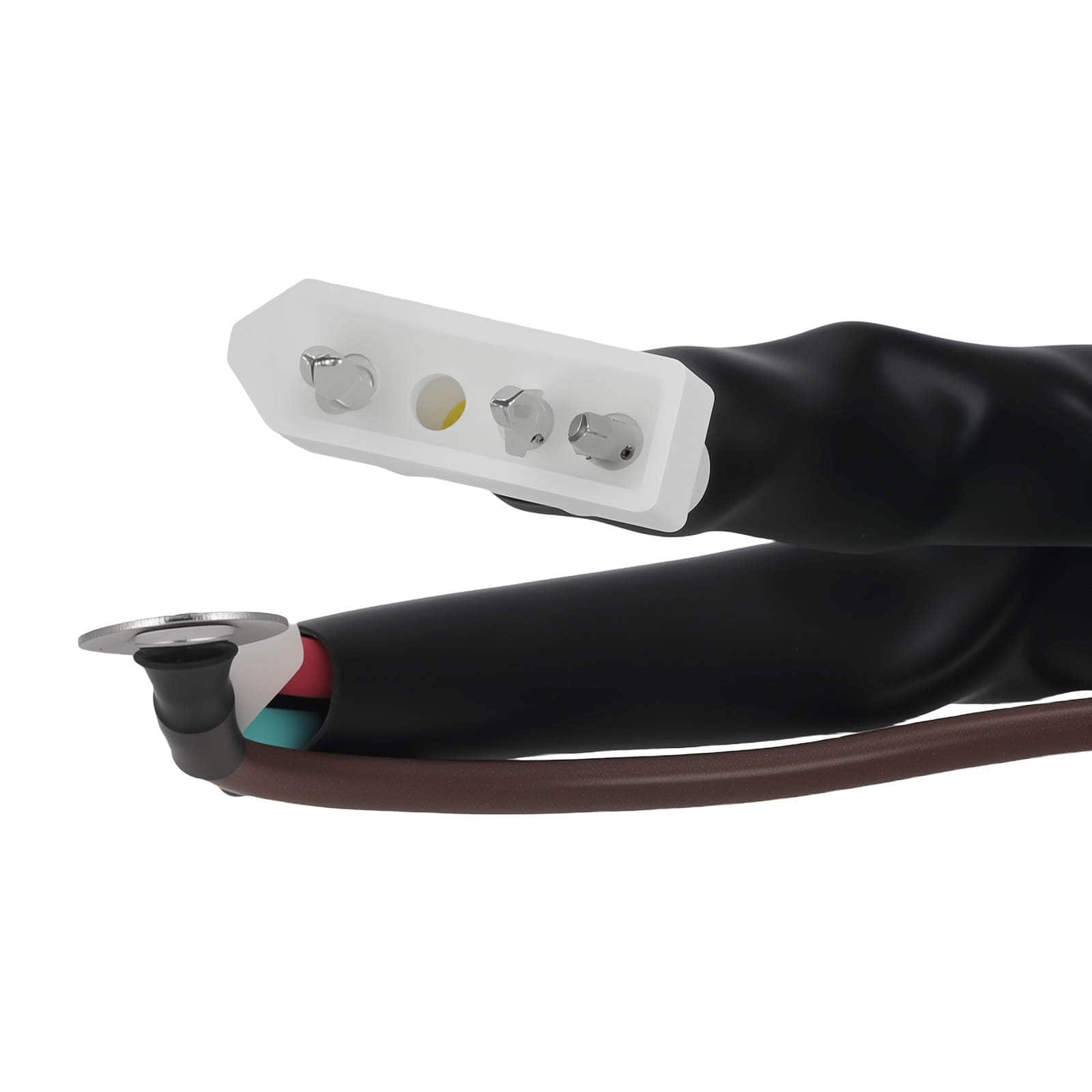

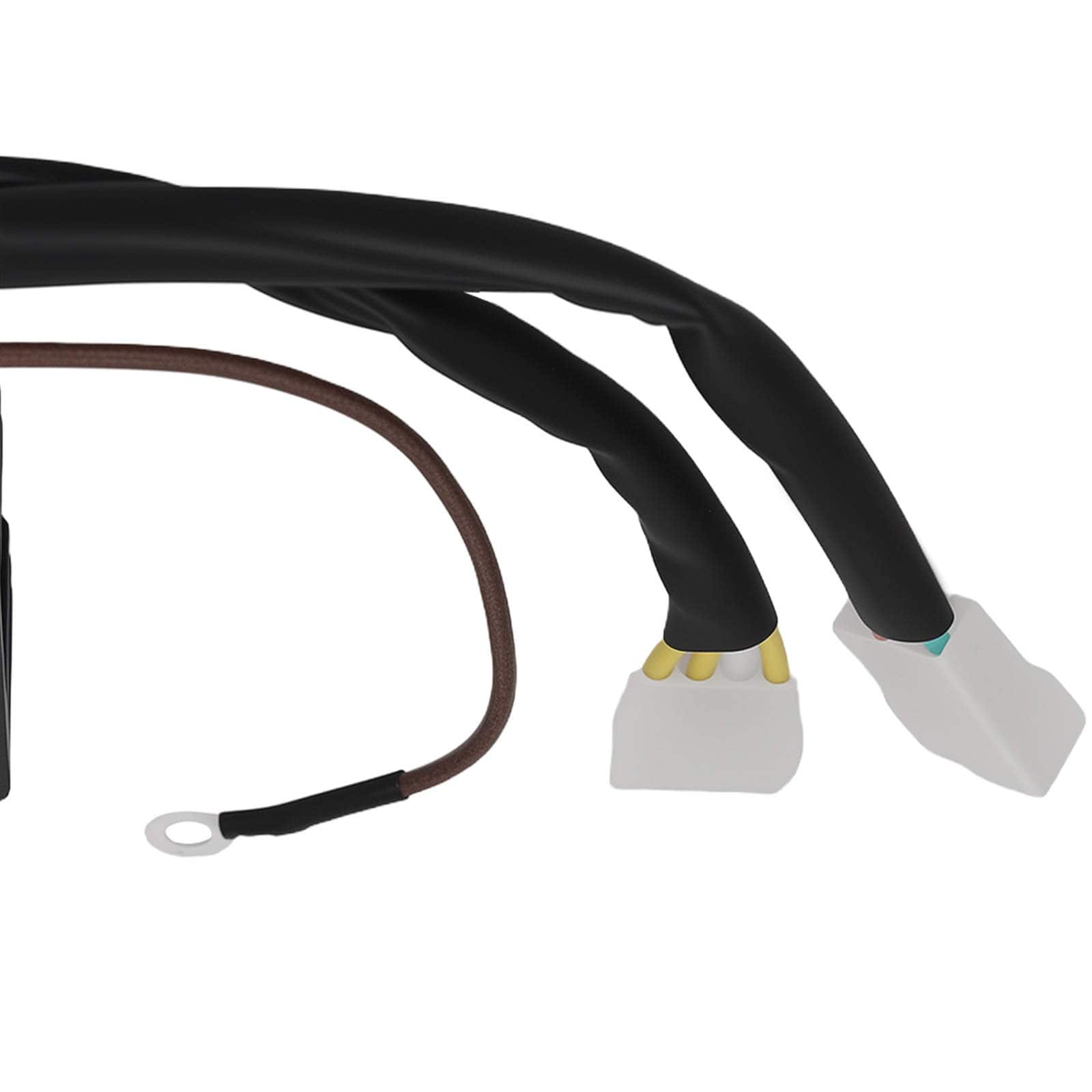

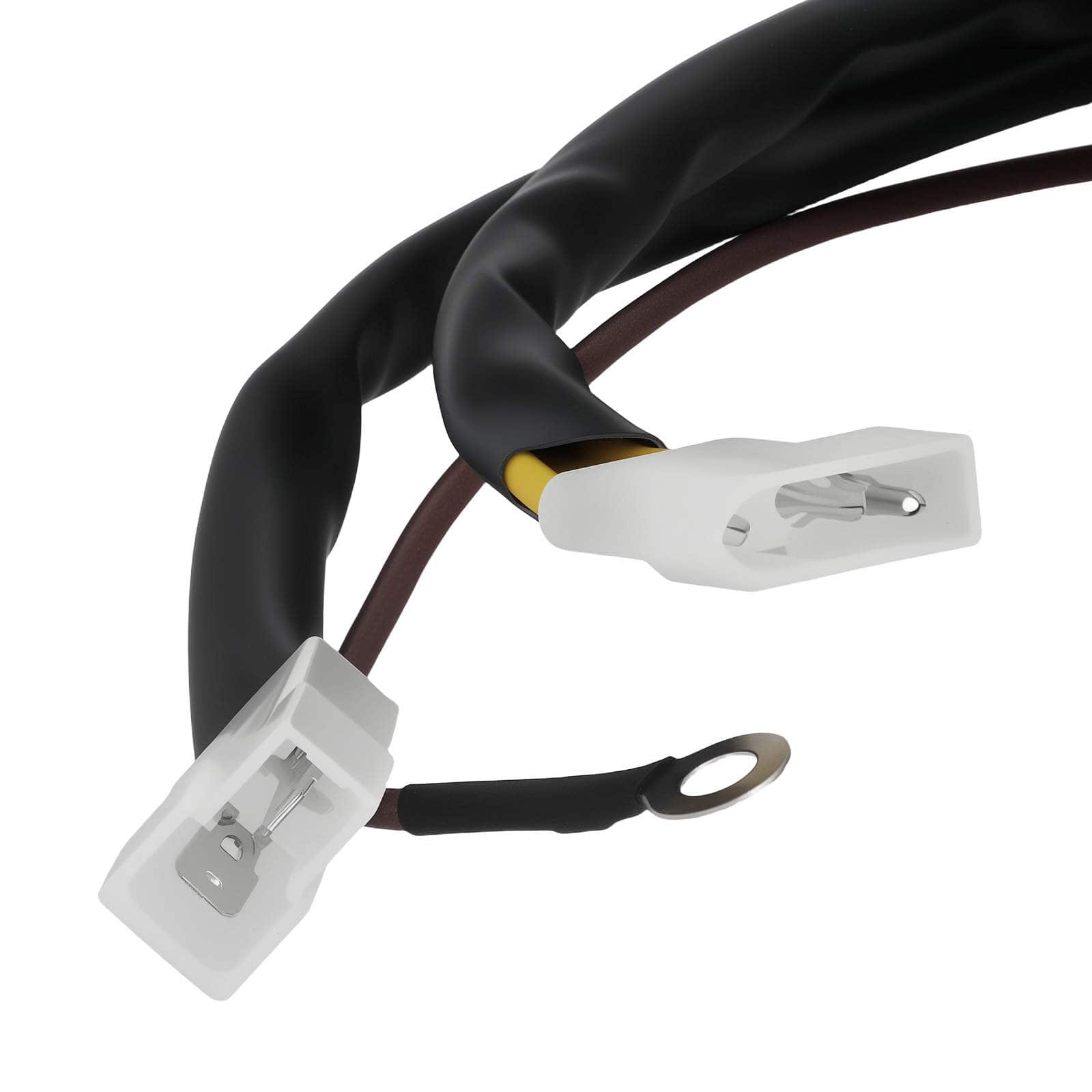

1x voltage regulator (as shown in the pictures).
Features
- Perfect fit, high quality, corresponds to the original in form and function
Check fitment
Always check the original OEM part number, year of manufacture, engine code and the version of your vehicle before ordering, as differences may exist depending on the version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchasing.
