Turbo S300SX3 66 mm T4 twin-scroll A/R 0.91 85/47 trim 320-800 hp compatible with John Deere 6081H 177275
Turbo S300SX3 66 mm T4 twin-scroll A/R 0.91 85/47 trim 320-800 hp compatible with John Deere 6081H 177275
- ✓ Price includes VAT — no surprises later
- ✓ Fast shipping from our own stock
- ✓ 100% new, aftermarket in OE quality
- ✓ 2-year warranty against manufacturing defects
Product description

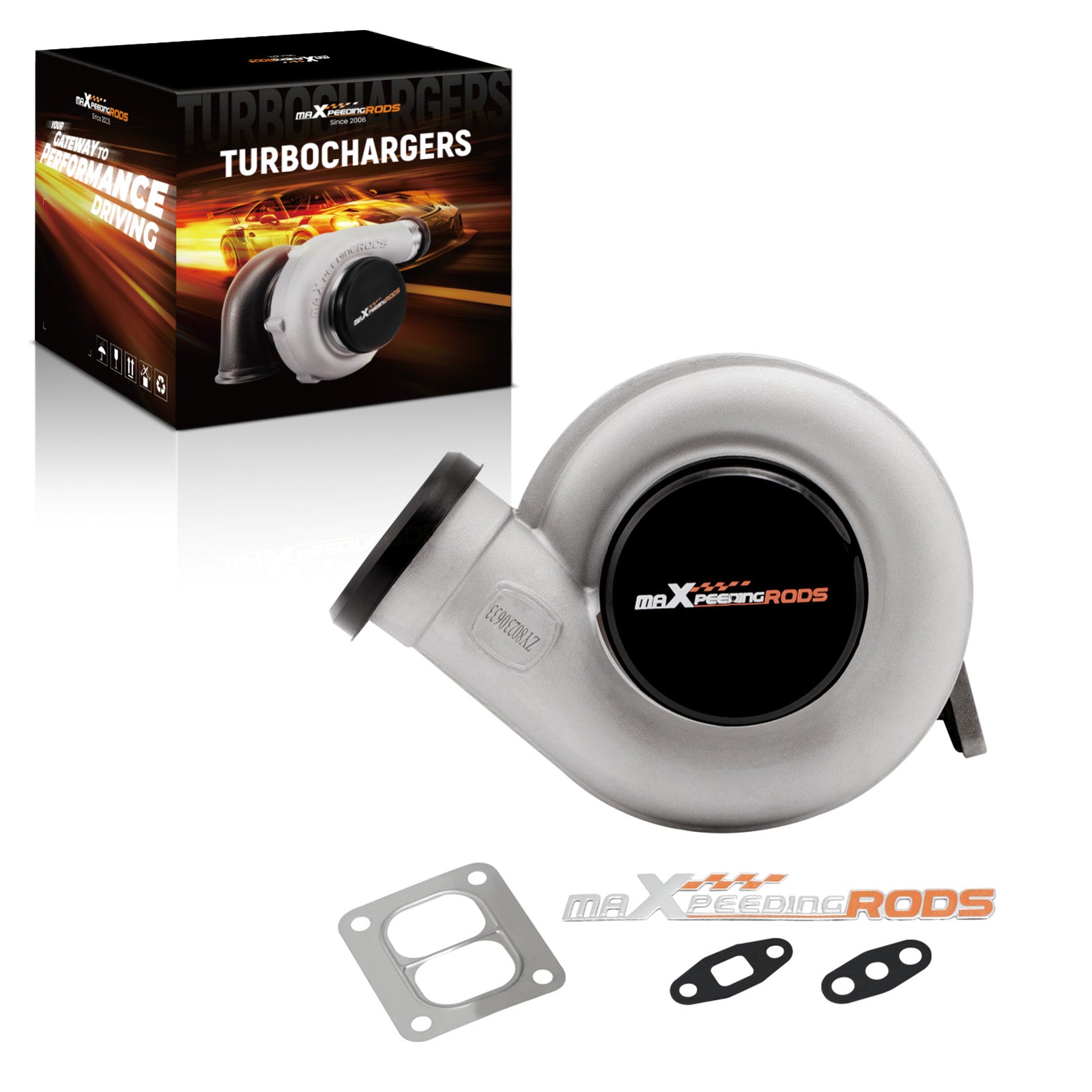

S300SX3 turbocharger (S366) with 66 mm compressor inducer, T4 twin-scroll inlet flange and turbine A/R 0.91. Developed for John Deere agricultural tractors with the 6081H engine and suitable for universal use from 320 to 800 hp.
Fits:
- John Deere agricultural tractor with 6081H engine (2001-06)
- Various John Deere applications
- Universal application 320-800 hp (modification may be required)
Specifications
- OEM / part number: 177272, 177275, 177281, 176635, 176647
- Turbo model: S300SX3, S300G, S300S-084, S300S0102, S300S084, S300-83H33DC-AGM/0.9176ZD3
- Engine: John Deere 6081H
- Turbine: inducer 80 mm (3.14 inch), exducer 73 mm (2.9 inch), trim 85, A/R 0.91, 10 blades
- Compressor: inducer 66 mm (2.6 inch), exducer 96 mm (3.8 inch), trim 47, 7+7 blades
- Turbine inlet flange: T4 twin-scroll
- Turbine outlet flange: Marmon flange
- Cooling: oil-cooled
- Bearing type: journal bearing, 270-degree thrust bearing
- Power: 320-800 hp
- Quantity: 1x turbocharger
- Condition: New
- Warranty: 1 year on manufacturing defects
Features
- Turbine housing made of QT450-10 ductile cast iron, resistant up to 700 °C
- Turbine wheel made of K418 alloy, oxidation resistant up to 900 °C
- Cast aluminium compressor blades with good gas tightness
- Oil drain must be lower than the turbo; petrol engines require water cooling
- Professional installation strongly recommended; no manual included
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and version of your vehicle, as there may be differences between versions. Not sure whether this part fits your vehicle? Feel free to contact us before purchasing.
