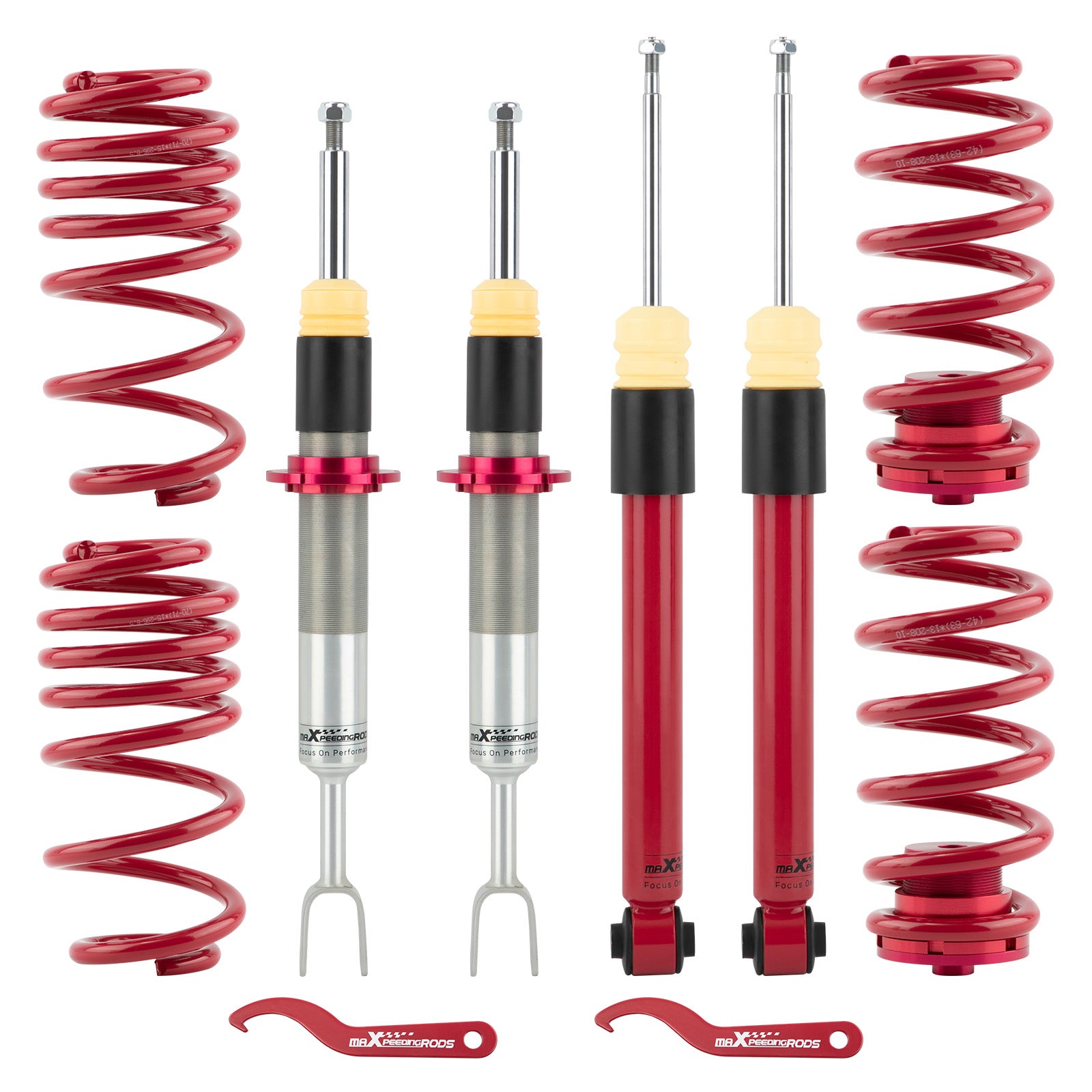

Coilover Suspension Lowering Kit compatible for AUDI A4 B6 B7 Saloon Estate Convertible

This MaXpeedingRods part is suitable for Audi applications where listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction Ma Xpeedingrods-S1 series is ideal for those who want to change the old worn out strut but improve handling at same time. It features with height adjustable and maintain the OE ride quality to the greatest extent.Application Suitable for AUDI A4 Avant (8E5, B6) 2000-2005 3 /1.9 TDI /1.8 T /2.0 FSI suitable for AUDI A4 Convertible (8H7, B6, 8HE, B7) (01/2002-12/2009) 3/1.8 T/2/ 2.7 TDI suitable for AUDI A4 (8E2, B6) (11/2000-12/2005)1.8 T quattro /3.0 quattro suitable for AUDI A4 Avant (8ED, B7) (11/2004-06/2008) 2/1.6 /2.0 TFSI /1.8 T /1.9 TDI suitable for AUDI A4 (8EC, B7) (11/2004-06/2008)2.0 TFSI quattro/ 1.8 T quattro note: Front OE top mounts need to be modified (drill bigger hole for shaft)Specifications Spring rate Front: 9 kg/mm (504 lbs/in)

Spring rate Rear: 12 kg/mm (672 lbs/in)

Spring length Front: 190mm

Spring length Rear: 190mm

Coilover overall length Front: 460mm-520mm

Coilover overall length Rear: 400mm-450mm

Color: silver body+ red spring Dimension Weight: 24860g

Dimensions: 71*51*21cm Features1.0-60mm(depends on vehicle models) lower height adjustable

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install,Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).
