Coilover Springs+ Control Arms compatible for BMW 3 2-door Convertible (e46) 330ci 325ci

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Applications:

Compatible for BMW 3 E46 Saloon (02/1998-04/2005)

316i 318i 320i 323i 325i 328i 330i 318d 320d 330d

Compatible for BMW 3 E46 Convertible (04/2000-12/2007)

318 Ci 320 Ci 323 Ci 325 Ci 330 Ci 320 Cd 330 Cd

Compatible for BMW 3 E46 Coupe (02/1999-12/2006)

316 Ci 318 Ci 320 Ci 323 Ci 325 Ci 328 Ci 330 Ci320 Cd 330 Cd

Compatible for BMW 3 E46 Touring / Estate(10/1999-05/2005)

316i 318i 320i 323i 325i 328i 330i 330d 318d 320d

Please note:

not for Xi/xd 4 wheel drive

not for M3 model either

OE shims need to be installed on the rear eye bolt bushings.

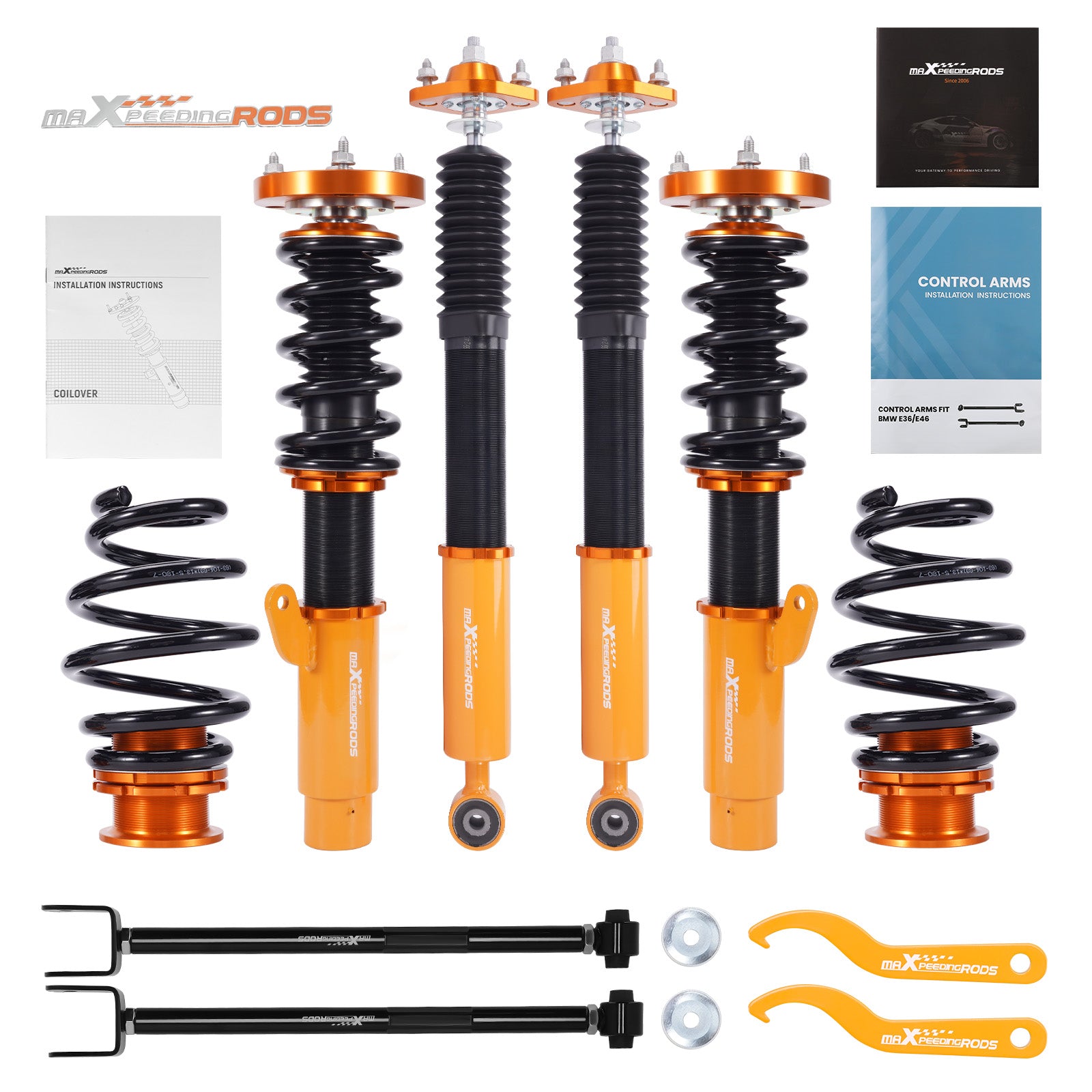

Quantity:

2x Front coil-overs

2x Rear coil-overs

2x C spanners

1x Pair of Rear Lower Adjustable Camber Arm Kit (Left & Right)

Specifications:

Coilovers

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping adjustable: Not available

Front top mounts: pillow ball bearing camber plate

Rear top mounts: pillow ball

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180 mm

Spring length Rear: 180 mm

Spring Preload advised: 7-10 mm

1x Pair of Rear Lower Adjustable Camber Arm Kit (Left & Right)

1. Material: Steel, rubber

2. Installation location: Rear, Lower, Left, Right

3. Surface finish: Powder-Coated

4. Eye-to-eye Length range:525-570mm/20.67''-22.44''

5. Camber Adjustment: -1.0 To +3.0 Degrees

6.Bushing

Inner diameter、width: φ12、55.5mm

Outer diameter、width: φ32、32mm

7. Nuts: M18*1.5
