Coilovers compatible for BMW 3 Series E36 Saloon Coupe 1990-1998 316i 318i 323i 328i

This MaXpeedingRods part is suitable for BMW applications as listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introductionma Xpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),which offer you a lowered stance, and improved performance for your daily use vehicle.Application Suitable for BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; M3 (09/1990-12/1998)

Suitable for BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 323is; 325i; 328i; M3 (09/1991-04/1999)

Suitable for BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; M3 (03/1993-04/1999)

Suitable for BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)Specifications Front top mounts: pillow ball top mount with camber plate

Rear top mounts: pillow ball top mount

Damping adjustable: Not available

Camber adjustable: Available, front only

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 63-66 mm

Spring length Front: 180 mm

Spring length Rear: 183 mm

Spring Preload advised: 7-10 mm

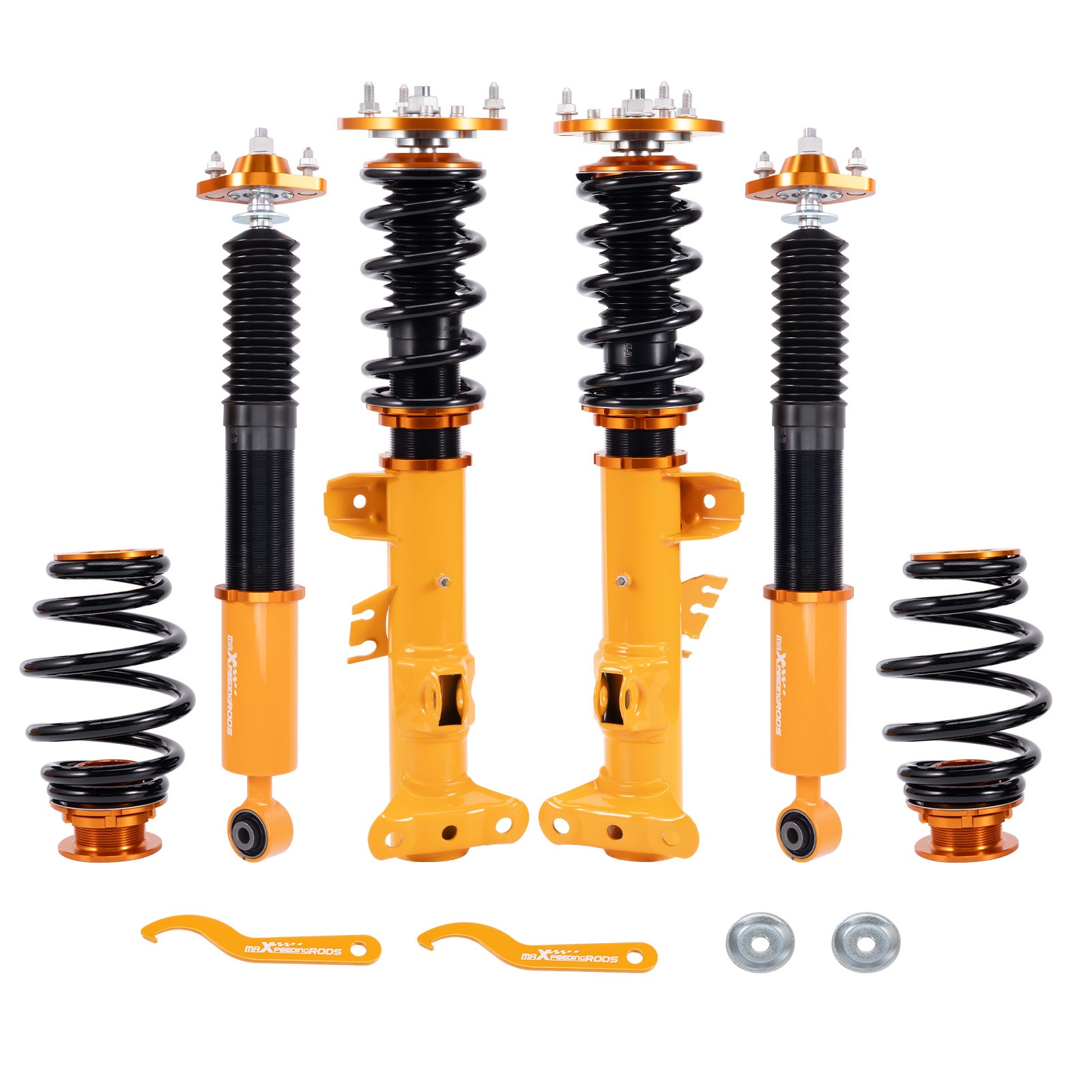

Color: Golden body with black spring Package included Package included：

2 x Front coil-overs

2 x Rear coil-overs

2 x C spanners Dimension Package Size: 71*51*21 cm

Weight: 27400 g Features1. Lowered height adjustment from 25-75mmwhich allow lower center of gravity and also add a more aggressive stance

2. Twin-Tube structure allows sufficient stroke within the shock absorber

3. Separate height adjustment does not affect damper stroke

4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

5. Height Adjustment tools included

6. Camber plate top mounts help to eliminate the need for a separate camber kit

7. Pillow ball top mount - It improves the steering feel and response

8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

9. Full rebuildable Note1.All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2.Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation.Any loose nuts, bolts, or locks will cause noise.Do check and tighten before serious problems happen.

3.Impact wrench is prohibited during the installation, it will loosen or damage the product.

4.Examine the clearance between tires and suspension.( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers.Caution: It is not sufficient with torsion beam trailing arm axles)

5.We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
