Coilovers Kits compatible for Toyota Corolla 09-17 E140 Suspension Shock 24 Ways Damper Adj Lowering Kit

This MaXpeedingRods part is compatible with Toyota applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup.You will experience better ride quality in all road conditions.Application Compatible with TOYOTA COROLLA(E140) AZE141L XRS 2009-2010

compatible with TOYOTA COROLLA(E140/E160) ZRE142L LE 2009-2013

compatible with TOYOTA COROLLA(E150/E170) ZRE172L all 2014-2019

compatible with TOYOTA MATRIX (E140)LE 2009-2014 Specifications Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.

Damping: 24 levels rebound damping adjustable

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Spring length Front: 200mm

Spring length Rear: 160mm

Adjustable height: lowering 1-3 inch

Coilover overall length Front: 360mm-455mm

Coilover overall length Rear: 313mm-370mm

Shock type: Twin tube

Spring Preload: 7-10 mm

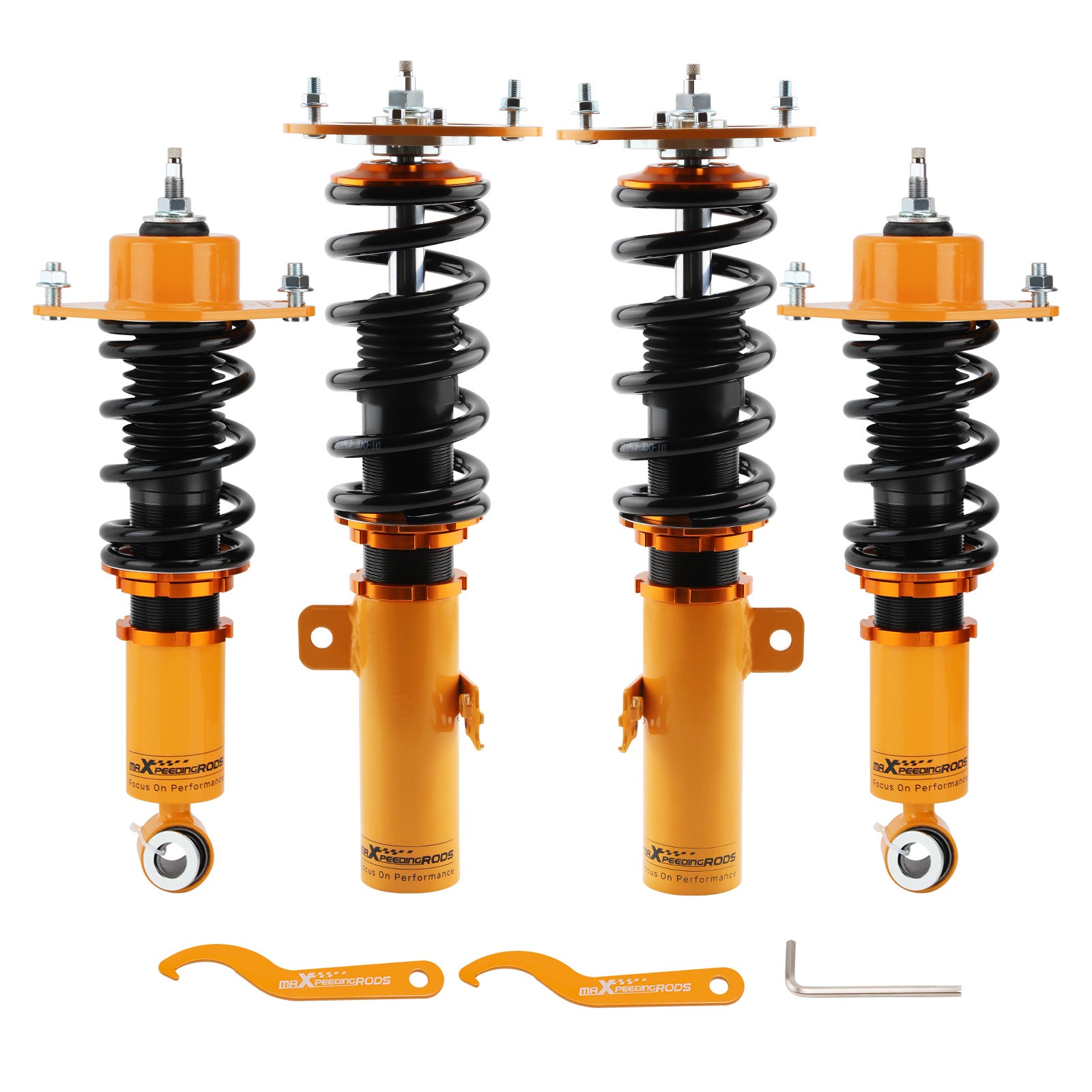

Color: gold Package includedproduct included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.Dimension Gross weight: 25.8kg

Package size: 63*51*21cm Features1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)

3.Pillow ball top mount - It improves the steering feel and response.（Only Front)

4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)

5. Twin-Tube structure allows sufficient stroke within the shock absorber.

6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

7. Separate height adjustment does not affect damper stroke.

8. Height can be adjusted with coilovers installed on the vehicle.

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

10. Height Adjustment tools included.

11. Full rebuildable.

12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.Notice Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.
