T25 T28 Turbo for GT25 GT28 GT2871 GT2860 Turbocharger with actuator wastegate

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check the part number, fit, and specifications before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adapter is needed).

Perfect for all 1.5L-2.0L engine, for all 4 cylinder

Horse Power: Boost Horse Power up to 350BHP

Specifications

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange

Exhaust Outlet Flange: 5-Bolt

Turbine Trim: 76

Turbine A/R: 0.64

Turbine Inducer Diameter: 53.8mm

Turbine Exducer Diameter: 47mm

Compressor Trim: 48

Compressor A/R: 0.60

Compressor Inducer Diameter: 49.2mm

Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float

Cooling Type: Water + Oil

Wastegate: with Wastegate

Oil Restrictor: Yes

Oil Restrictor size: inside diameter 2mm

Oil Feed Size: 12mm

Oil Inlet: M12*1.25

Oil Drain Size: 14mm

Oil Outlet: M14 & 2*M8*1.25

Oil Drain Thread Pitch: 40mm

Water Thread Size: M14*1.5

Horse Power: Boost Horse Power up to 350BHP

Warranty: one year for any manufacture defects

Accessories: You will get exactly as shown as picture above

Product Material

1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance

4. Capable of Boosting Horse Power up to 350 BHP.

===============================

*Product Features

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

About Turbo failure

The 6 most common failures are:

1. Oil starvation

2. Oil contamination

3. Impact damage

4. Blocked Engine breather

5. Over speeding of shaft and wheel

Common causes of turbocharger failure:

1. Improper Lubrication / Lack of maintenance

2. Foreign object damage Overspeeding

3. Excessive oil pressure

4. High mileage engine

5. Engine Lacks Power

The following situation indicate the turbo failure:

1. Black Exhaust Smoke

2. Excessive Engine Oil Consumption

3. Blue Exhaust Smoke

4. Turbo Noisy

5. Cyclic sound from turbo

6. Oil Leak from compressor seal

7. Oil Leak from turbine seal

highly suggest you find professional mechanic to help you install it, here are somecheck list before installation.

1. Replace oil supply lines and fittings. These lines often become plugged with decomposed oil which restricts oil flow and drainage.

2. Do not used silicone or thread tape

3. Make sure all openings to turbo are open and not plug or capped off.

4. Shut off fuel or disable ignition and crank the engine for at least 15 seconds or until oil pressure is raised

5. Allow engine to fast idle (1,000 RPM) for 3 - 5 minutes to allow turbo seals to seat

6. Always let engine idle for 3 -5 minutes before shut down, otherwise the turbo will continue to spin without oil lubrication and pressure

7.When changing oil, be sure to prime oil filter

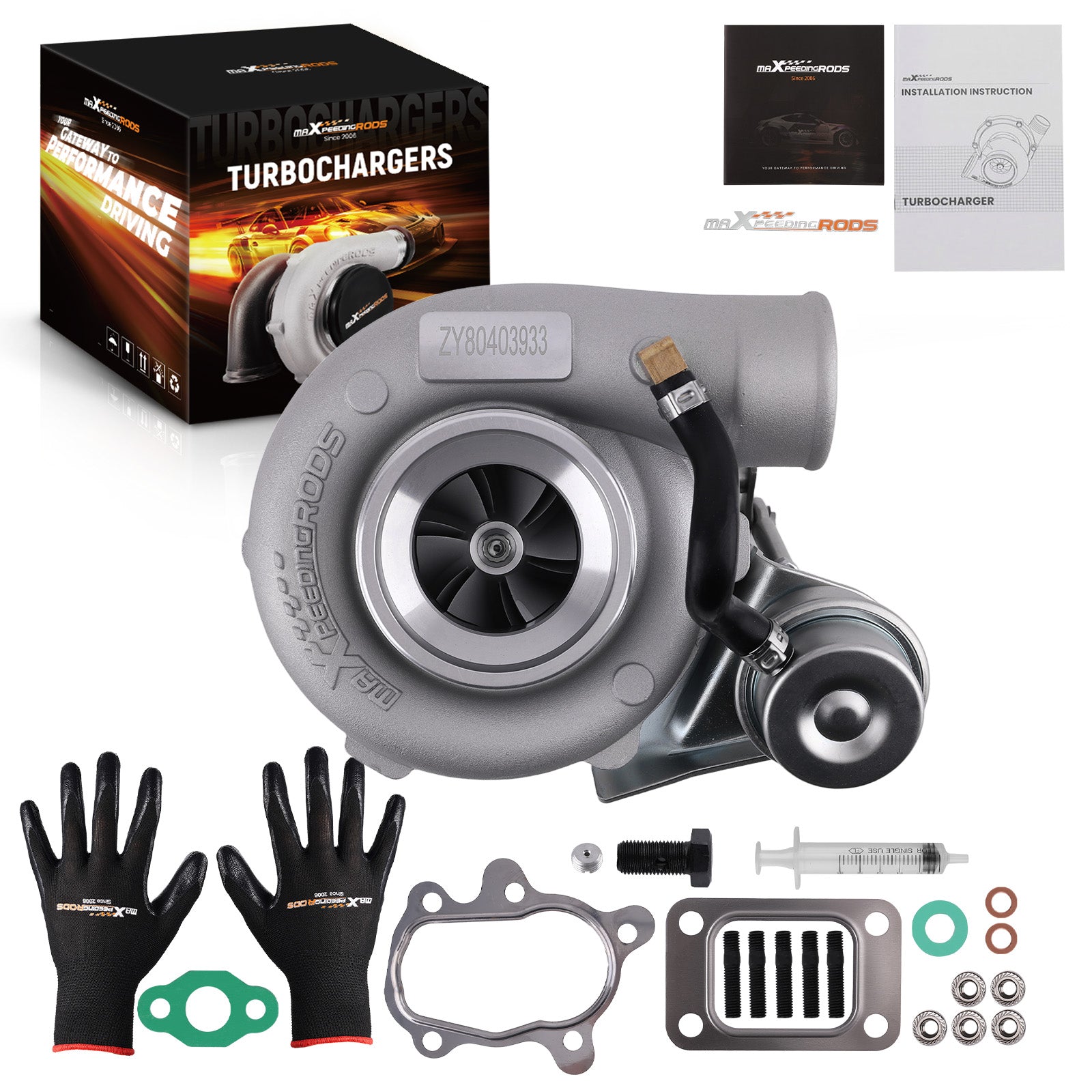

Package included

1x Turbocharger

2x Flange gaskets

2x Oil port gaskets

2x Water port gasket

1x Manual

1x Brochure

1x Sticker

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
