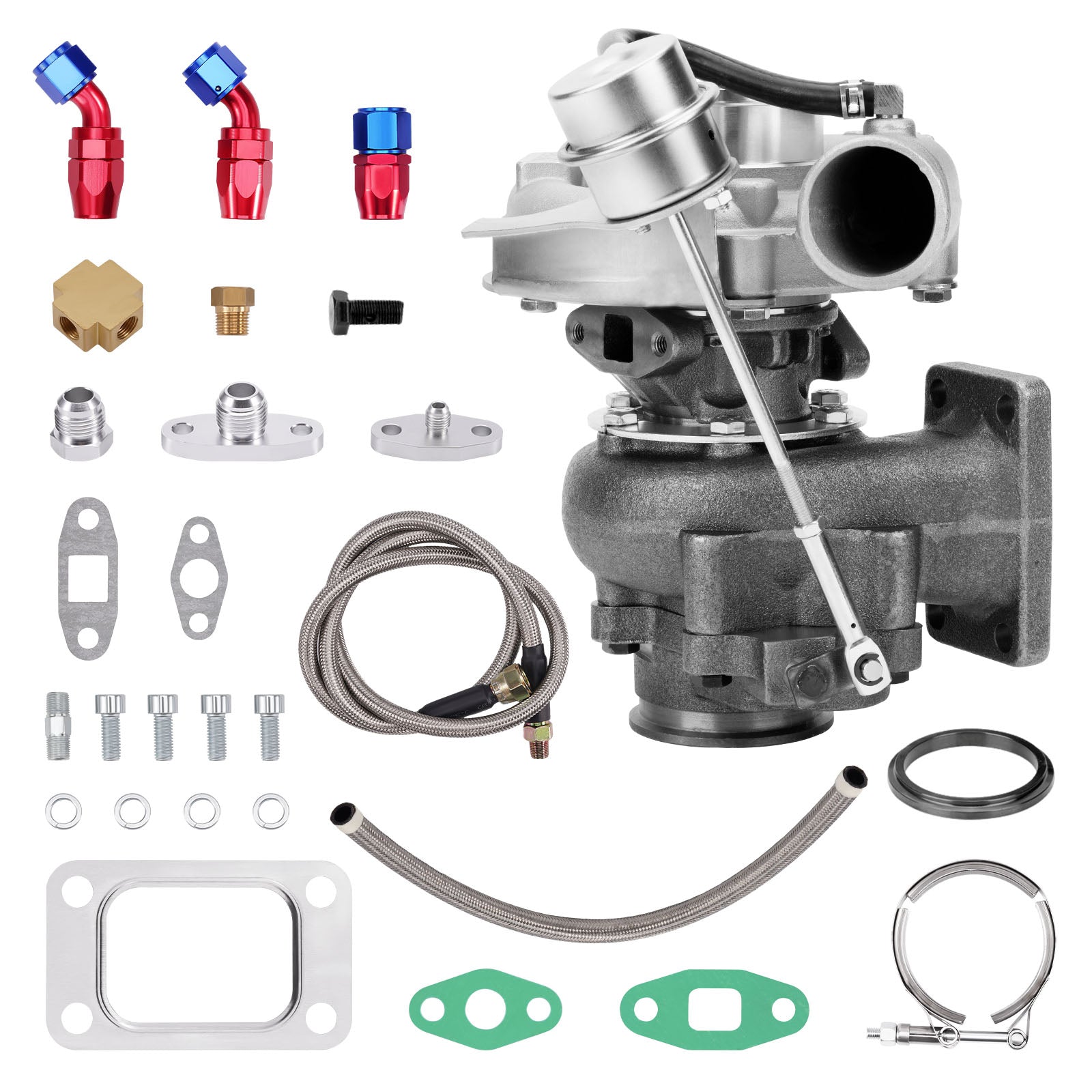

T3 T04E V-band Turbo Turbo 0.63 AR Oil Drain Return FEED Line Kit
T3 T04E V-band Turbo Turbo 0.63 AR Oil Drain Return FEED Line Kit
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
T3 T04E V-band Turbo Turbocharger 0.63 AR Oil Drain Return FEED Line Kit
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Benefits
- Based on original MaXpeedingRood's product information
- Suitable for direct replacement or performance upgrade
Application, Specifications, and Compatibility
Application Perfect for all 4 or 6 CYL, 2.0L-3.5L engines Horse Power: Capable of Boosting Horse Power up to 420HP Specifications Exhaust Inlet Flange: T3 4 bolt Flange Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")Turbine Side:Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust outlet : 79mm Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)Compressor Side:Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet:78 mm Compressor inlet:51.5 mm Oil Inlet: M12*1.25 & 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Cooling Type: Oil Cooled Wastegate: w/ Wastegate Thrust Bearings: 270 Degrees Hosepower: Up to 420 HP* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm Notice* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))* For any other question, please contact us by e-mail
.jpg?x-oss-process=image/auto-orient,1/quality,q_70/resize,m_mfit,w_1000,h_1000)
A:Hallo, Wenn Ihr Modell Petrol Estate /Petrol Saloon 1995cc 100KW/1995cc 105KW ist, kann es angepasst werden. Bitte überprüfen Sie es erneut. mfG.
Answer
*Please select a category!
Geben Sie Ihr Reiseziel ein, um eine Versandschätzung zu erhalten.
warranty
T3 T04E V-band Turbo Turbocharger 0.63 AR Oil Drain Return FEED Line Kit
This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.
Benefits
- Based on original MaXpeedingRood's product information
- Suitable for direct replacement or performance upgrade
Application, Specifications, and Compatibility
Application Perfect for all 4 or 6 CYL, 2.0L-3.5L engines Horse Power: Capable of Boosting Horse Power up to 420HP Specifications Exhaust Inlet Flange: T3 4 bolt Flange Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")Turbine Side:Turbine Trim: 74.2 Turbine A/R: 0.63 Turbine Inducer: 64.8mm Turbine Exducer: 55.8mm Turbine exhaust outlet : 79mm Turbine exhaust inlet: 44.7mm (length) /85.8mm (width)Compressor Side:Compressor Trim: 48.1 Compressor A/R: 0.5 Compressor Inducer: 52.7mm Compressor Exducer: 76mm Compressor outlet:78 mm Compressor inlet:51.5 mm Oil Inlet: M12*1.25 & 2*M8*1.25 Oil Outlet: 2*M8*1.25 Bearing: Journal Bearing Cooling Type: Oil Cooled Wastegate: w/ Wastegate Thrust Bearings: 270 Degrees Hosepower: Up to 420 HP* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm Notice* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us* This is universal application turbo, so modification might be required for some vehicles* Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))* For any other question, please contact us by e-mail
