T3 T4 T04E Stage III T04E Turbo Charger Upgrade Kit w/ BOV compatible for Ford Focus 03-07

This MaXpeedingRods part is suitable for Ford applications where specified. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

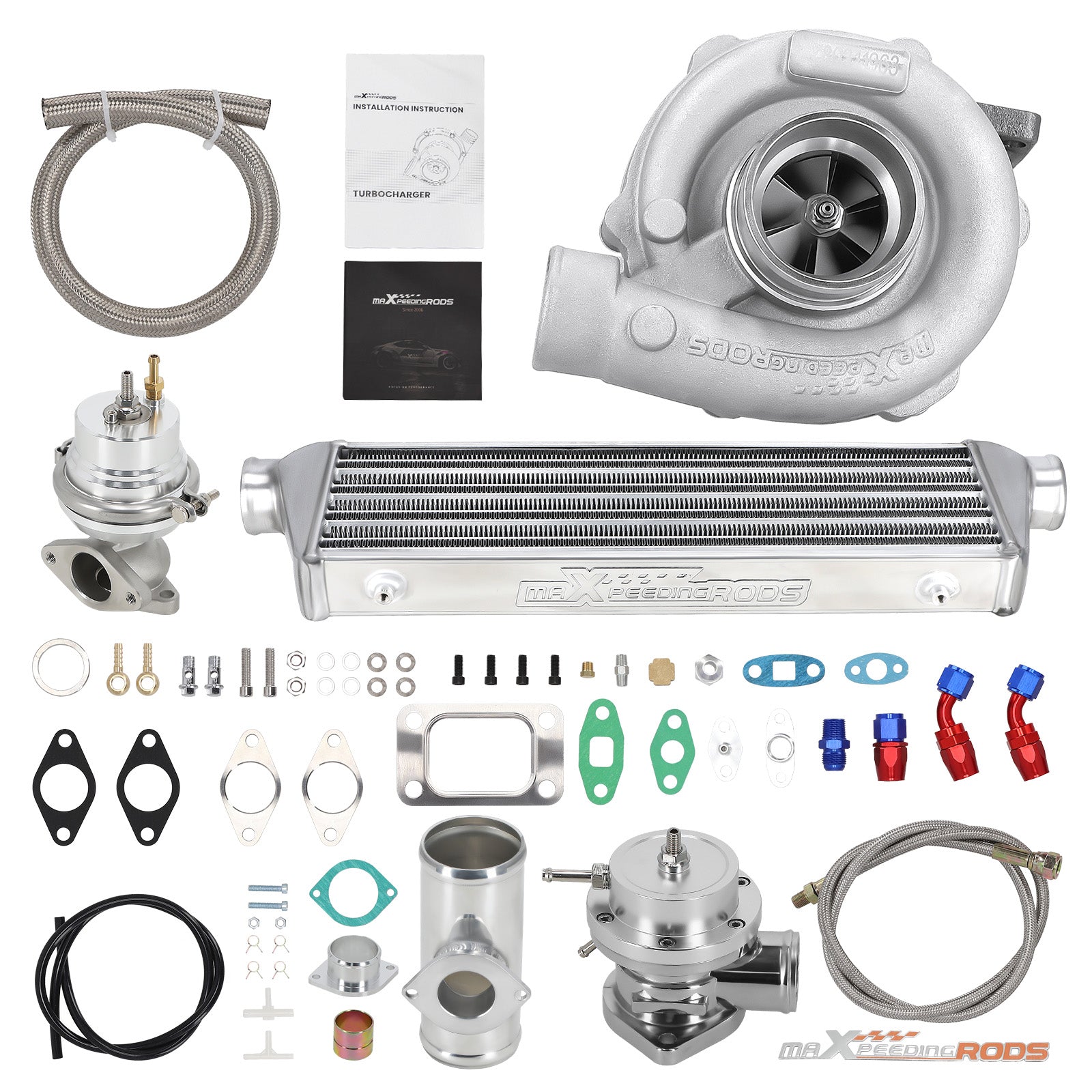

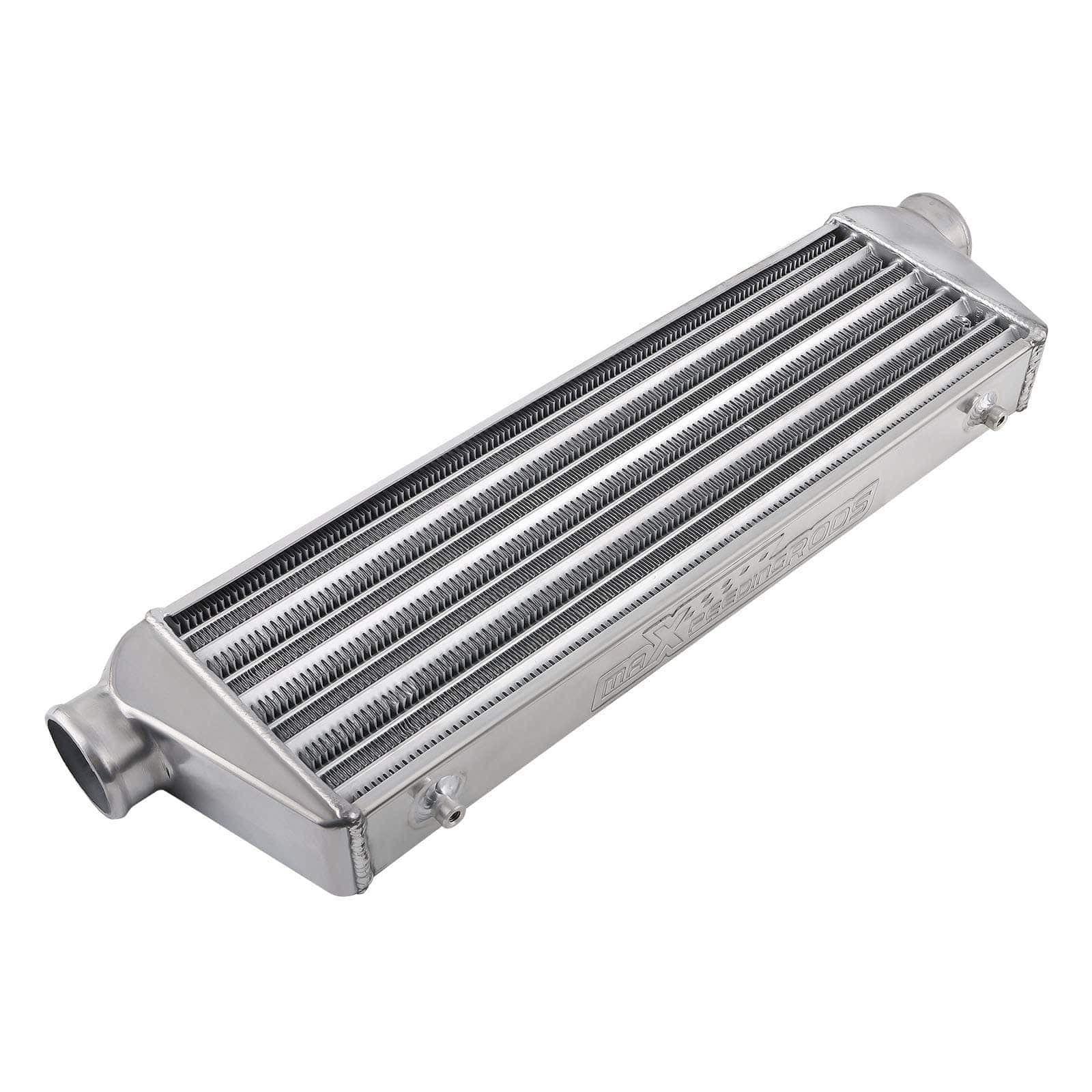

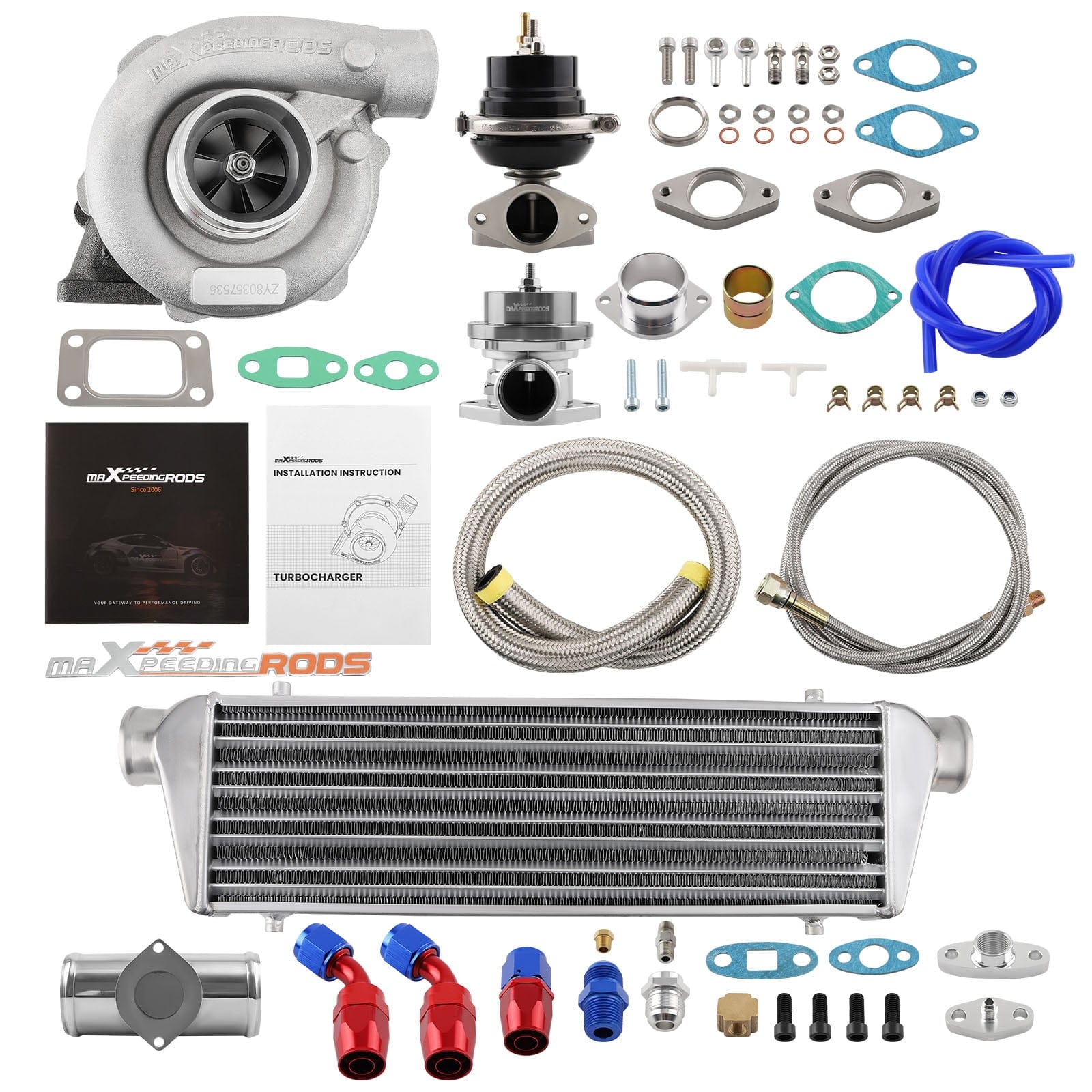

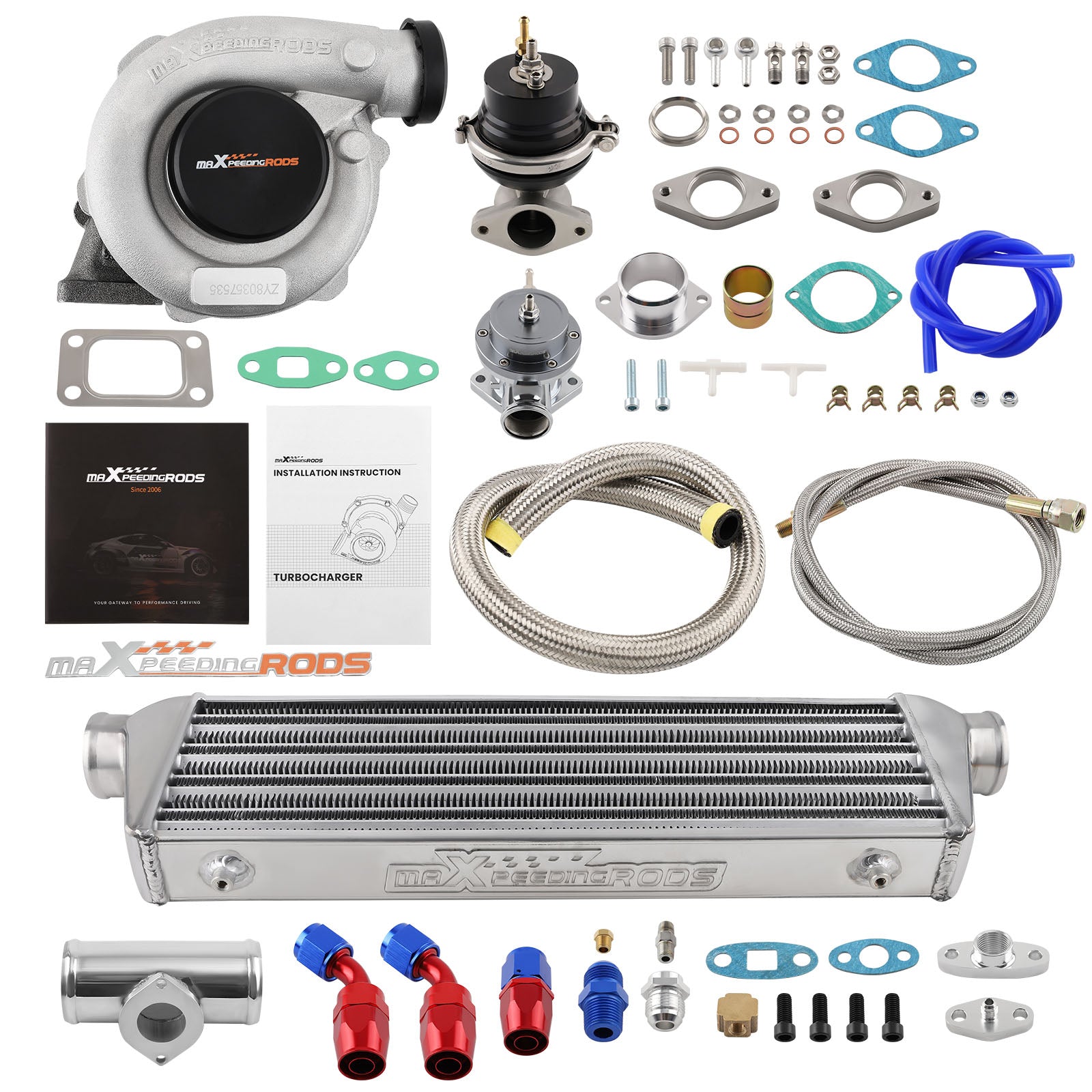

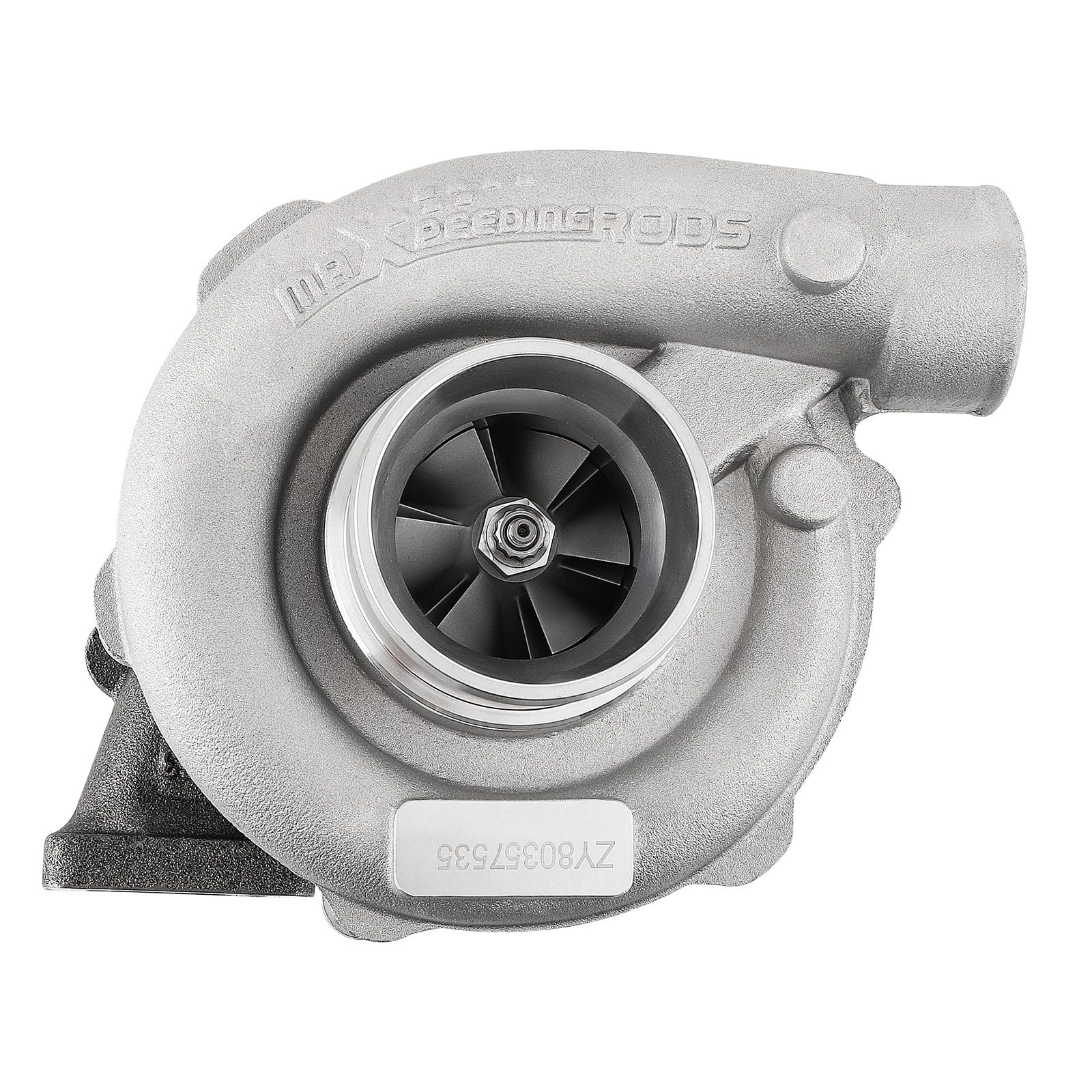

Application Universal Turbo Kit Perfect For 1.5L-3.0L engine This Kit Will be able to add 350+HP at 7.5-14.5 PSI.(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)*Notice:Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.Specifications Turbine Side:Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns Exhaust Outlet pipe Flange: 5 bolt Flange Turbine Trim: 74.2 Turbine Inducer Diameter: 64.8 mm Turbine Exducer Diameter: 55.8mm Turbine A/R: 0.63 Compressor Side:Compressor Trim: 48.1 Compressor Inducer Diameter: 52.7mm Compressor Exducer Diameter: 76 mm Compressor A/R: 0.5 Compressor Inlet Diameter: 72mm(2.8")Compressor Outlet Diameter: 53mm（2"）Bearing Type: Wet Float Bearing Cooling Type:Oil Cooling Thrust Bearing:270 degree Horsepower:Up to 400HPOil Inlet: M12*1.25 2*M8*1.25 Oil Outlet:2*M8*1.25 Maximum Oil Pressure: 1.31 Bar Kit Spring Rate: 14.5 PSITurbo Type:Individual Condition: 100% Brand New Accessories: You will get exactly as shown as picture above Other specification in the kit :*1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.Support up to 350 hp for this small intercooler size - tube and fin style .Intercooler core size: 21*7*2.5*1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost!*1 x BOV pipe: can install anywhere suitable*1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit*1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.*1x 5 Bolt pipe: 2.5" t3/t4 5-bolt stainless steel TIG welded pipe. pipe length: 13“Package Size:77x 41 x 32 cm Package Weight: 15950g Features1.Turbo charger: *Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃*Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃*Compressor housing：ZL104 aluminum with lightweight*Compressor wheel/blades：Cast aluminium blades – superior air tightness corrosion resistance*Product Performance Cost-effective turbo increase 20-40% power for your car Rich experience in turbo production and own factory High-Speed oil seal ring and Precision clearance Built for durability and strength* Technology Advantage:100% balancing Test by TURBOTECHNICS VSR3G3-min-Flow VNT Turbo testing Advanced Actuator Tester/Programmer2. Intercooler* core size:21*7*2.5 cools down the turbocharged air efficiently* Lightweight aluminum racing intercooler，* Strong TIG welds will support high PSI levels 3. Turbo Oil returen /Feeding line kit* Stainless Steel Braided* Includes complete install kit* It helps circulate oil from the turbo charger to the oil pan.* The kit provides a anodized look* gives a best cooling on your turbo and long lasting life.4.Blow Off Valve Kit* CNC Billet Aluminum Type RS Style Blow off Valve* Easy Mount Piping Set Included For Bolt-On.* Including all necessary hardwares.* easily adjustable to prevent both permature boost leakage and compressor surge.* Fast response One For Low And High Boost Pressure.* Performance design produces a powerful and aggressive sound* Quality design will not leak under high boost conditions* Flanges can be installed at user discretion5. 38MM Wastegate* Most reliable wastegates For competition vehicles.* accurate boost control* high quality appearance features Dual port design* comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.6. BOV pipe/Adapter* can install anywhere suitable Package Include1x Turbocharger1x Oil Feed / Return Line1x 35/38mm Wastegate1x Turbo Intercooler1x Type-S Blow Off Valve(Random Color)1x BOV Adapter/pipe1x Manual1x Brochure1x Sticker Note* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.* Make sure the oil drain line is lower than the turbo itself.* Ensure exhaust outlet are well sealed by welding* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )Warranty: one year warranty for any manufacturing defect
