Throttle Body Inlet Manifold Flap compatible for Audi Seat VW 03G128063C 1.9 2.0 TDI

This MaXpeedingRods part is suitable for Audi, Volkswagen, Seat applications where mentioned. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

About Throttle Body

The throttle body is a valve that controls how much air the engine takes in. It is connected to the air filter on the top and the engine block on the bottom, which is called the throat of the car engine. There are two types of throttle valves, traditional cable type and electronic throttle.

The traditional engine throttle control mechanism works through a cable (soft wire) or a tie rod, one side is connected to the accelerator pedal, and the other side is connected to the throttle linkage plate.

According to the energy required by the engine,the electronic throttle mainly uses the throttle position sensor to control the opening angle of the throttle so that it can adjust the amount of intake air.

Application:

Suitable for AUDI

Suitable for AUDI A4 (8E2, B6) 1.9 TDI 04.04-09.04 85 116 1896

Suitable for AUDI A4 (8EC) 1.9 TDI 11.04- 85 116 1896

Suitable for AUDI A4 (8EC) 2.0 TDI 05.06-08.07 125 170 1968

Suitable for AUDI A4 (8EC) 2.0 TDI 02.07-08.07 103 140 1968

Suitable for AUDI A4 (8EC) 2.0 TDI 02.07-08.07 100 136 1968

Suitable for AUDI A4 (8EC) 2.0 TDI 16V 11.04- 103 140 1968

Suitable for AUDI A4 (8EC) 2.0 TDI quattro 01.06- 103 140 1968

Suitable for AUDI A4 (8EC) 2.0 TDI quattro 05.06-08.07 125 170 1968

Suitable for AUDI A4 Avant (8E5, B6) 1.9 TDI 06.04-12.04 85 116 1896

Suitable for AUDI A4 Avant (8ED) 1.9 TDI 11.04- 85 116 1896

Suitable for AUDI A4 Avant (8ED) 2.0 TDI 02.07-08.07 103 140 1968

Suitable for AUDI A4 Avant (8ED) 2.0 TDI 02.07-08.07 100 136 1968

Suitable for AUDI A4 Avant (8ED) 2.0 TDI 05.06-08.07 125 170 1968

Suitable for AUDI A4 Avant (8ED) 2.0 TDI 16V 11.04- 103 140 1968

Suitable for AUDI A4 Avant (8ED) 2.0 TDI quattro 01.06- 103 140 1968

Suitable for AUDI A4 Avant (8ED) 2.0 TDI quattro 05.06-08.07 125 170 1968

Suitable for AUDI A4 Convertible (8H7, 8HE) 2.0 TDI 01.06- 100 136 1968

Suitable for AUDI A4 Convertible (8H7, 8HE) 2.0 TDI 11.05-04.07 103 140 1968

Suitable for AUDI A6 (4F2) 2.0 TDI 01.06-11.07 100 136 1968

Suitable for AUDI A6 (4F2) 2.0 TDI 06.04-11.07 103 140 1968

Suitable for AUDI A6 Avant (4F5) 2.0 TDI 09.05-06.06 89 121 1968

Suitable for AUDI A6 Avant (4F5) 2.0 TDI 06.05-11.07 103 140 1968

Suitable for AUDI A6 Avant (4F5) 2.0 TDI 06.05- 100 136 1968

Suitable for SEAT

Suitable for SEAT ALTEA (5P1) 1.9 TDI 05.04-07.07 77 105 1896

Suitable for SEAT LEON (1P1) 1.9 TDI 07.05- 77 105 1896

Suitable for SEAT TOLEDO III (5P2) 1.9 TDI 01.05-07.07 77 105 1896

Suitable for VW

Suitable for VW PASSAT (3B3) 2.0 TDI 12.03-05.05 100 136 1968

Suitable for VW PASSAT Variant (3B6) 2.0 TDI 12.03-05.05 100 136 1968

OEM & Part Number

03G 128 063, 03G 128 063 C,03G 128 063 J, 03G 128 061 A

03G128063, 03G12 063C,03G128063J, 03G128061A

Description

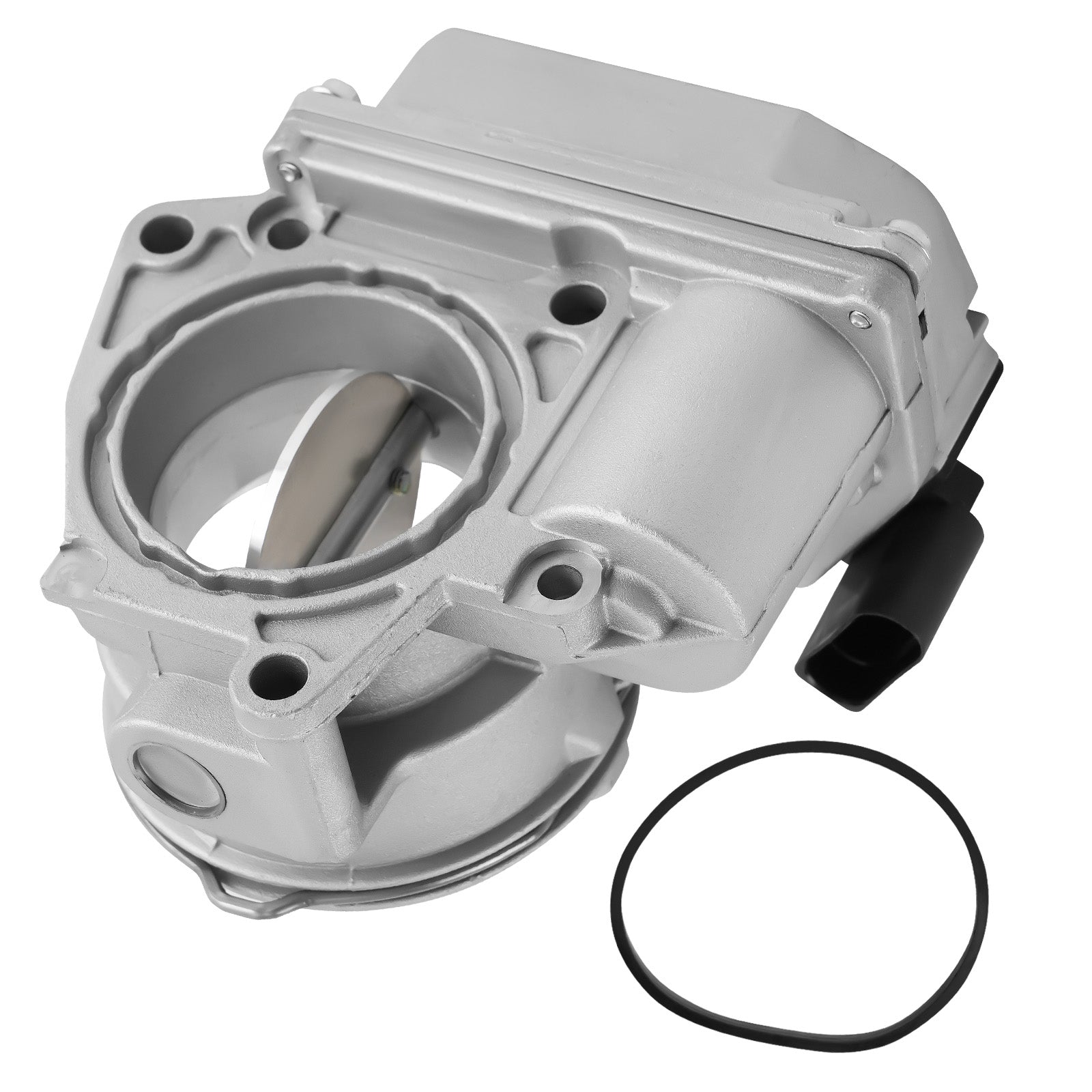

Brand New Electronic Throttle Body Assembly

This Throttle Body is manufactured and tested to the strictest OE standards for unparalleled performance

Built for trouble-free ownership and 100% visually inspected and quality tested

100% electrically tested prior to leaving the factory

100% factory test

Top quality Aftermarket part

Professional Installation is Highly Recommended

Instruction Included. (If not, we could offer you the E-book version. )

Connector Type: 4 Pin

Warranty NOTE:

Please confirm your old part number matches up with one of the part numbers above

Professional installation is highly recommended (Instruction Included. (If not, we could offer you the E-book version. ))

For any needs please contact us

Please note:

Please carefully check the OEM number of your original one which is same as this one, that's is very important to buy correct item in this way.If you are not sure,please feel free to contact us.
