Turbocharger Turbo K04 023 compatible for Audi S3 1.8L 53049700023 06A145704Q 1999-2003

This MaXpeedingRods part is suitable for Audi applications where stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Please note: This turbo has temp sensor hole on the exhaust housing

Turbo Model :K04-023, K04-2275ECD5.82KCAXH, K04

Engine: for BAM, BAM BFV,AMK

Cooled Type:Water Cooling

Bearing Type: Floating Bearing

Hosepower: Up to 237HP

Condition: Brand New

Package size: 26*24*23 cm Weight: 6.5 kg

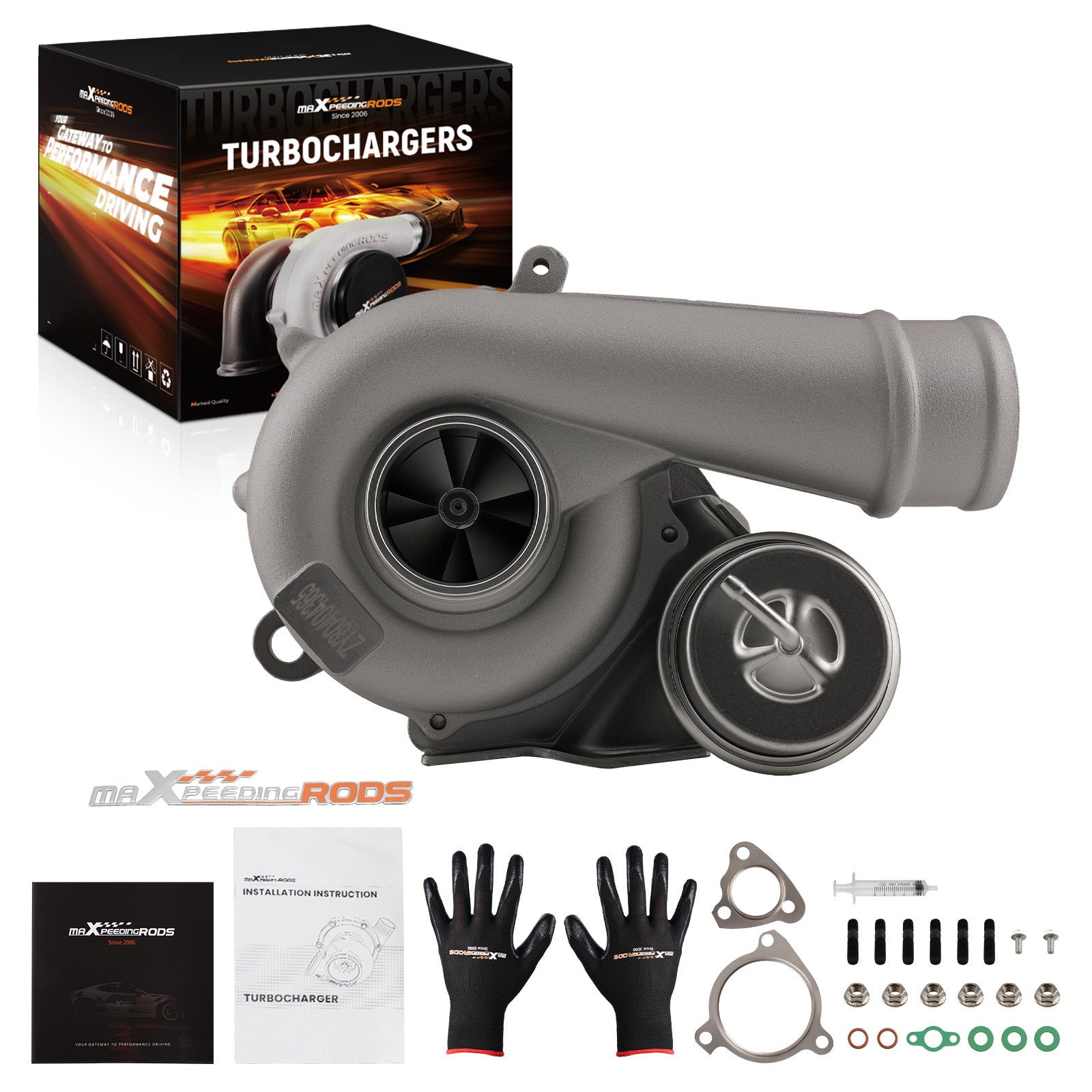

Accessories: You will get exactly as shown in the picture above

Part Number & OEM Number

06A145704Q, 06A145704QV, 06A145704QX, 06A145702F, 06A145702FX, 06A145702FV

53049700023, 53049880023, 5304-970-0023, 5304-988-0023, 53049500011

Applications

Suitable for Audi A3 (8L1)S3 quattro03.1999 -04.2002 154 kw, 210 PS, for AMK

Suitable for Audi A3 (8L1)S3 quattro, 10.2001-05.2003, 165 kw, 224 PS, BAM

Suitable for Audi TT (8N3), 1.8 T quattro, 10.1998 - 06.2006, 165kw, 224 PS, BAM

Suitable for Audi TT (8N3), 1.8 T quattro, 03.2005 - 06.2006, 177 kw, 240 PS, BFV

Suitable for Audi TT Roadster (8N9), 1.8 T quattro, 10.1999 - 06.2006, 165 kw, 224 PS, BAM

Suitable for Seat LEON (1M1), 1.8 T suitable for Cupra R, 02.2002 -06.2006, 154 kw, 209 PS, for AMK

Suitable for Seat LEON (1M1), 1.8 T suitable for Cupra R, 07.2003 - 06.2006, 165 kw, 225 PS, BAM

Features:

*Product Material

1. Turbine housing: Ductile iron qt450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. Quality assurance

4. High-Speed oil seal ring

5. Strict quality inspection

6. Precision clearance

*All necessary gaskets included for ease of installation

Notice

* Warranty: one year

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreignbodies in the intake area, crankcase ventilation without function, etc.)!
