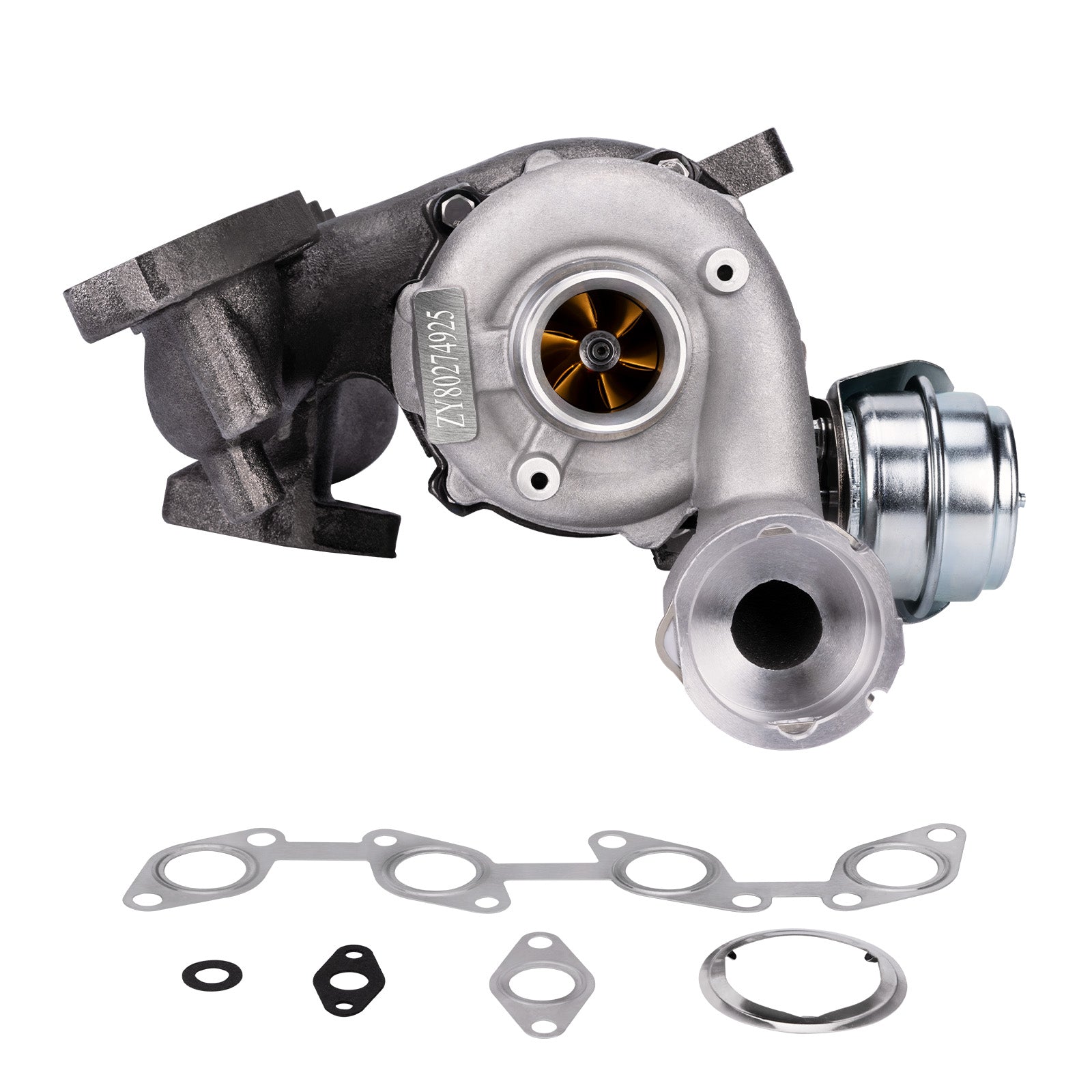

Turbo Turbocharger compatible for Audi A3 VW Passat compatible for Golf MK5 2.0 TDI BKD AZV Billet Wheel

This MaXpeedingRods part is suitable for Audi applications where listed. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications and Compatibility

Application Suitable for Audi A3 140HP 103KW 2.0T DI BKD/AZV 2003-2008,

suitable for Seat Altea 136hp 100kw 2.0T DI BKD/AZV 2004-2007,

suitable for Seat Leon 136hp 100kw 2.0T DI BKD/AZV 2005-2007,

suitable for Seat Toledo III 136hp 100kw 2.0T DI BKD/AZV 2004-2007,

suitable for Skoda Octavia II 136hp 100kw 2.0T DI BKD/AZV 2004,

suitable for VW golf 136hp 100kw 2.0T DI BKD/AZV 2003-2009,

suitable for VW Passat B6 140hp 103kw 2.0T DI BKP 2005-2008,

suitable for VW Passat B6 136hp 100kw 2.0T DI BKD/AZV 2005-2008,

suitable for VW Touran 136hp 100kw 2.0T DI BKD/AZV 2003-,

Please note：

*This turbo DO NOT fit Audi A3 2.0 2008- Can Not replace bv43 type

*Suitable for VW Passat140HP 2.0L BKD/AVZ/ BKP ENGINE, DO NOT fit for VW Passat140HP 2.0L BMP / BMM ENGINEOE-/Part number724930,

724930-1,724930-0001,724930-5001S,724930-2,724930-0002,724930-5002S,

724930-4,724930-0004,724930-5004S,724930-6,724930-0006,724930-5006S,

724930-8,724930-0008,724930-5008S,724930-9,724930-0009,724930-5009S,

724930-10,724930-0010,724930-5010S,724930-12,724930-0012,724930-5012S,

03G253019A,03G253019AV,03G253019AX,03G253019AV550,

03G253010J,03G253010JV,03G253010JX,

03G253014H,03G253014HX,03G253014HVSpecifications Turbo Model：For GT1749V，Not for BV43 Type

Engine Code：BKD/AZV/ BKP

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower:136hp,140hp

Turbo Type:Individual/VNT

Universal Fitment:No

Finish:Matte

Condition: 100% Brand New

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size:40x33x 23.5 cm

Package Weight: 8880g Package included1x Turbocharger

1x Adapter

2x Flange gaskets

5x Bolts&Nuts

2x Screws

2x Washers

1x Manual

1x Brochure

1x Sticker Features*Product Material

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistanceupto 1000℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Billet compressor wheel：forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product Performance

1. OEM fitment turbo with upgraded material and performance

2. Excellent high temperature resistance，high efficiency and durability

3. Rich experience in turbo production and own factory

4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2.G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
