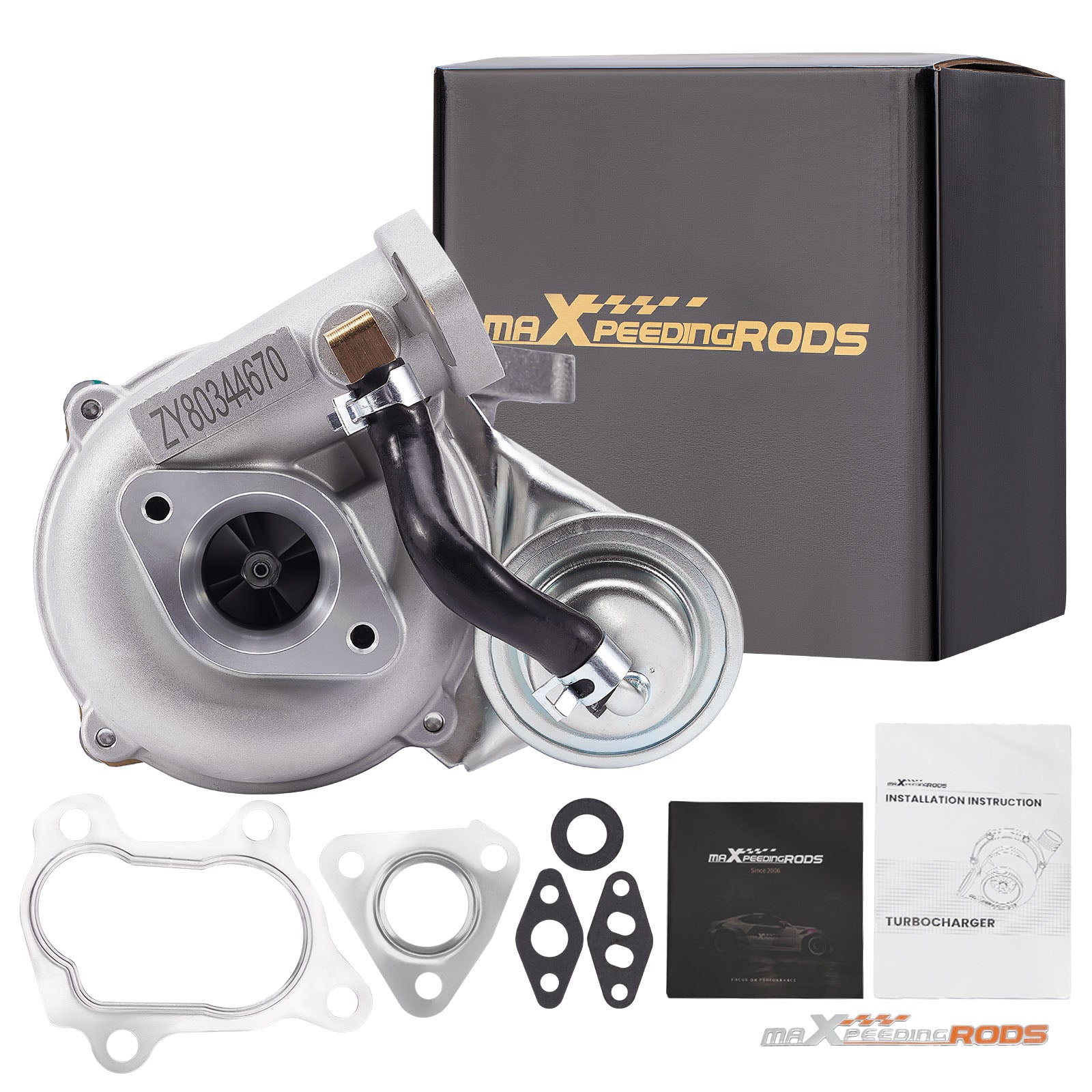

Turbo for Snowmobiles Quads Rhino Motorcycle 4X4 vehicle VZ21 RHB31 TURBINE

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application

Compatible for Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm100HP,

Suitable for Suzuki ALTO Works with YA1 F6AT Engine,

Suitable for Suzuki ALTO Works with 21R707-0011-G1 Engine

Turbo Part Number:

VZ21,13900-62D51, 1390062D51,

1390062D50, 13900-62D50, VE110069

Specifications

Turbo Model : RHB31

Engine : YA1, F6AT, suitable for Isuzu 4TNA, 21R707-0011-G1 Engine

Cooled Type: water and oil cooled

Bearing Type: Journal Bearing

Thrust Bearings: 360 Degrees

Fit for : 500 cc to about 1000cc

Internal-wastegate: 15psi

Horse Power: 23-100HP

Compressor Exducer: 37.1mm

Compressor Inducer: 24.2 mm

Compressor Trim: 42.5

Compressor A/R: 0.7

Turbine Inducer: 35mm

Turbine Exducerr:26.7mm

Turbine Trim: 58.2

Turbo Type: Individual

Universal Fitment: Yes

Finish: no

Condition: Brand New

Package Size:26x 25 x 23 cm

Package Weight: 3400g

Accessories: You will receive the parts exactly as shown in the picture above

Features

Product Material:

1. Turbine housing :Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel:Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing:ZL104 aluminum with lightweight

4. Compressor wheel/blades:Cast aluminium with good gas tightness and corrosion resistance

*Product :

1. OEM-quality and size with little modification

2. Rich Experience In Turbo Production And Own Factory

3. Quality Assurance

4. High Rotor

5. High-Speed Oil Seal Ring

6. Strict Quality Inspection

7. Precision Clearance

8. High-speed Accessories

*All necessary gaskets included for ease of installation

Please note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
