Universal Turbo Kit Perfect For 2.5-6.0L engine for GT35 GT3582 Turbo compatible for Charger

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications, and compatibility

Application Universal Turbo Kit Perfect For 2.5-6.0L engine

This Kit Will be able to add 400+HP at 7.5-14.5 PSI.

(You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)Specifications1x for GT35 Turbo charger

Exhaust Inlet (Turbo Manifold) Flange: T3

Flange Exhaust Outlet (pipe) Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Bearing Type: Floating Bearing

Cooling Type: Water + Oil

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Wastegate：External Wastegate

Oil feed/inlet: M10*7/16-24

Oil drian/outlet: 2*M8*1.25

water inlet/outlet: M14* 1.5

Maximum PSI：22

Turbocharger Overall size: 230*180*240

1x intercooler

Overall Size 27'' x 7'' x 2.5'' inch.

core size:21*7*2.5

Inlet size is 2.5 inch.

1 x Blow Off Valve: CNC Billet Aluminum Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe.25PSi Boost! Can hold up to 1000+ HP.

1 x35/38MM Wastegate: 35/38mm External Waste Gate Kit

1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the turbo charger to the oil pan.

Material: Stainless Steel Braided

1x Tachometer

1 X BOV pipe: can install anywhere suitable

1x 5'' 4 in 1 Tachometer:

Water Temp Unit Type: Celsius

Water Temp Display Range: 40~120 Celsius

Oil Temp Unit type: Celsius

Oil Temp Display Range: 50~150 Celsius

Oil Pressure Unit Type: Bar

Oil Pressure Display Range: 0~7 Bar

Thread Size of Sensors: 1/8NPT

1x Heat shield branket

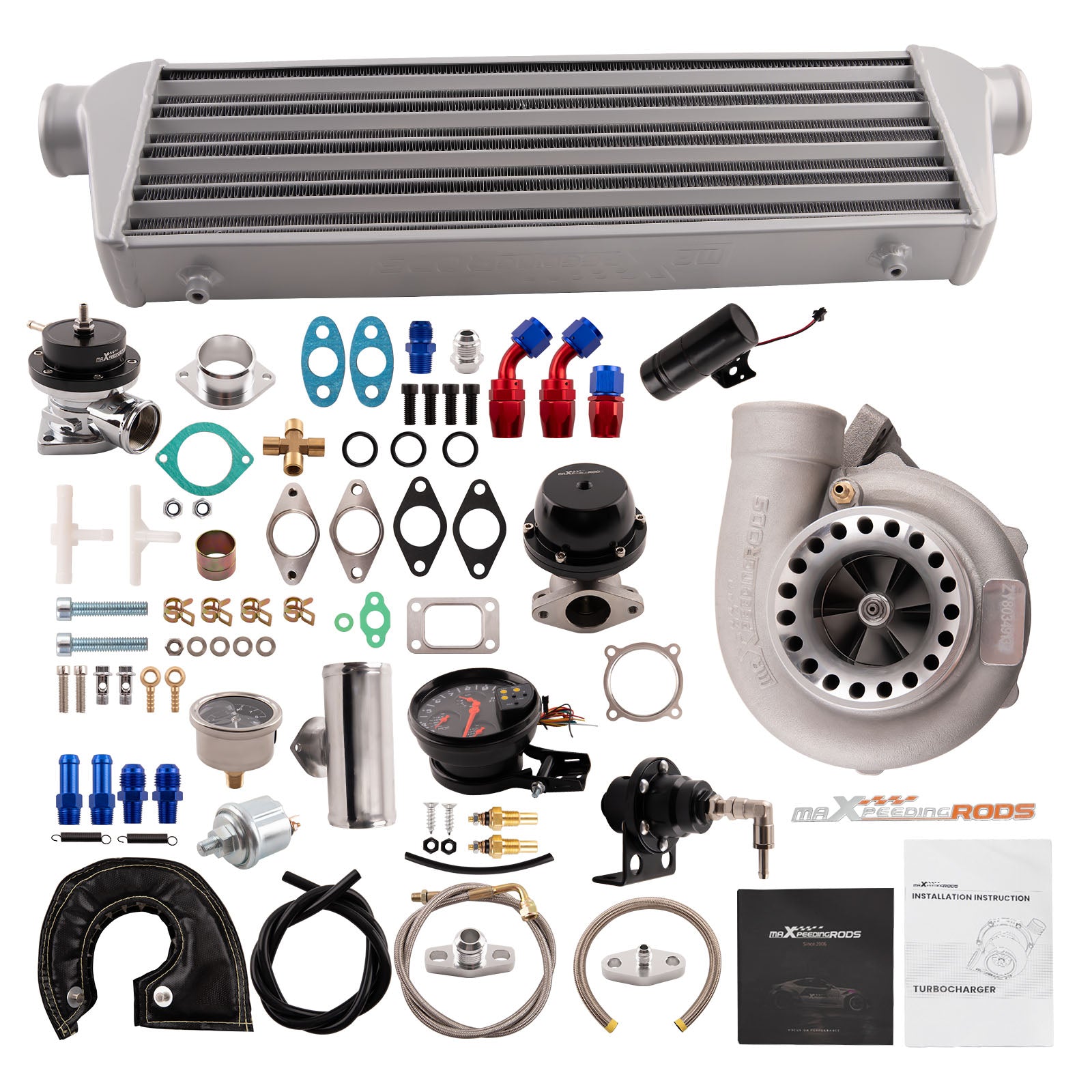

Titanium and Carbon Fiber high temperature wrap: 2500°F max Package included1x for GT35 Turbocharger

1x Turbo Intercooler

1x Oil Feed / Return Line

1x Blow Off Valve

1x 35/38mm Wastegate

1x Tachometer

1x BOV Adapter

1x 5" 4in1 Tachometer

1x Heat shield branket Features1.For GT35 Turbocharger:* Capable of Boosting Horse Power up to 400+ HP * Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃* Cast aluminium blades with good gas tightness and corrosion resistance. 2. Intercooler * core size:21*7*2.5 cools down the turbocharged air efficiently * Lightweight aluminum racing intercooler， * Strong TIG welds will support high PSI levels3. Turbo Oil returen /Feeding line kit* Stainless Steel Braided * Includes complete install kit *It helps circulate oil from the turbo charger to the oil pan.* The kit provides a anodized look4.Blow Off Valve Kit* CNC Billet Aluminum Type RS Style Blow off Valve* Including all necessary hardwares.* easily adjustable to prevent both permature boost leakage and compressor surge.* Fast response One For Low And High Boost Pressure.* Quality design will not leak under high boost conditions * Flanges can be installed at user discretion5. 38MM Wastegate * Most reliable wastegates For competition vehicles. * accurate boost control* high quality appearance features Dual port design * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.6. Tachometer7.BOV Adapter * can install anywhere suitable8.5'' 4 in 1 Tachometer: * Comes with All the Wiring Necessary for Installation.* All Accessories are Included for Installation. * Back lit for use at night time9.Heat shield branket Note* Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )

* we will not be responsible for man-made installation damage.
