Universal Weld-On Parallel 4 Link Suspension Kit for Rod Rat Truck Car Air Ride

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application:

for universal Rat Truck Car Air Ride;

for Truck Classic Car Air Ride

Specifications:

Package dimensions：71*20.5*20 cm

Package Weight: 19.7 kg

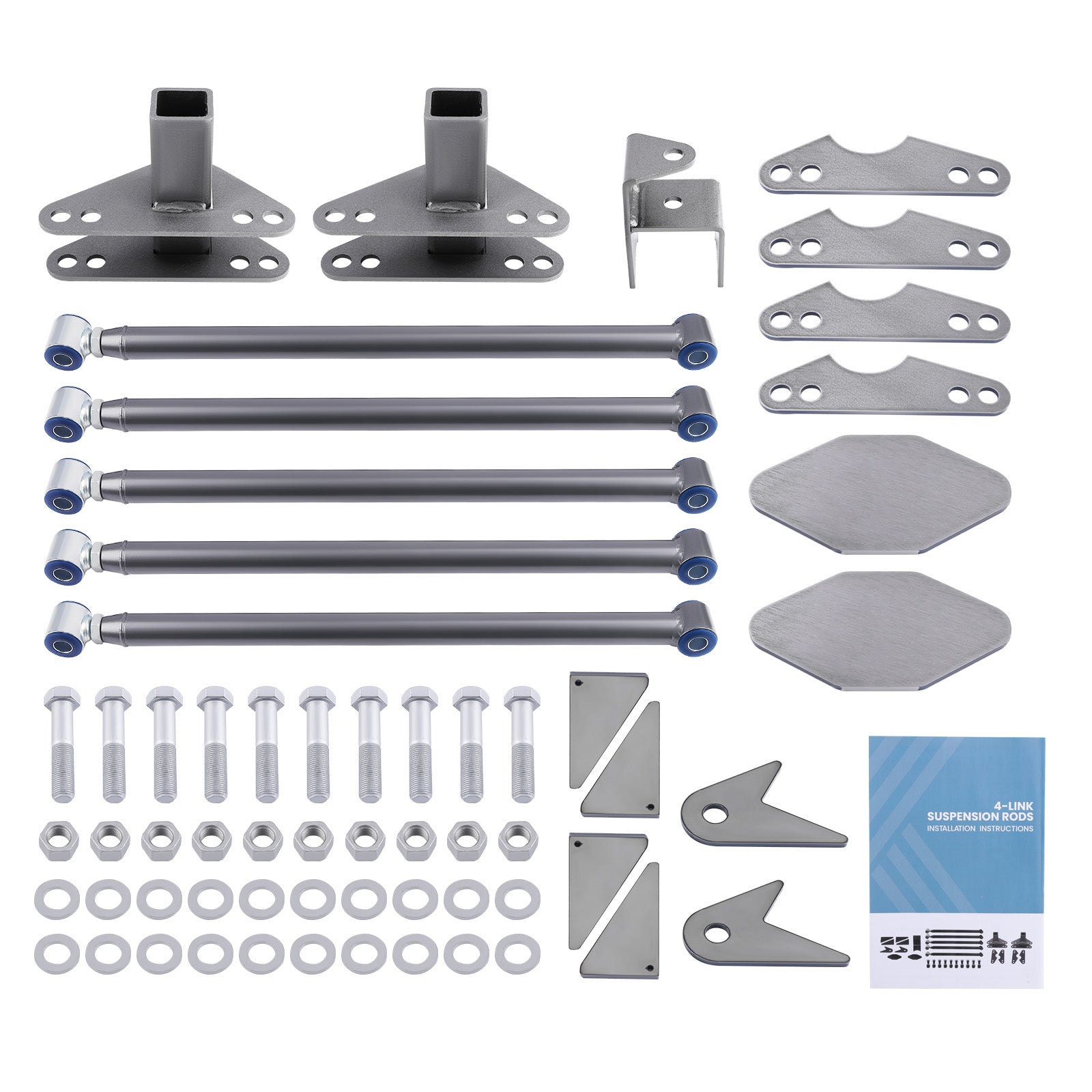

Included:

4 - Heavy Duty 24" Steel Bars

4 - Zinc Plated Steel Rod Ends W/ Urethane Bushings

2 - Steel, Weld-On Axle Mounts

2 - Steel, Weld-On Fame Mounts

4 - Steel, Weld-On Center Link Axle Mounts

10-5/8" Button Head Cap Screw Hardware with Nylon lock nuts

1 - Pan Hard Bar 24.00" Long

1- Weld-On Axle Mount for Pan Hard Bar

2 - Weld-On Frame Mounts for Pan Hard Bar

4 Link Bar Dimensions:

Tube Has 1.25" Outside Diameter & .156" Thick Wall

All Four Bars Measure 24.00"

(Center To Center Adjusted All The Way In)

Placement: Rear,Left,Right

Features:

1、lightly easier to visualize and install (bar mounts are built together)

2、Can be installed beside frame-rail, inboard or outboard

3、May allow more room for exhaust (no angled upper bars)

4、High Strength Material，Corrosion-resistant Steel Plated Material

5、Universal Compatibility

Notice:

* Please compare the vehicle data, the art images and the part numbers before purchasing.

* We recommend a professional installation, no manual is included.

* For further questions, we are at your disposal.
