Upgrade K04 015 Turbo compatible for VW Passat 1.8T compatible for Audi A4 A6 Quattro Turbocharger

This MaXpeedingRods part is suitable for Audi, Volkswagen applications where stated. Always check part number, year of manufacture, engine code, and fitment before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications, and Compatibility

Application Suitable for Audi A4 A6 Quattro suitable for VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade

suitable for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999

suitable for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999

Suitable for Audi A4 Upgrade 1.8T 1995

Suitable for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999

suitable for Audi A6 Quattro1.8T AEB/ANB/APU/AWT 1999

Suitable for VW Passat 1.8TAEB/ANB/APU/AWT 1999

Suitable for VW Passat 1.8 Tupgrade1999 -OE-/Part number53039880005, 53039700005,

53039880013, 53039700013,

53039880029, 53039700029,

53039880025, 53039700025,

53039880073, 53039700073,

53049880015, 5304-988-0015, 5304 988 0015,

53049700015, 5304-970-0015,5304 970 0015,

058145703L, 058145703LX, 058145703LV,

058145703J, 058145703JX, 058145703JV,

058145703K, 058145703KX, 058145703KV

058145703N,058145703NX , 058145703NV,

058145703Q，058145703QX,058145703QV

058145703B, 058145703C, 058145703D

058145703E, 058145703H,Specifications Compressor :

Wheel Diameter: 50/37.5 mm

Trim: 56

Compressor Inlet: 44.5 mm

Compressor Outlet:50 mm

Blades: 4 x 4blades type

Turbine :

Wheel Diameter: 46/42 mm

Trim: 83.7

Blades: 12 blades

Inlet Flange: 3 Bolt Flange

Outlet Flange: 3 Bolt Flange

Turbo Model: k03 upgraded, K04

Engine： AEB/ANB/APU/AWT/AVJ/BEX

Fuel: Gasoline

Cooling Type：Water & Oil Cooling

Horsepower Rating: 220 HP

Bearing Type:Floating Bearing

Thrust bearings: 270 Degrees

Turbo Type:Individual

Universal Fitment: No

Finish: Polished

Condition: Brand New

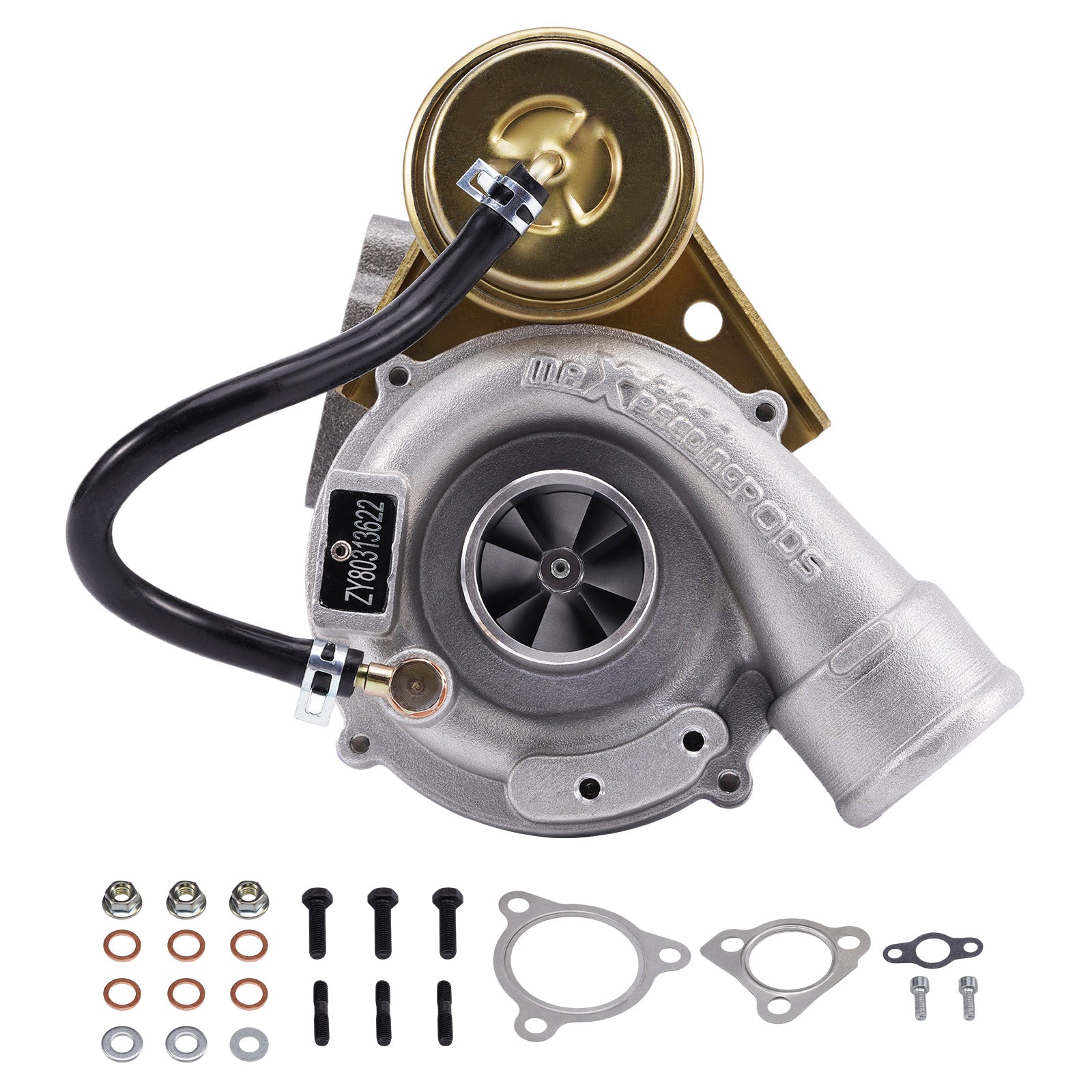

Accessories: You will get exactly as shown in the picture above

Package Weight：5.9 kg

Package Size：26*25*23 cm Package included1x Turbo

1x Oil Port Gasket

2x Flange Gaskets

2x Oil Port Bolts & Washers

3x Stud Bolts & Nuts & Washers

3x Bolts

4x Washers

1x Manual

1x Brochure

1x Sticker Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. K03S upgraded turbine/compressor wheel with higher horsepower.

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
