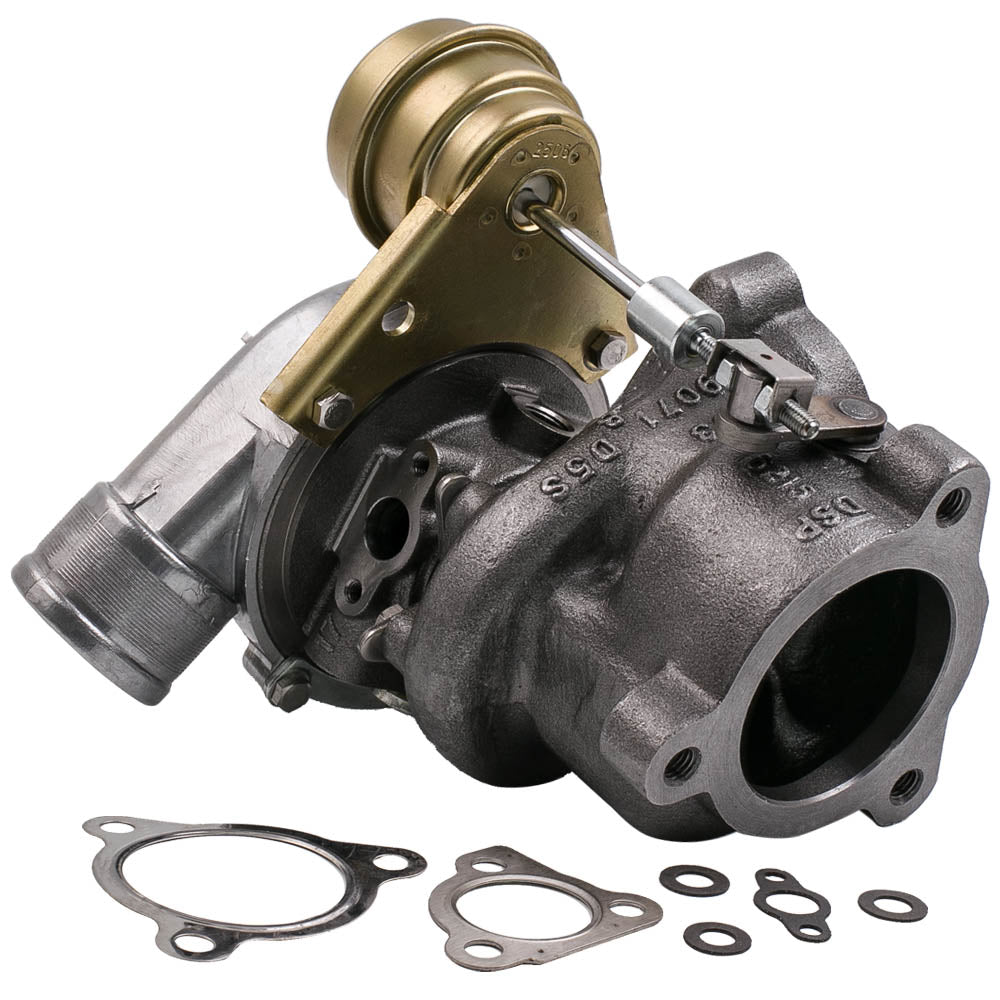

Upgraded K03s K03 Turbo chargers compatible for Audi A4/A6 compatible for VW passat with APU ARK BFB ATW AUG ATW AWM engine 53039880029

This MaXpeedingRods part is suitable for Audi, Volkswagen applications as stated. Always check part number, year of manufacture, engine code and fitment before ordering.

Advantages

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application Suitable for Audi A4 A6 Quattro suitable for VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade

suitable for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999

suitable for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999

Suitable for Audi A4 Upgrade 1.8T 1995

Suitable for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999

suitable for Audi A6 Quattro1.8T AEB/ANB/APU/AWT 1999

Suitable for VW Passat 1.8TAEB/ANB/APU/AWT 1999

Suitable for VW Passat 1.8 Tupgrade1999 -OE-/part number53039880005, 53039700005,

53039880013, 53039700013,

53039880029, 53039700029,

53039880025, 53039700025,

53039880073, 53039700073,

058145703L, 058145703LX, 058145703LV,

058145703J, 058145703JX, 058145703JV,

058145703K, 058145703KX, 058145703KV

058145703N,058145703NX , 058145703NV,

058145703Q，058145703QX,058145703QV，

058145703B, 058145703C, 058145703D，

058145703E, 058145703H,Specifications Compressor :

Wheel Diameter: 50/37.5 mm

Trim: 56

Compressor Inlet: 44.5 mm

Compressor Outlet:50 mm

Blades: 4 x 4blades type

Turbine :

Wheel Diameter: 46/42 mm

Trim: 83.7

Blades: 12 blades

Inlet Flange: 3 Bolt Flange

Outlet Flange: 3 Bolt Flange

Turbo Model: k03 upgraded, K03S

Engine： AEB/ANB/APU/AWT/AVJ/BEX

Fuel: Gasoline

Cooling Type：Water & Oil Cooling

Horsepower Rating: up to 220 HP

Bearing Type:Floating Bearing

Thrust bearings: 270 Degrees

Turbo Type:Individual

Universal Fitment: No

Finish: Polished

Condition: Brand New

Accessories: You will get exactly as shown in the picture above

Package Weight：5750g

Package Size：26*25*23cm Package included1x Turbocharger

2x Flange gaskets

4x Oil/Water port gaskets Features* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -highoxidation stability and resistanceupto 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance

1. K03S upgraded turbine/compressor wheel with higher horsepower.

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICSVSR3

2. G3-min-Flow VNT Turbo testing

3.Advanced Actuator Tester/Programmer Note* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
