For Gt45 T4 Turbine.66 A/r Com1.05 A/r V-band Twin Scroll Turbo Turbocharger New

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, Specifications, and Compatibility

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Application

Perfect for all 4.0L-6.0L engine

Horse Power:Capable of Boost Horse Power up to 600+ BHP

Specifications

Exhaust Inlet Flange: T4 Flange

Exhaust Outlet Flange: 3.25 "Inlet Flange 4.25" Clamp V-Band

Compressor Trim:49.6

Compressor Inducer Diameter:69 mm

Compressor Exducer Diameter:98 mm

Compressor Air Inlet Size: 107mm

Compressor Air outlet Size: 86.3mm

Compressor A/R:0.66

Turbine Trim:77.6

Turbine Inducer Diameter:88 mm

Turbine Exducer Diameter:77.5 mm

Turbine A/R:1.05

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

Bearing Type: Wet Float

Cooling Type: Oil Cooled

Wastegate：Without Wastegate

Hosepower: Up to 600+HP

Turbo Type:Individual

Universal Fitment:No

Finish:Matte

Condition: 100% Brand New

Package Size:30x 30x 27 cm

Package Weight: 16400g

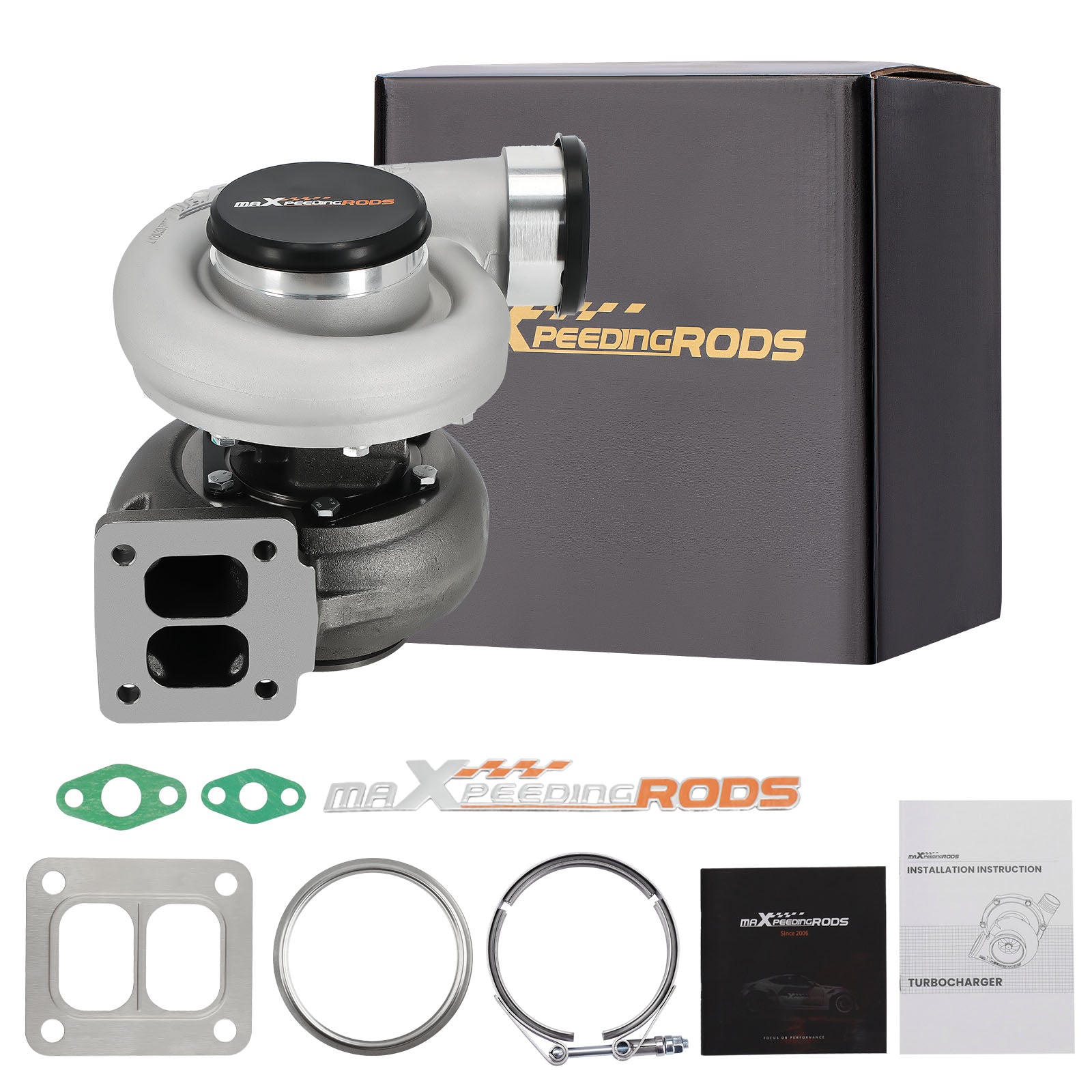

Package included：

1x Turbocharger

1x Adapter

1x Flange gasket

2x Oil port gaskets

1x Manual

1x Brochure

1x Sticker

Features

*Product Material

1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
