Universal Rear Triangulated 4 Link Kit + Brackets 2500 Bags Air Ride Suspension

This MaXpeedingRods part is suitable as a replacement or upgrade part. Always check part number, fitment, and specifications before ordering.

Benefits

• Based on original MaXpeedingRods product information
• Suitable for direct replacement or performance upgrade

Application, specifications and compatibility

Application for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;

Suitable for Ford F150/F250, suitable for GMC Sierra;

Suitable for Chevrolet Silverado;

Suitable for Dodge Ram 1500 2500 3500, etc;

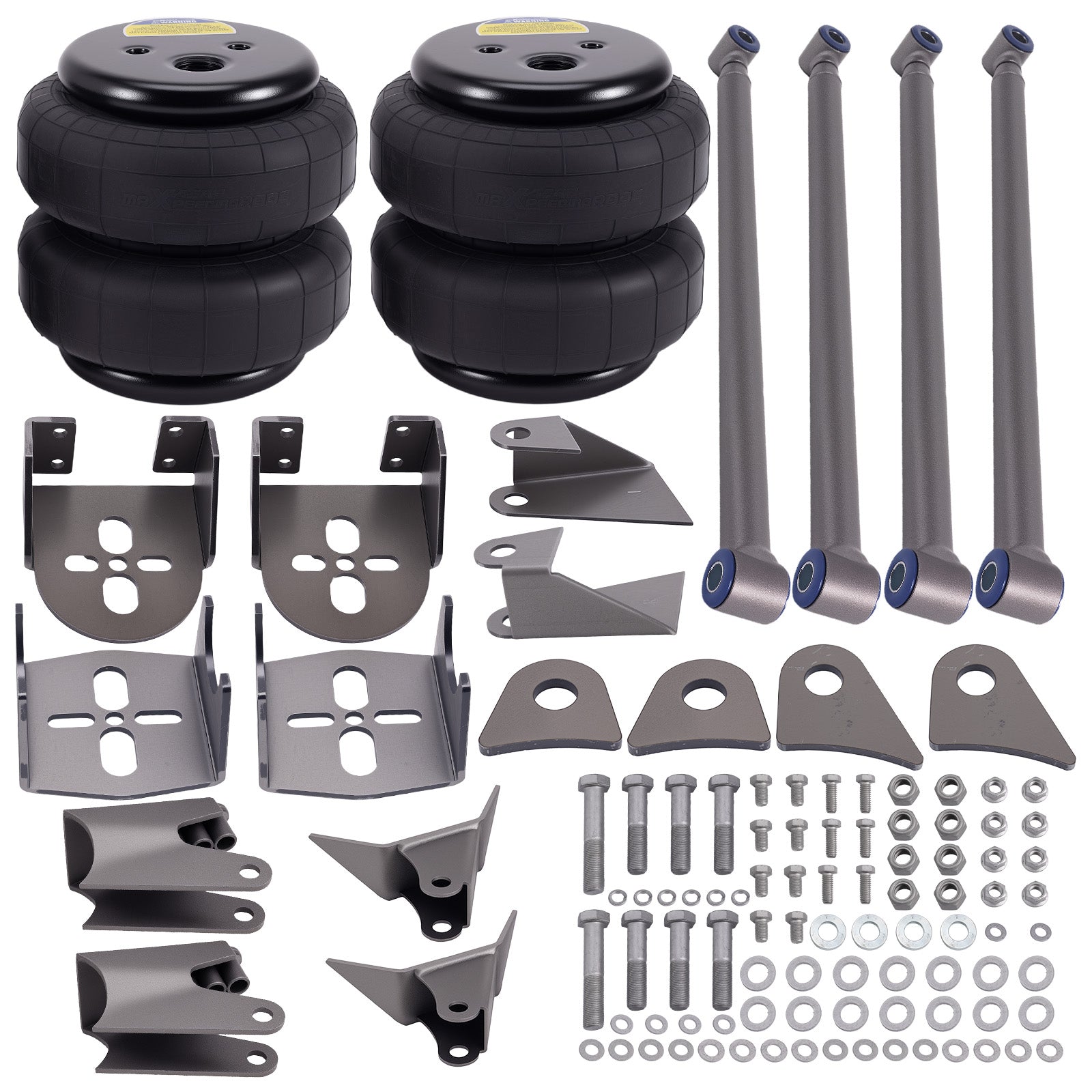

for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.Specifications Included:

4 x Heavy Duty Steel Bars

4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings

2 x Steel, Weld-On Triangulated Frame Mounts

2 x Steel, Weld-On Lower Axle Tube Mounts

4 x Steel, Weld-On Center Link Axle Mounts

2 x Steel, Weld-On Side Frame Mounts

8 x Button Head Bolts with Nyloc Nuts

2 x Weld-On Lower Axle Bag Mount

2 x Weld-On Upper Frame Bag Mount

2x Standard 2500 Single 1/2"npt Port air spring bags

4 Link Bar Dimensions:

Tubing Outside Diameter :1.25"

Tubing Thick Wall :0.197"

All Four Bars :24.00"

(Center To Center Adjusted All The Way In)

Specs of bag:

Diameter: 6"

Extended:8"

Closed:2.75"

Air spring bag capacity: 2500LBS

2 smaller bolt holes diameter: 0.3"

1 bigger bolt hole diameter: 1/2"-14NPT

Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye

Bottom has One Mounting Hole in Center

All mounting holes are 3/8"-16 UNCHaracteristics1、Stress Test Over 5,000,000 Times：Durable and Safe

2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

3、100% Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support.

6、Use high-quality steel with high load-bearing capacity and long life.

7、Excellent and practical bolt-on installation.

8、Safe carrying capacity and stability

9、Restore the original ride height and improve ride quality

10、Ensure our driving comfort and reduce tire wear.

11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.Please note Instructions Are Not Included

We Recommend Professional Installation
