H-Beam Connecting Rods suitable for VW Golf MK4 Passat suitable for Audi TT 1.8T 19mm Pin Con Rod 800hp
H-Beam Connecting Rods suitable for VW Golf MK4 Passat suitable for Audi TT 1.8T 19mm Pin Con Rod 800hp
- * Concurrerende prijs
- * Sneller verzenden
- * Staat: 100% nieuw!
- * Garantie: 1 jaar garantie op eventuele fabricagefouten
- * Accessoires: je ontvangt precies zoals op de afbeelding hierboven!
Product description

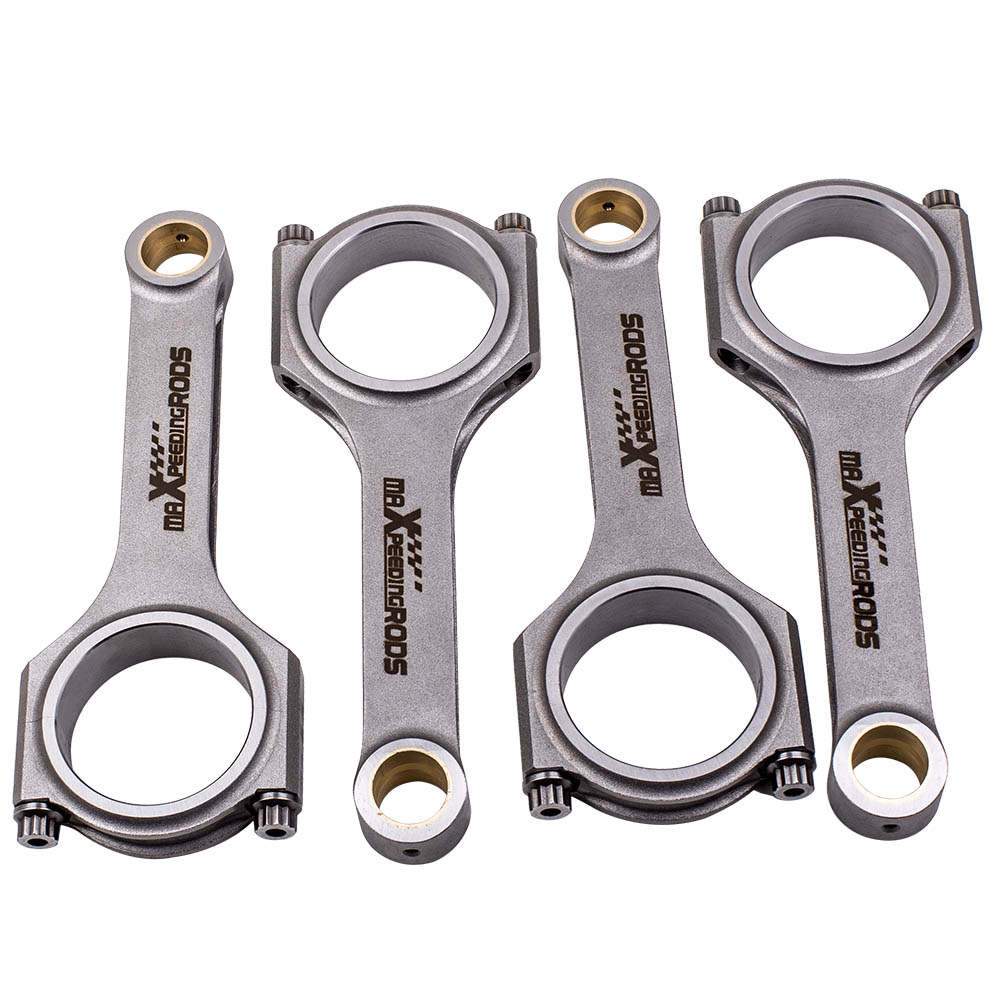

These H-beam connecting rods (19mm pin) are designed for 1.8T engines from VW and Audi.
Suitable for:
- VW Golf MK4 GTI 1.8T (19mm pin)
- VW Golf GTI 1.8T 225 2.0 16V 20V
- Audi A3, A4, A6, S4, TT 1.8 Turbo
- Audi S3, A3, A4, A6, TT 1.8T
- VW Passat, Golf GTI 1.8T 225 2.0 16V 20V
Specifications
- Quantity: 4 pieces, as shown
- Bolts: Genuine ARP 2000 5/16 inch bolts included, rated at 220,000 psi; optional ARP L19 material at 260,000 psi available as an upgrade
- Big end bores: Honed to ±0.0004 inch tolerance
- Small end: Tapered shape
- Rated power: 200 hp per piece
- Warranty: 1 year warranty against manufacturing defects

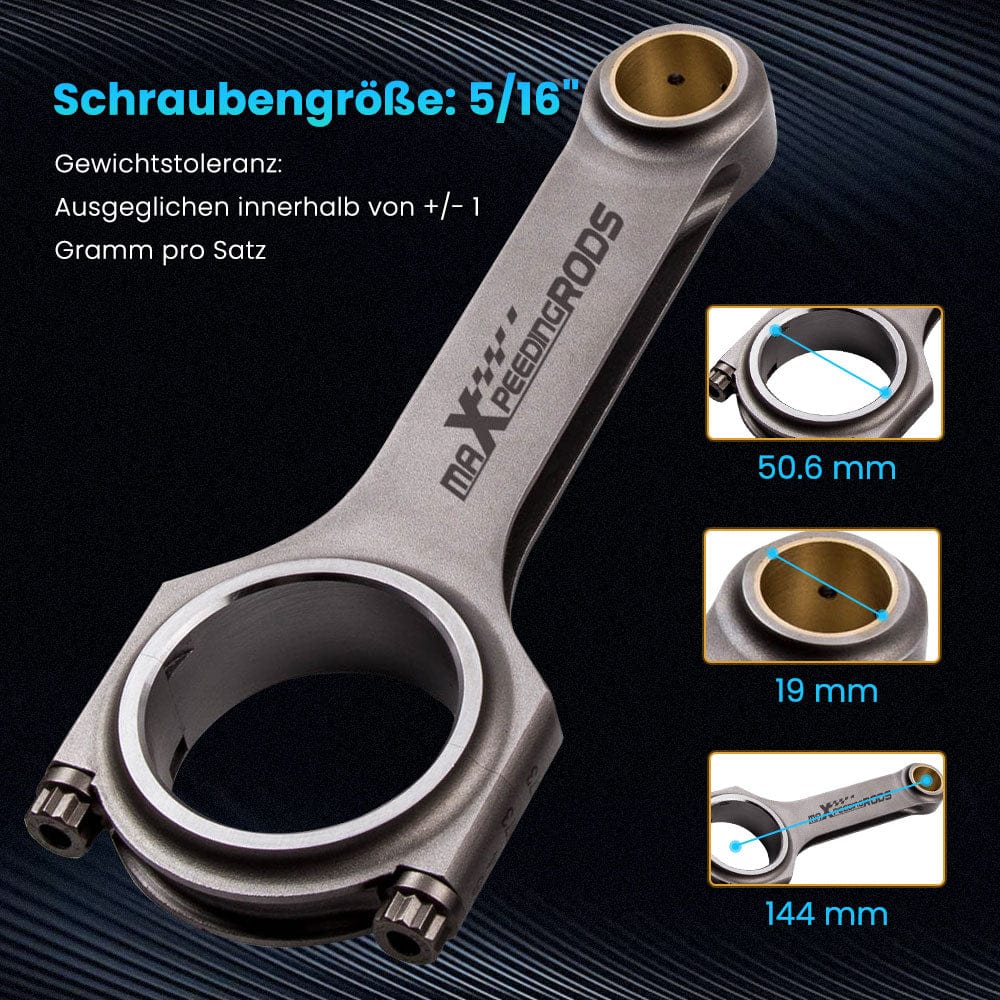

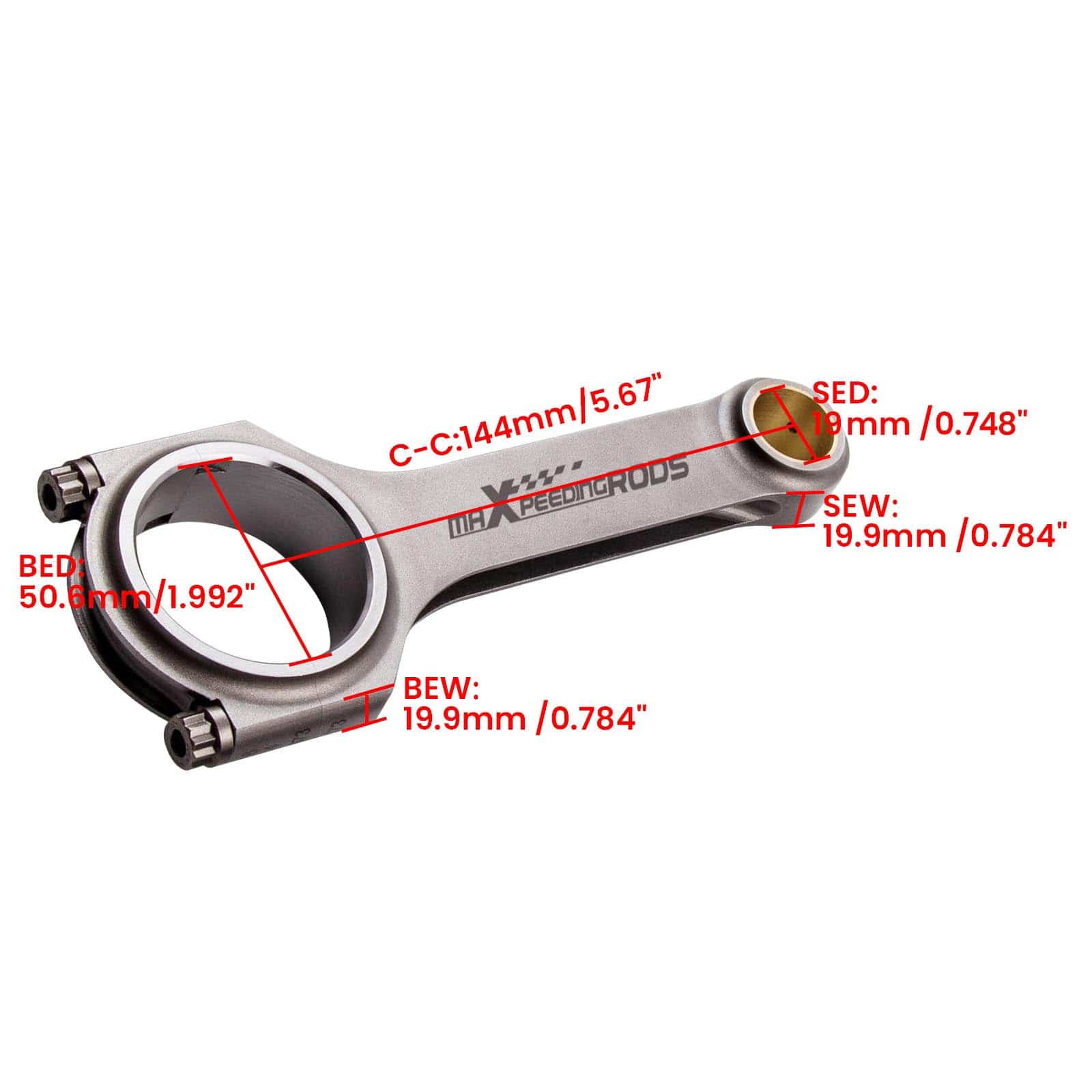

- Center-to-center length: 144 mm / 5.67 inch
- Big end diameter: 50.6 mm / 1.992 inch
- Small end diameter: 19 mm / 0.748 inch (tapered)
- Big end width: 19.9 mm / 0.784 inch
- Small end width: 19.9 mm / 0.784 inch
- Connecting rod thickness: 24.9 mm
Features

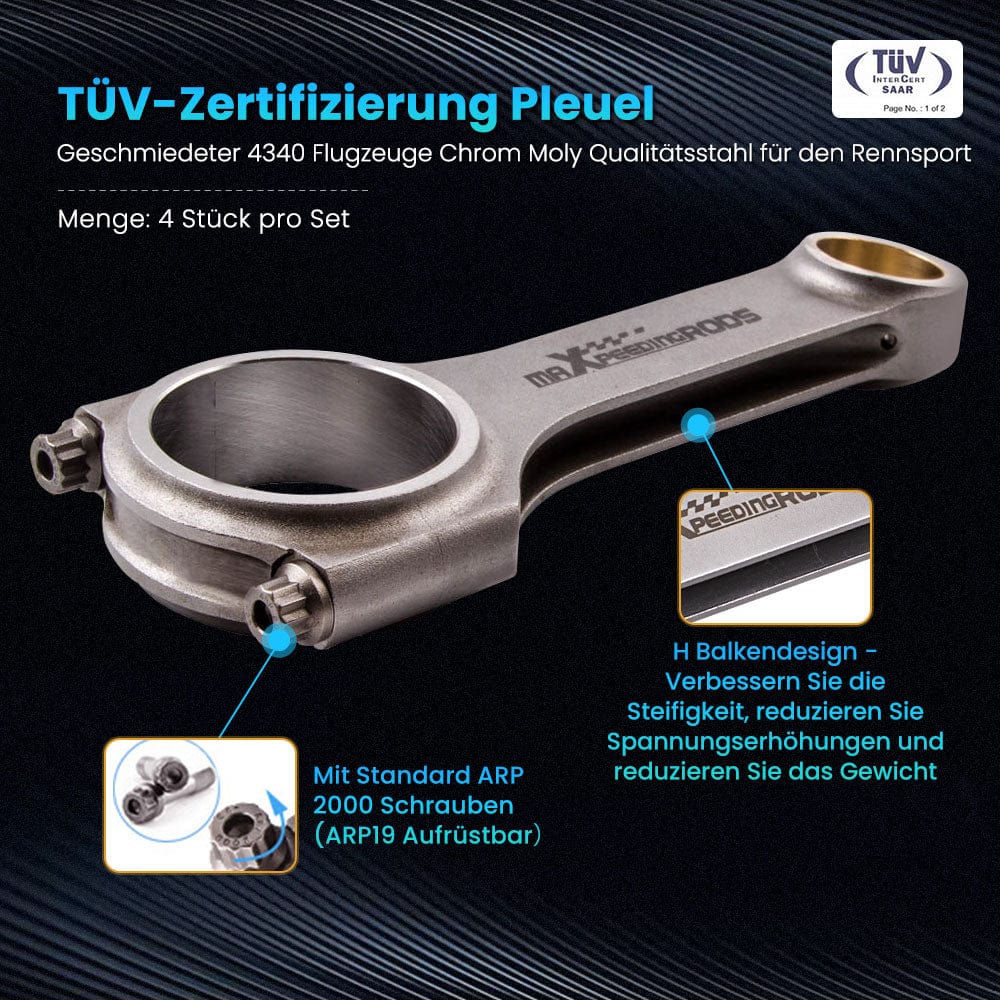

- Material: Forged SAE 4340 chrome-molybdenum steel for maximum strength and durability
- Genuine ARP 2000 bolts; optional ARP L19 bolts as an upgrade
- H-Beam design reduces weight without compromising strength
- Heat-treated and shot-peened for consistency

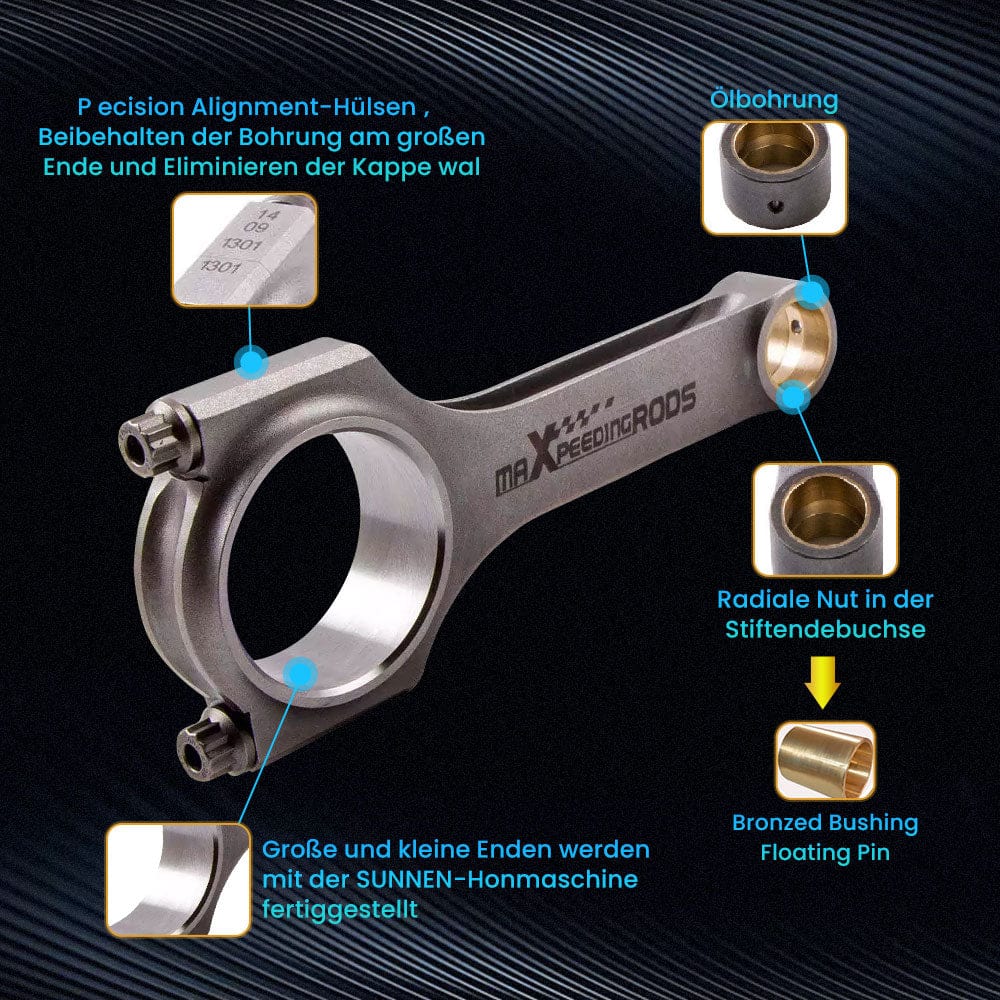

- Precision CNC machined alignment pins on the bearing cap
- Bores finished to ±0.01 mm
- Balanced to ±1g per piece
- Each rod tested with magnetic particles for defects
- 100% X-ray and sonically tested
Please note: upgrade to ARP L19 bolts possible up to 260,000/270,000 psi (from 800hp, surcharge per piece for upgrade to ARP L19 bolts).
Check fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. If you are unsure whether this part fits your vehicle, please feel free to contact us before purchase.
