Product Description

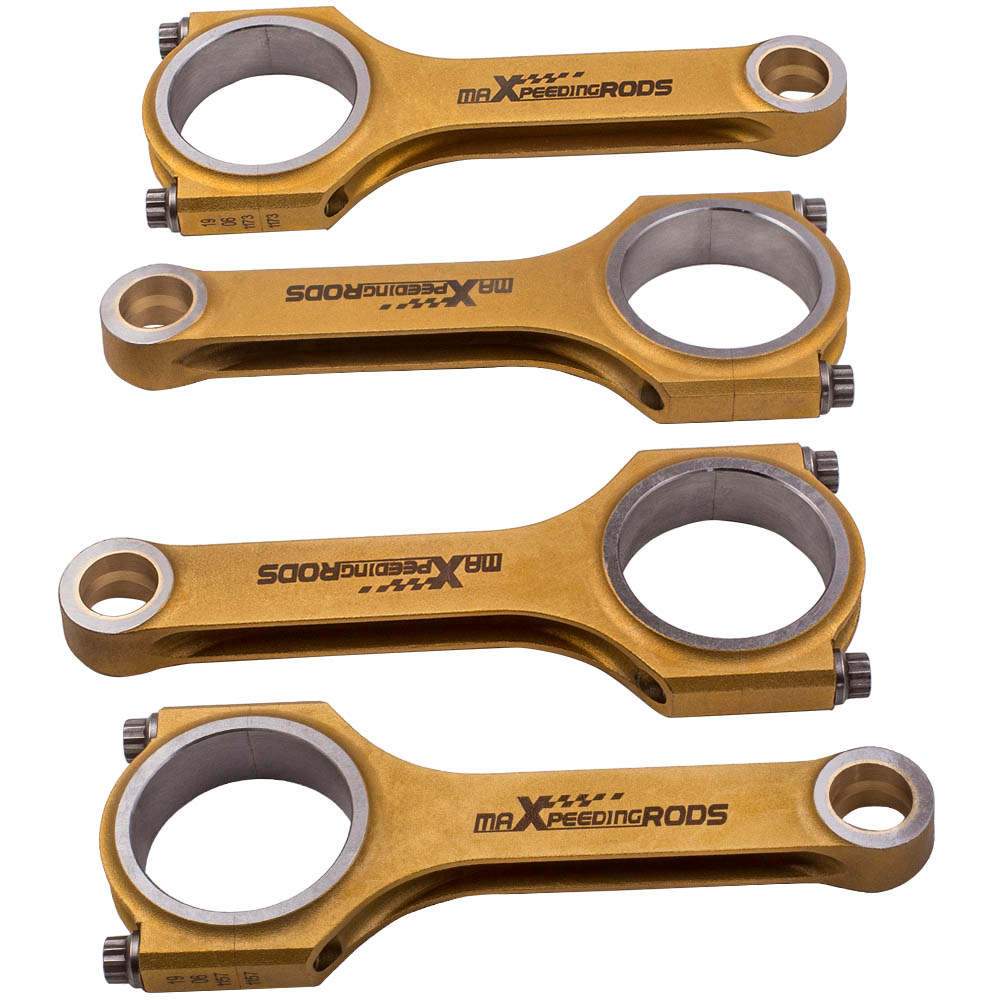

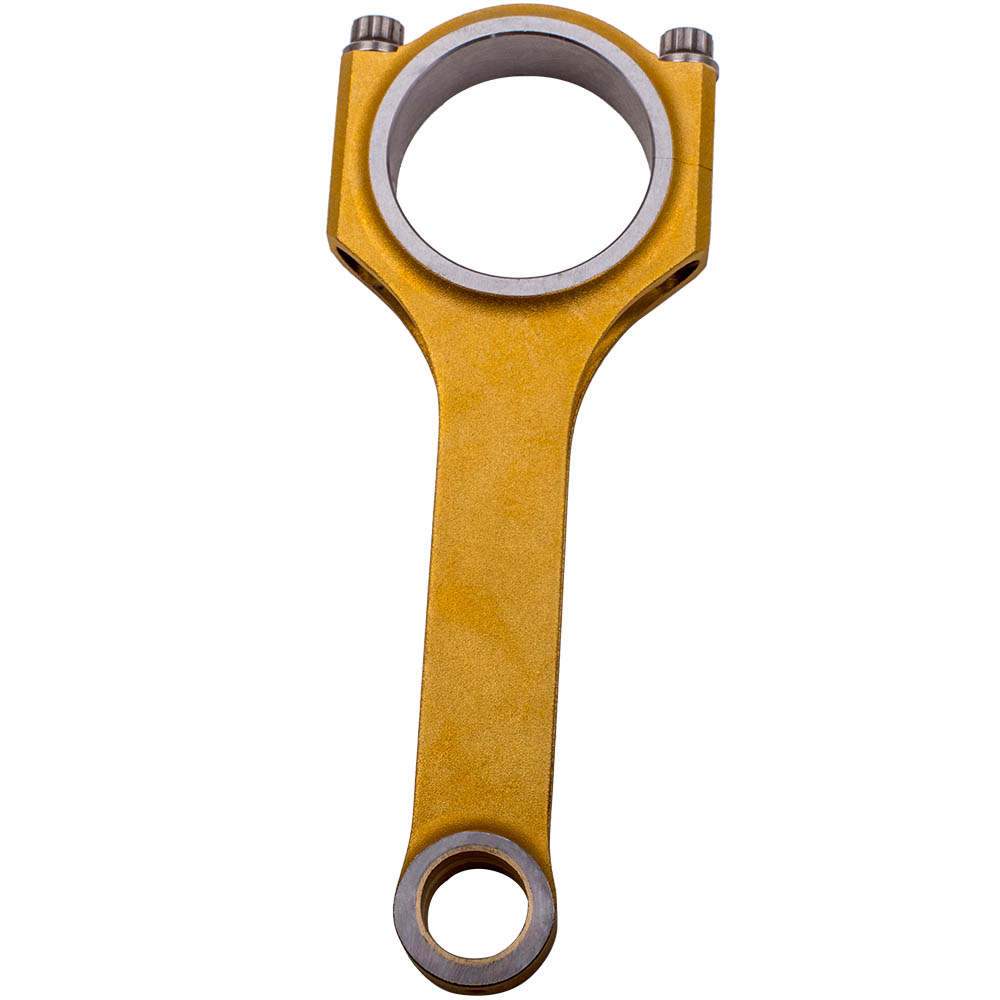

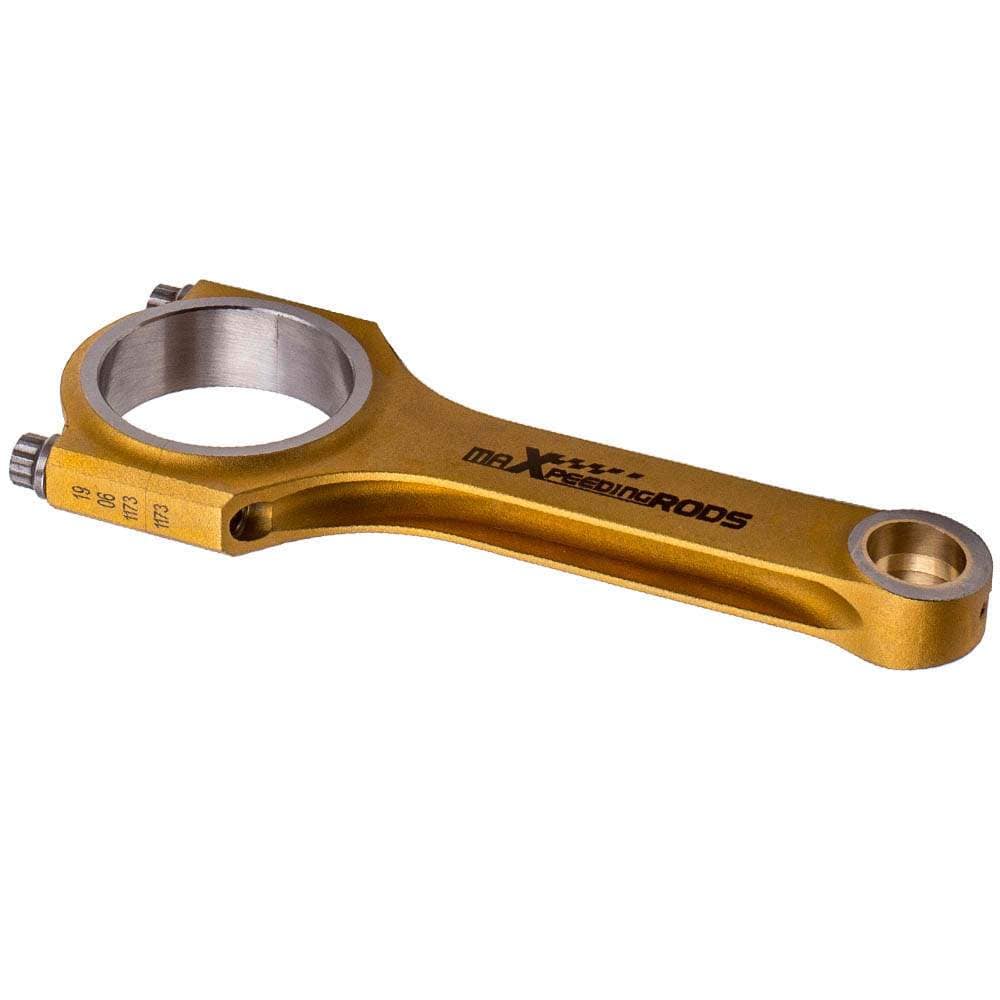

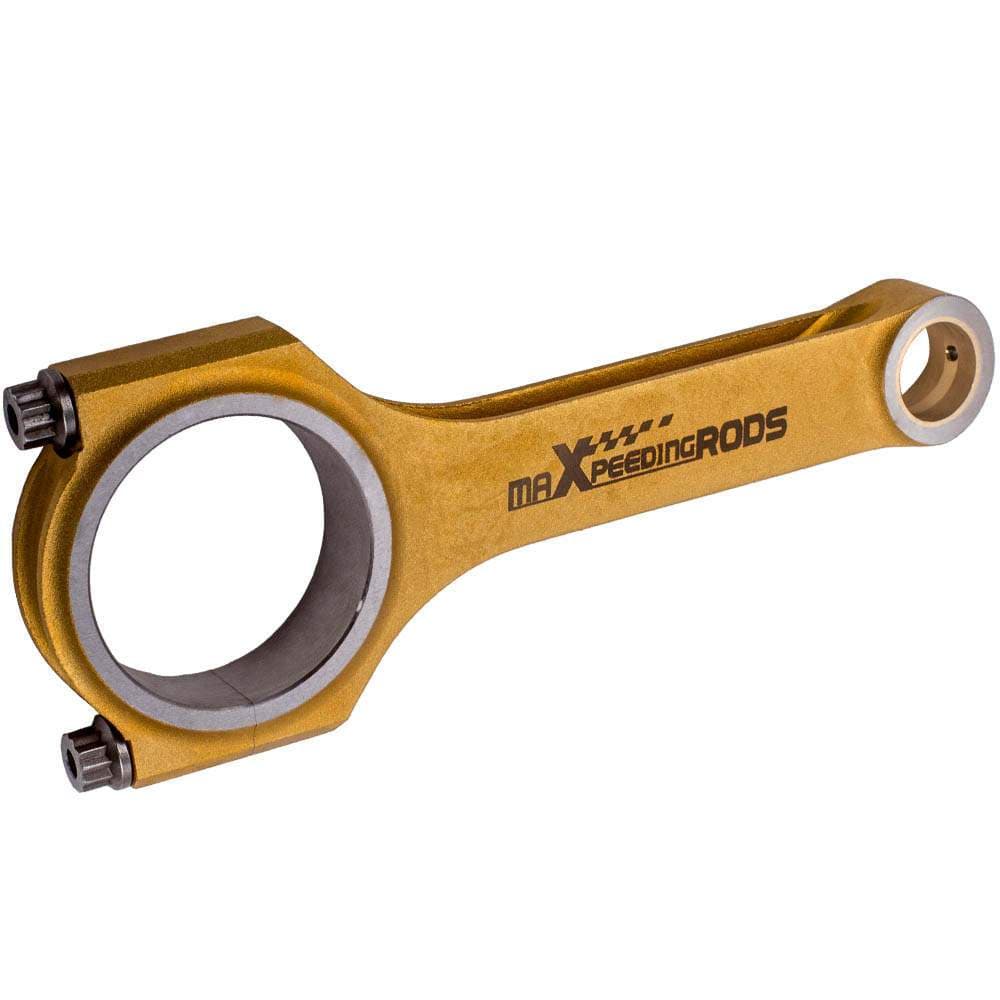

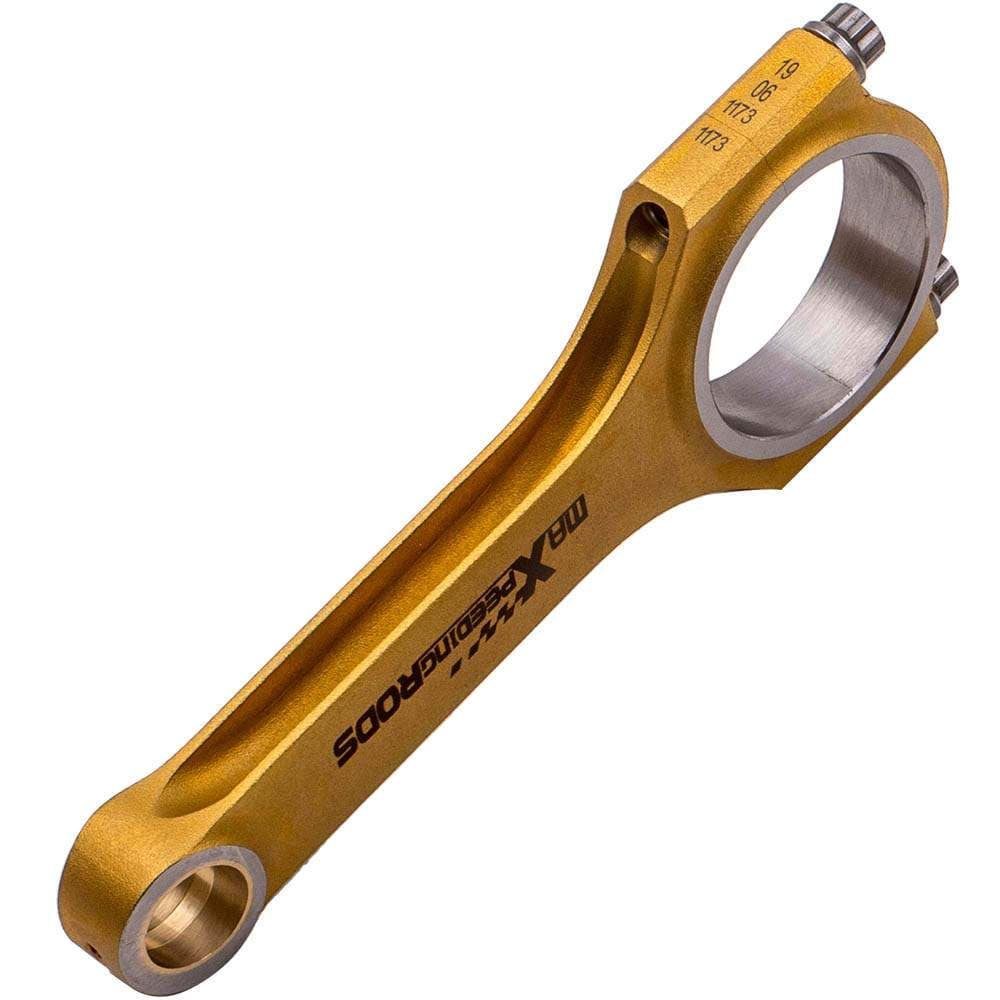

Set of forged racing connecting rods (H-beam) made of chromoly steel, with ARP 2000 bolts.
Suitable for:
- VW Golf GTI 1.8T / 2.0 16V 20V
- Audi A3 8L1 1996-2003 Hatchback 1.8T
- Audi A4 B5 1994-2001 1.8T
- Audi A4 B6 2000-2004 1.8T
- Audi A6 C5 1997-2005 1.8T
- Audi S3 / A3 / A4 / A6 / S4 / TT 1.8 Turbo
- VW Golf MK IV 1997-2006 1.8T
- VW Passat 3B5 1997-2000 Estate 1.8T
Specifications

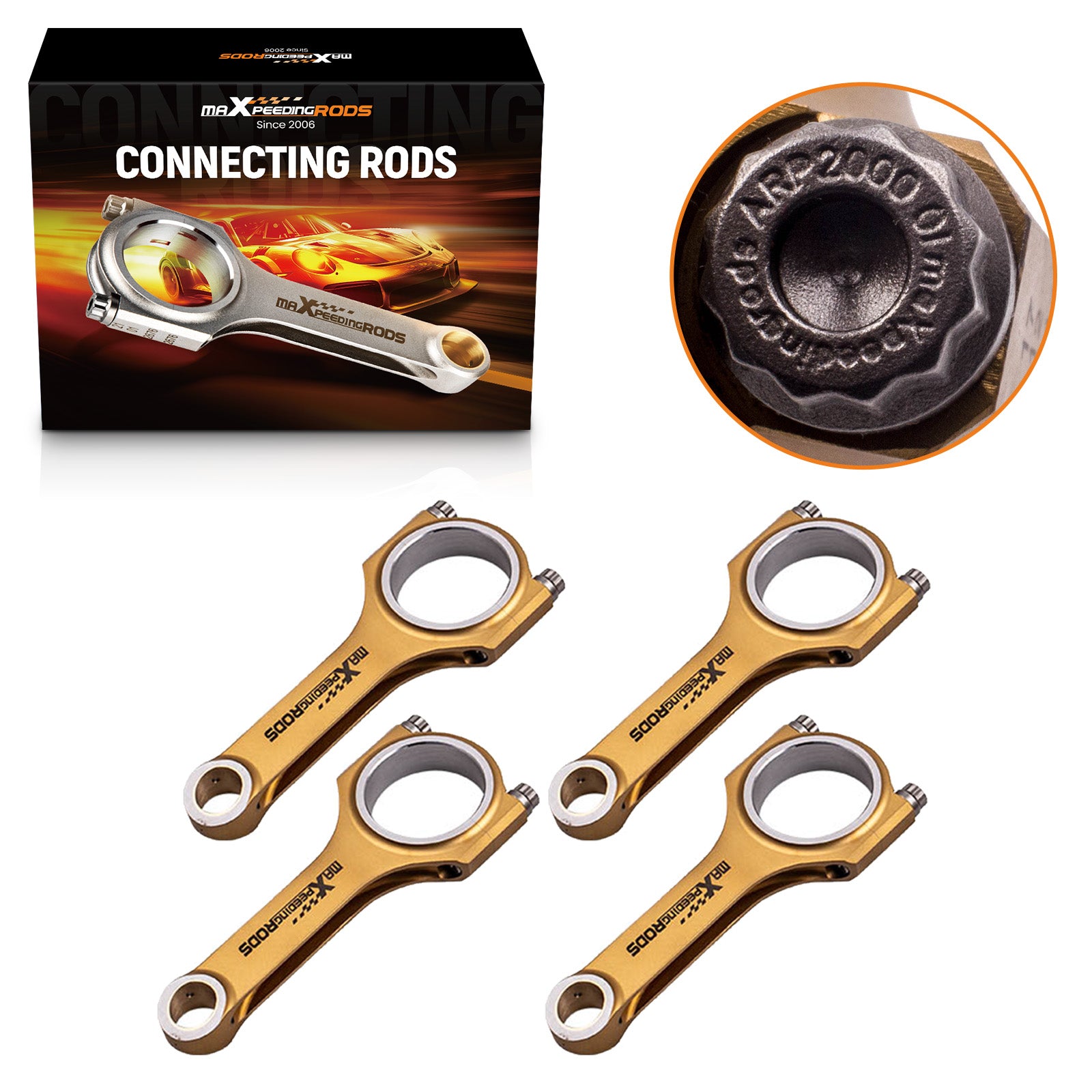

- Quantity: 4 pieces per set + 8 ARP 2000 5/16" bolts
- Material: 4340 EN24 Chromoly Steel
- Weight Tolerance: +/- 1g
- Fastener Strength: 220,000 psi (optional ARP L19 material 260,000 psi)
- Center to Center Length: 144 mm / 5.67"
- Big End Bore Diameter: 50.6 mm / 1.992"
- Small End Bore Diameter: 19 mm / 0.748" (tapered)
- Big End Width: 19.9 mm / 0.784"
- Small End Width: 19.9 mm / 0.784"
Features
- TÜV certified; forged SAE 4340 chromoly steel for maximum strength
- ARP 2000 bolts, optional ARP L19 as an upgrade
- H-beam design saves weight without sacrificing strength
- Heat-treated and shot-peened; 100% CNC machined
- Bores machined to +/- 0.01 mm; balanced to +/- 1g per rod; 100% X-rayed and sonically tested
Please note
Please note: the small end is tapered; check the size carefully. Professional installation is highly recommended; no manual included.
Check Fitment
Before ordering, always check the original OEM part number, year of manufacture, engine code and the version of your vehicle, as there may be differences per version. Are you unsure whether this part fits your vehicle? Please feel free to contact us before purchase.
